Appendix B: Using DURA

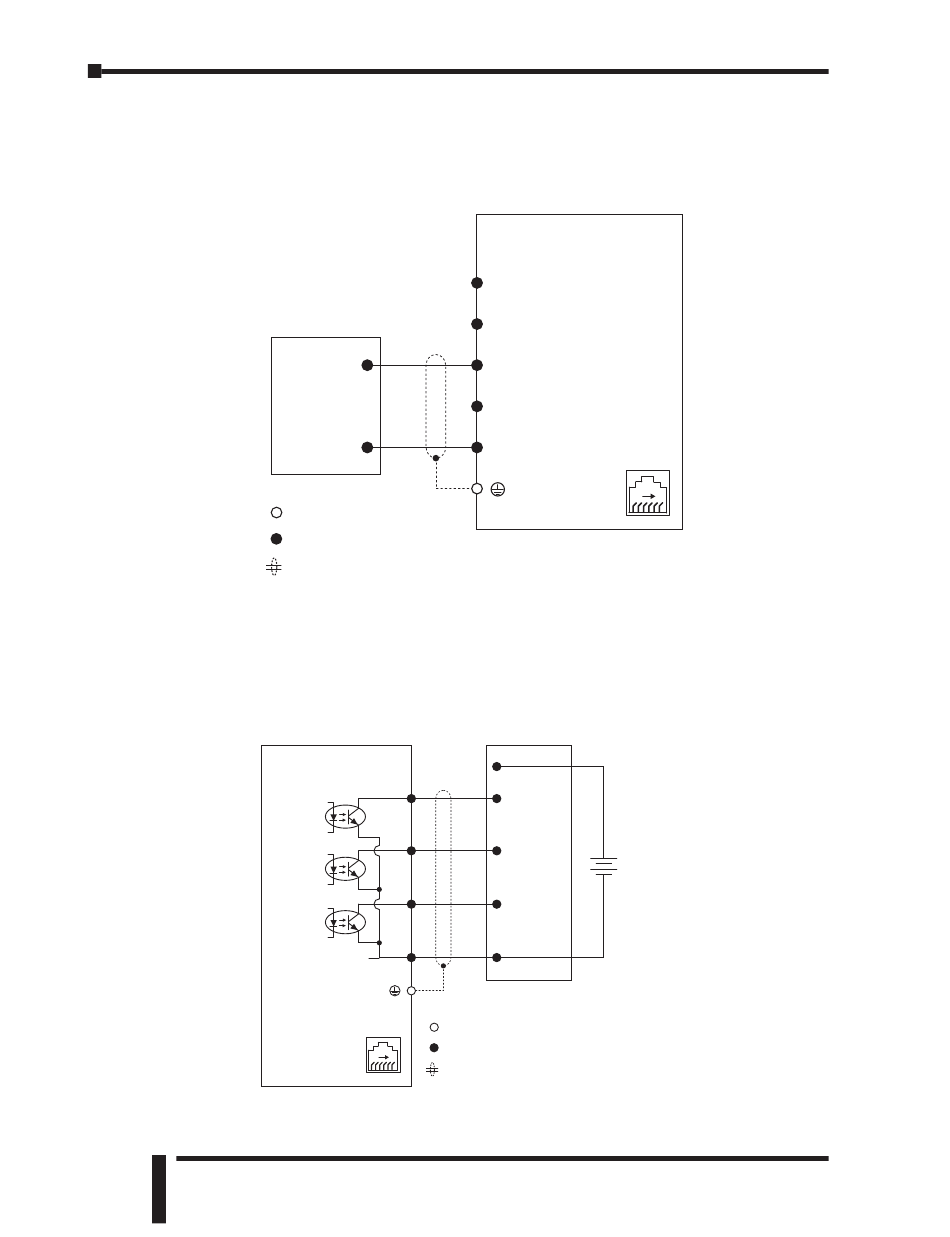

Typical PLC Connections to DURA
CLICK PLC Sourcing Analog Current Output Modules
• C0-02DD1-D
CLICK PLC DC Input Modules
• C0-00DD1-D
• C0-00DD2-D
• C0-00DR-D
B–10 DURA
PULSE
AC Drives with AutomationDirect PLCs
PULSE
CLICK PLC Analog
Current Sourcing Output
I (+)
4 - 20mA
I (–)
Main circuit (power) terminals
Control circuit terminal
Shielded leads
GS3-xxxx
DO1
DO2
DO3
DOC
Digital Output Com.
See Power
Wiring Diag.
6 1
AC Drive User Manual
AC Drives (continued)
PULSE
• C0-02DD2-D
GS3-xxxx
+10V Power Source
(20mA max.)
AI1
(0 to 10V)
AI2
(0-20mA or 4-20mA)
AI3
(-10 to +10V)
ACM
Analog Signal Com.
See Power
Wiring Diag.
• C0-02DD1-D
• C0-02DD2-D
• C0-02DR-D
CLICK PLC
DC Input
+V
1
2
+
–
3
COM
Main circuit (power) terminals
Control circuit terminal
Shielded leads
• C0-02DR-D
6 1
• C0-08ND3
• C0-16ND3
+24 VDC
