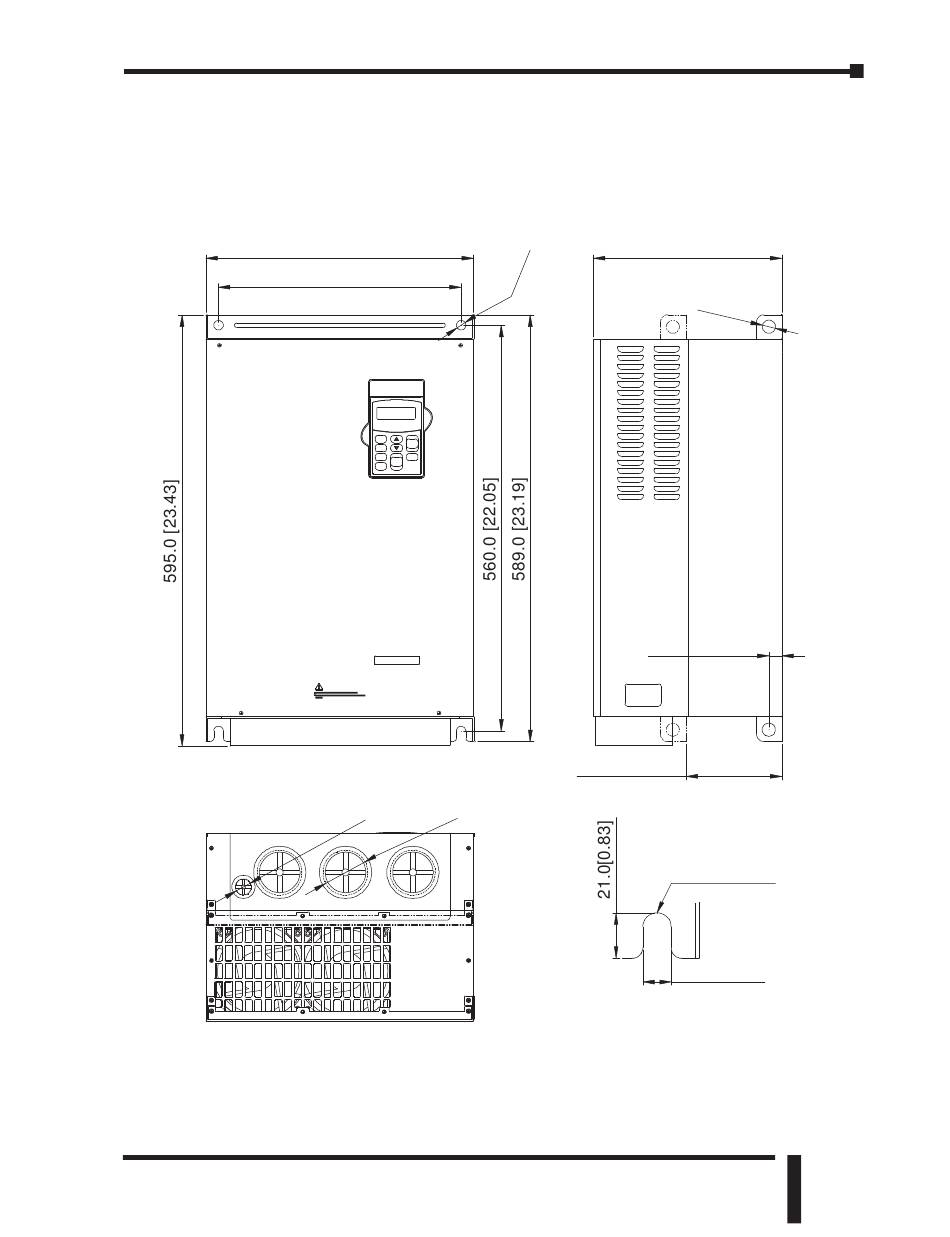

Dimensions (continued)
Frame E
Part Numbers: GS3-2040, GS3-2050
370.0 [14.57]
335.0 [13.19]
1st Ed. Rev. D 05/2013
GS3-4040, GS3-4050, GS3-4060
Dia. 13.0 (0.51)
RUN STOP JOG FWD REV
PROGRAM
ENTER
DISPLAY
FWD/REV
JOG
STOP
RESET
RUN
WARNING
Dia. 22.0(0.87)
Dia. 62.0(2.44)
DURA
Chapter 2: Installation and Wiring
260.0 [10.24]
Dia. 18.0(0.71)
18.0 [0.71]
132.5 [5.22]
R6.5[0.25]
13.0[0.51]
Units: mm [inches]
