Chapter 2: Installation and Wiring

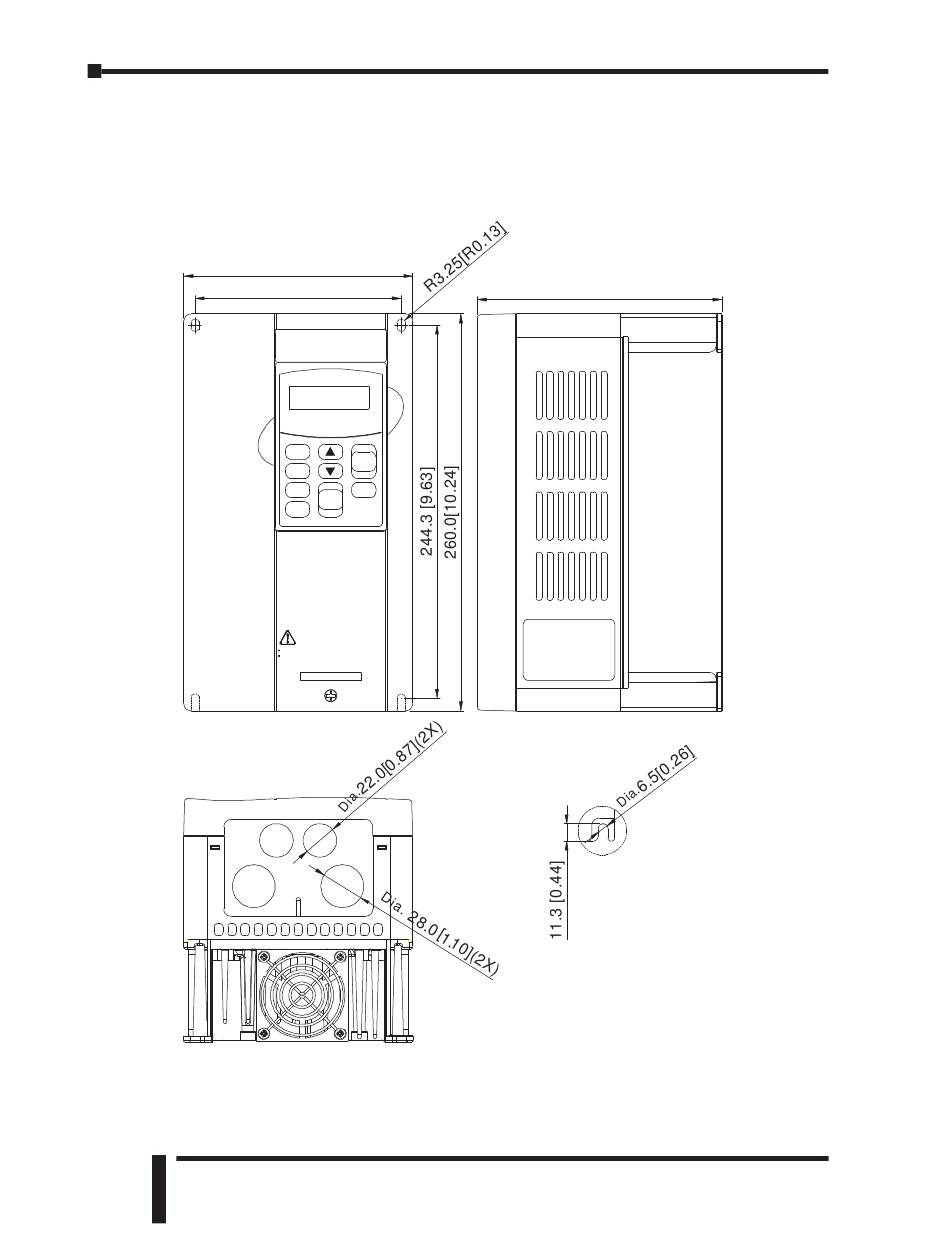

Dimensions (continued)
Frame B
Part numbers: GS3-23P0, GS3-25P0, GS3-45P0
2–6 DURA
PULSE
150.0 [5.91]
135.0 [5.32]
RUN STOP JOG FWD REV
PROGRAM
ENTER
DISPL AY
JOG
FWD/REV
STOP
RESET
RUN
WARNING
Do not connect AC power to output terminals T1,T2 and T3.
Risk of electrical shock. Wait 10 minutes after removing power before
servicing.
AC Drive User Manual
160.2 [6.31]
Units: mm [inches]
