Setting 16: Reset Speed to Zero
This setting allows a Multi-function input terminal to reset the drive output
frequency to zero.
Settings 17 and 18: PID Disable (N.O) and (N.C.)
Settings 17 and 18 set the Multi-function terminals to disable PID operation.
Settings 19* and 20*: 1st/2nd Source Select (N.O.) and (N.C.)
The AC drive runs from the (1st) Source of Operation Command (P3.00) and the
(1st) Source of Frequency Command (P4.00) if the 1st/2nd Source Select signal is
inactive.
The AC drive runs from the 2nd Source of Operation Command (P3.31) and the
2nd Source of Frequency Command (P4.13) if the 1st/2nd Source Select signal is
active.
• Among other uses, these two settings allow the drive operation to be switched
back and forth between local and remote control.

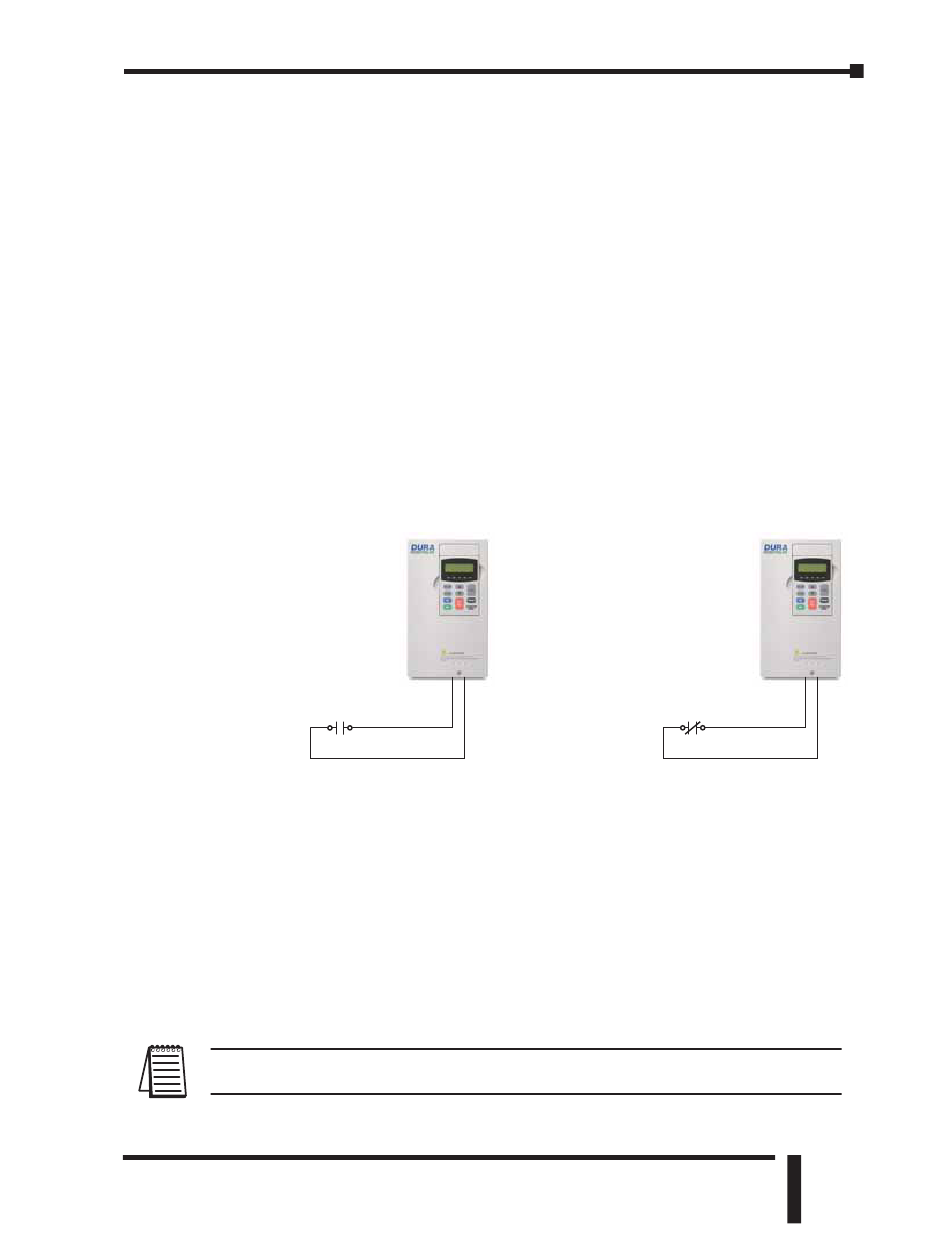

Setting 19
1st/2nd Source Select (N.O.)
P3.02-P3.10
1st/2nd Source Select (N.O.):
Drive selects the 2nd command source
when N.O. contact closes
1st/2nd Source Select
* Parameter settings 19 and 20 are available only with AC drive firmware v1.04 or
higher. Refer to P9.39 to determine the drive's firmware version.
Setting 99: Multi-Function Input Disable
Setting a Multi-Function Input to 99 will disable that input. The purpose of this
function is to provide isolation for unused Multi-Function Input Terminals. Any
unused terminals should be programmed to 99 to make sure they have no effect
on drive operation.
Any unused terminals should be programmed to 99 to make sure they have no effect
on drive operation.
