Chapter 4: AC Drive Parameters
Settings 03, 04, and 05: PID Setpoint Bits 1, 2, 3
Settings 03, 04, 05 and 06: Multi-Speed Bits 1, 2, 3 and 4

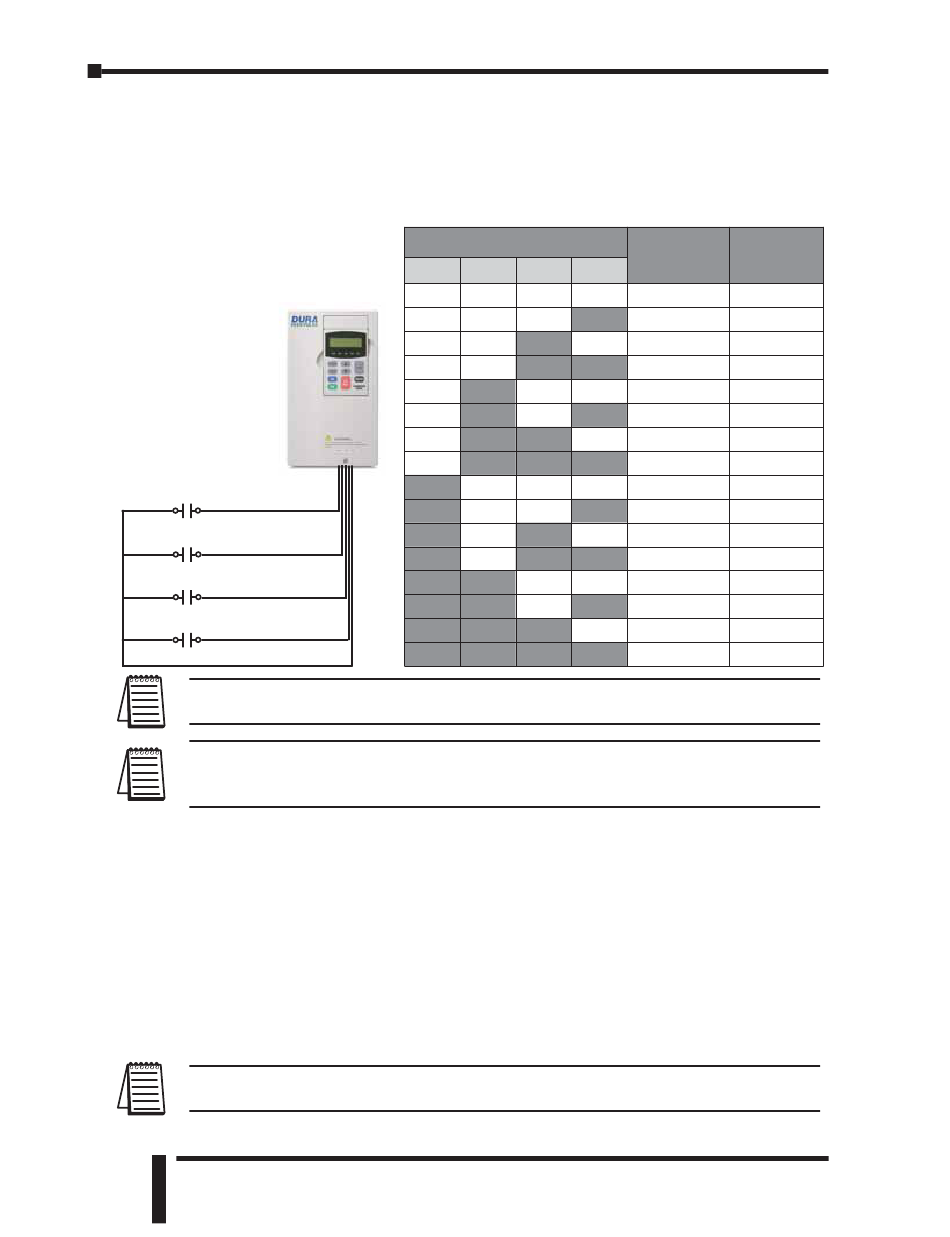

The four Multi-Speed Bits are used to select the multi-speed settings defined by
parameters P5.01 to P5.15. The first three of these bits can also be used to select
a PID setpoint, if PID is enabled (P7.00 ≠ 0.)
03: Mult-Spd/PID SP Bit 1
04: Mult-Spd/PID SP Bit 2
05: Mult-Spd/PID SP Bit 3
06: Mult-Speed Bit 4
In order to use the Multi-Speed settings, P5.01 - P5.15 must be set.
In order to use the Multi-PID SPs, P7.11 - P7.17 must be set, and P7.00 ≠ 0.
When all Multi-Speed inputs are off, the AC drive reverts back to the Command
Frequency (P4.00). When all PID Multi-Setpoint inputs are off, the AC drive reverts
back to the PID Setpoint Source (P7.02).
Setting 07
This setting is used to temporarily switch to the keypad RUN and STOP buttons as
the source of the operation command for run and stop functions. It does NOT
change the source of the frequency command for the speed reference. Useful for
troubleshooting.
Setting 09: Jog Command
This setting configures a Multi-function Input Terminal to run the motor at a preset
speed only while the Jog Input is activated. Set the Jog Speed in P5.00. The Jog
function can be used in combination with a FWD/REV signal (P3.01 = 01 or 02)
to Jog in forward or reverse directions.
The drive must be stopped to initiate this command. The Jog Command cannot be
used simultaneously with an active FWD/STOP, REV/STOP, or RUN/STOP command.
4–32
DURA
PULSE
Multi-Speed / PID SP
Bit 4 Bit 3 Bit 2 Bit 1
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
DI3-DI11
ON
ON
DI3-DI11
ON
ON
DI3-DI11
ON
ON
DI3-DI11
ON
DCM
AC Drive User Manual
Speed
Selection
OFF
OFF
OFF
P4.00
ON
OFF
OFF
P5.01: Spd 1 P7.11: SP 1
ON
OFF
OFF
P5.02: Spd 2 P7.12: SP 2
ON
ON
OFF
P5.03: Spd 3 P7.13: SP 3
ON
OFF
OFF
P5.04: Spd 4 P7.14: SP 4
ON
ON
OFF
P5.05: Spd 5 P7.15: SP 5
ON
ON
OFF
P5.06: Spd 6
ON
ON
ON
P5.07: Spd 7 P7.17: SP 7
OFF
OFF
OFF
P5.08: Spd 8
ON
OFF
OFF
P5.09: Spd 9
ON
OFF
OFF
P5.10: Spd 10
ON
ON
OFF
P5.11: Spd 11
ON
OFF
OFF
P5.12: Spd 12
ON
ON
OFF
P5.13: Spd 13
ON
ON
OFF
P5.14: Spd 14
ON
ON
ON
P5.15: Spd 15
1st Ed. Rev. D
PID SP
Selection
P7.02
P7.16: SP 6
-
-
-
-
-
-
-
-
05/2013
