Encoder Control Output Limit
P10.04
Range: 0.0 to 20.0%
This parameter limits the amount of correction by the encoder proportional and
integral controls (P10.02 & P10.03) on the output frequency when controlling
speed. It can limit the maximum output frequency, and is defined in percent of
maximum output frequency.
Encoder Loss Detection
P10.05
Settings:
00
01
02
This parameter governs the response of the drive to the feedback signals, such as
the analog or encoder pulse signals, when they are performing abnormally.

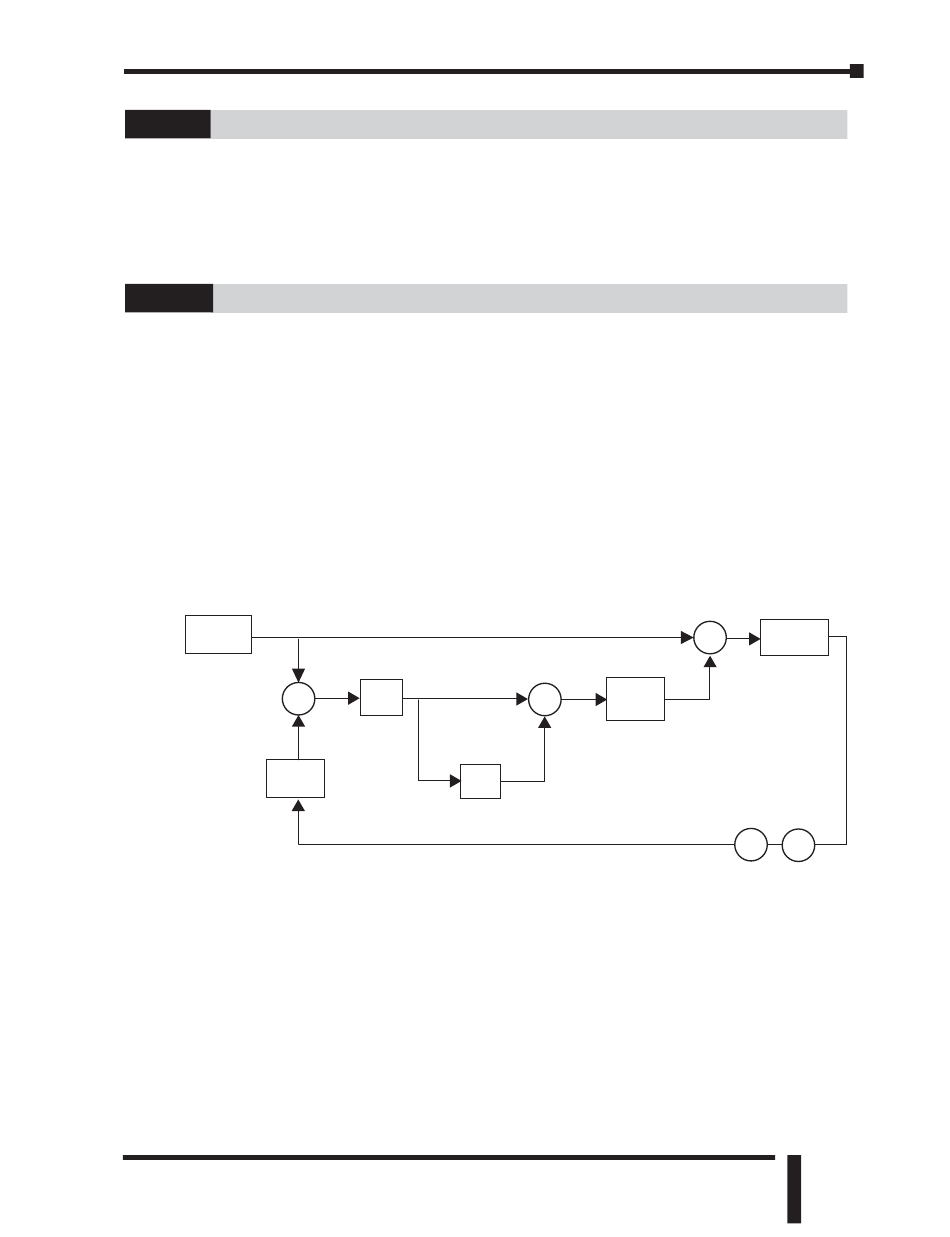

Closed Loop Tuning Diagram (P10.02, P10.03, P10.04)
Frequency
Command
+
_
Encoder
Feedback
1st Ed. Rev. D 05/2013
Warn and continue operation
Warn and RAMP to stop
Warn and COAST to stop
+
P Gain
10.02
+
I Gain
10.03
DURA
Chapter 4: AC Drive Parameters
Output
.
Freq Limit
10.04
PULSE AC Drive User Manual
Default: 7.5
Default: 00
Output
Frequency
+
Encoder Motor
E
M
