AutomationDirect DURAPULSE Series User Manual page 106

Chapter 4: AC Drive Parameters
v Desired Frequency
P3.16
Range: 0.0 to 400.0 Hz

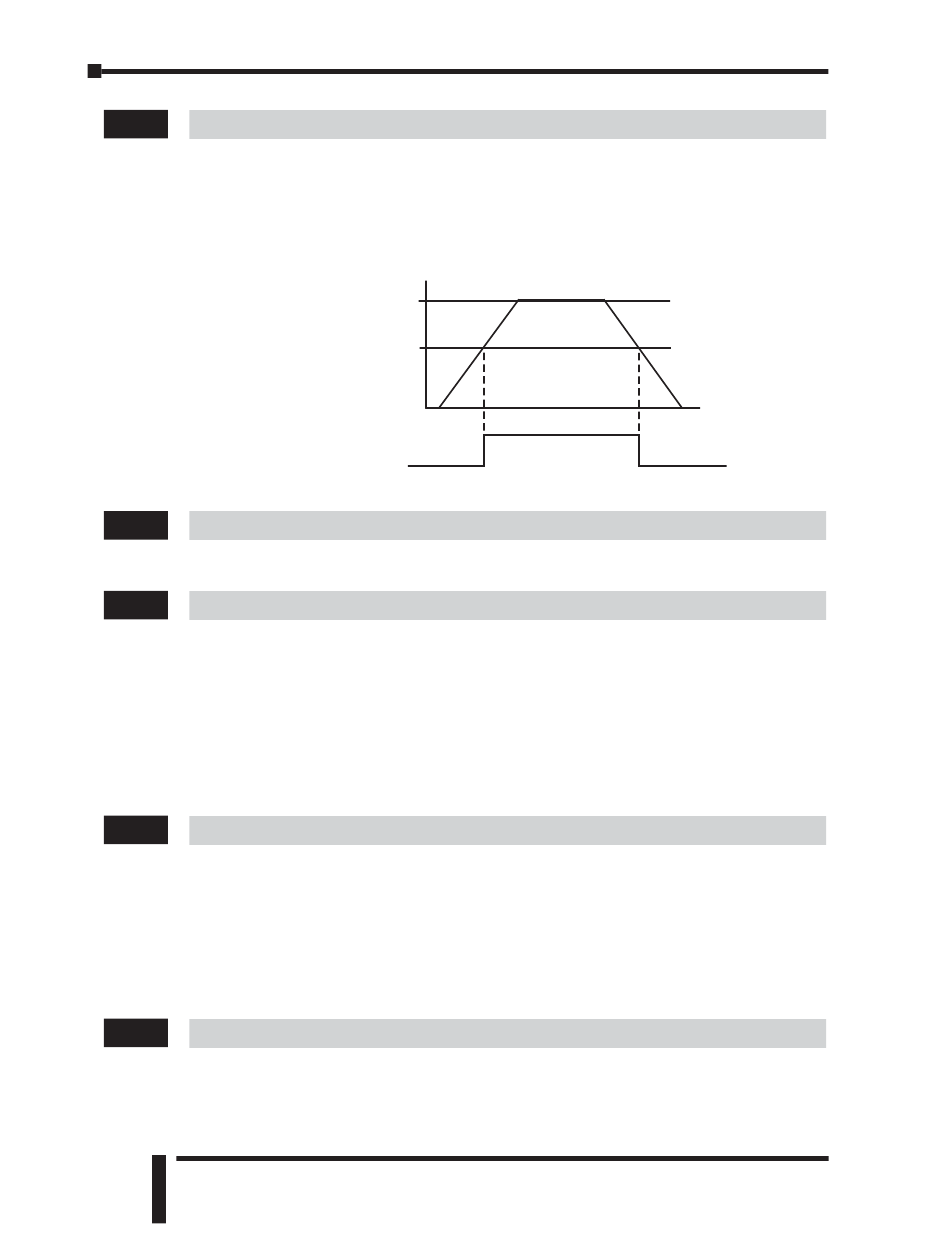

•If a Multi-function output terminal is set to function as Desired Frequency Attained
(P3.11 or P3.12 = 04 or 05), then the output will be activated when the
programmed frequency is attained.
v Desired Current
P3.17
Range: 0.0 to <Drive Rated Amps>
v PID Deviation Level
P3.18
Range: 1.0 to 50.0%
If a Multi-function Output terminal is set to PID Deviation Alarm (RO, DO1-DO3
setting = 10), then the output will be activated when the amount of deviation
between the SP (set point) and PV (process variable) in the PID loop constantly
exceeds the threshold set by this parameter for the period of time set by P3.19.
This is defined in percentage of PV Value (see P7.01).
• This parameter is used in conjunction with P3.19, PID Deviation Time.
v PID Deviation Time
P3.19
Range: 0.1 to 300.0 sec
If a Multi-function Output terminal is set to PID Deviation Alarm (RO, DO1-DO3
setting = 10), then the output will be activated when the amount of deviation
between the SP (set point) and PV (process variable) in the PID loop constantly
exceeds the threshold set by P3.18 for the period of time set by this parameter.
• This parameter is used in conjunction with P3.18, PID Deviation Level.
v Desired Frequency 2
P3.20
Range: 0.0 to 400.0 Hz
4–38 DURA
PULSE
Frequency
Maximum Output
Frequency
Desired Frequency
P 3.16
Desired Frequency
Attained Indication
P 3.11 & P 3.12
AC Drive User Manual
Default Setting: 0.0
Time
OFF
ON
Default Setting: 0.0
Default Setting: 10.0
Default Setting: 5.0
Default Setting: 0.0
1st Ed. Rev. D 05/2013
