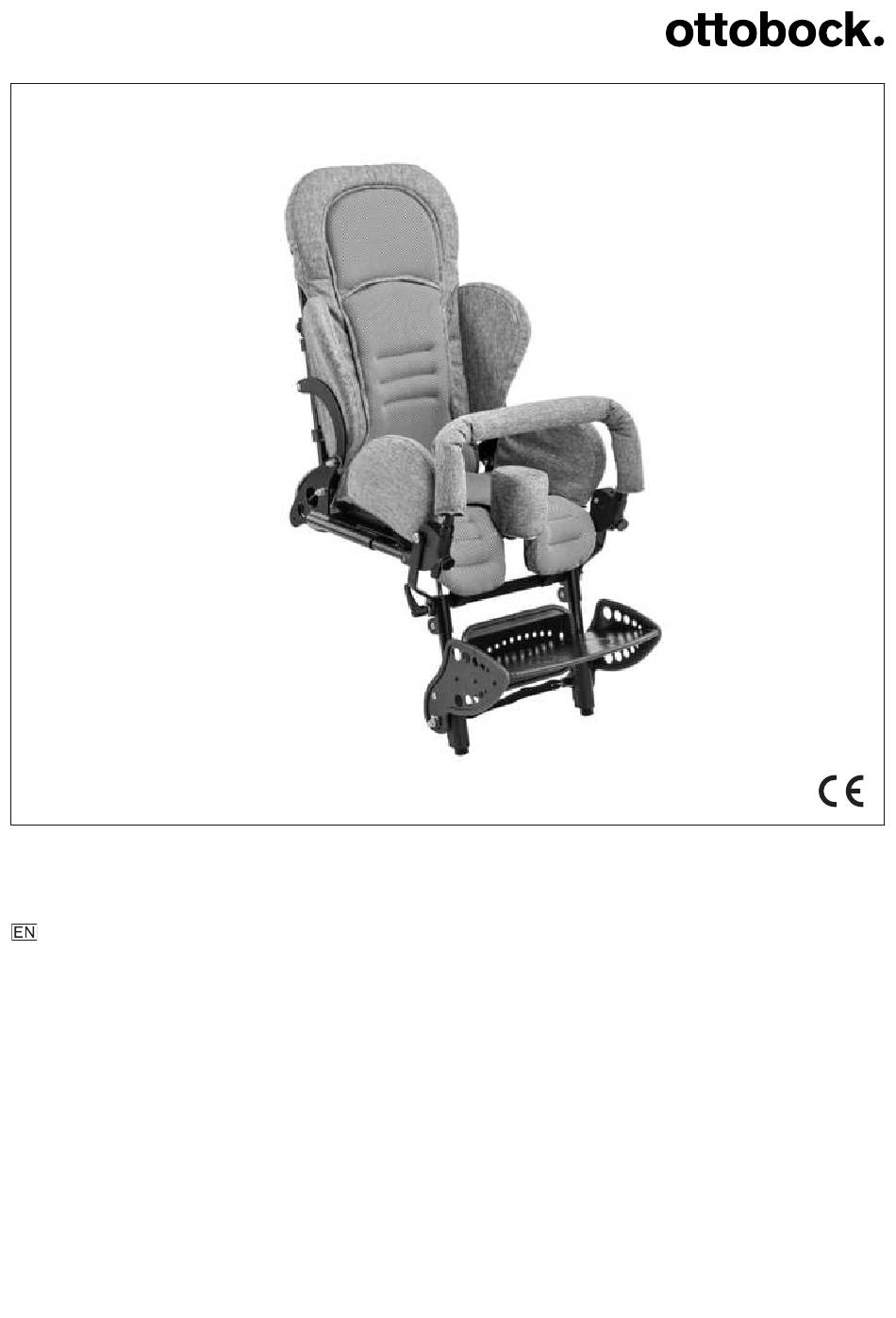

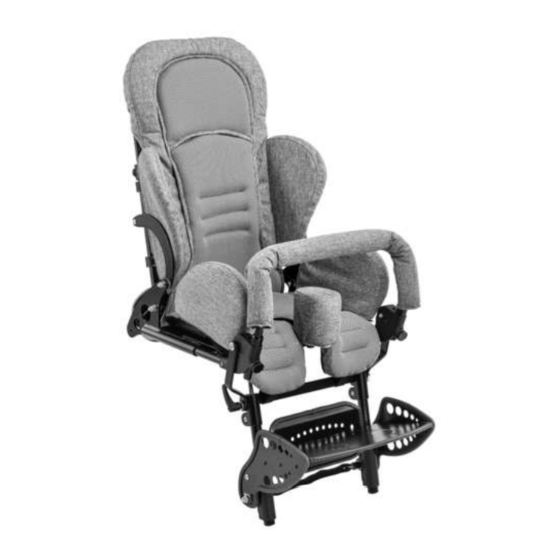

  • Page 1 Kimba Neo Instructions for use (qualified personnel) ..............
  • Page 2 Kimba Neo...

  • Page 3: Table Of Contents

    ........................Tray ..............................Canopy adapter ..........................Rain cover ............................Summer/winter slip sack ........................6.10 Seat insert, small ..........................6.11 Delivery without padding ........................6.12 Frame padding ........................... 6.13 Padding for the leg support ........................6.14 Anti-slip lining ............................. Kimba Neo...
  • Page 4 Foam wedges for individual seating positions ..................6.16 Incontinence cover ..........................Settings ................................Prerequisites ............................Basic functions of the Kimba Neo seating unit ..................7.2.1 Adjusting the seat depth ........................7.2.2 Adjusting the seat width ........................7.2.3 Adjusting the back support height ......................

  • Page 5: Foreword

    (see inside or outside of rear cover for addresses). 3 Safety 3.1 Explanation of warning symbols Warning regarding possible serious risks of accident or injury. WARNING Warning regarding possible risks of accident or injury. CAUTION Warning regarding possible technical damage. NOTICE Kimba Neo...

  • Page 6: General Safety Instructions

    Instructions for use for accessories (depending on equipment) 4.2 Options The functionality and operation of the options are described in more detail in the instructions for use (user). All of the available options/accessories are listed on the order form. Kimba Neo...

  • Page 7: Storage

    The seating unit can be mounted on the mobility base in 2 directions: • In the direction of travel (see fig. 1, example for outdoor mobility base) • Opposite to the direction of travel (see fig. 2, example for outdoor mobility base) Kimba Neo...
  • Page 8 4) Check that the seating unit and the mobility base are securely connected. Do this by pulling back the back sup­ port. → The seating unit must remain firmly on the mobility base. c) Removing the seating unit For information about removing the seating unit, please see the instructions for use (user) (section "Remov­ ing/attaching the seating unit"). Kimba Neo...

  • Page 9: Mounting The Padding

    1) Attach the pad with the hook-and-loop fastener (see fig. 9). 2) Push the pad under the support pads at the sides (see fig. 8). 6 Installing options/accessories INFORMATION Please also observe the adjustment instructions in the section "Settings" (see Page 31 ff.). Kimba Neo...

  • Page 10: Headrests

    3) Align the shaped plate so the bore holes of the shaped plate and the adapter are in a straight line (see fig. 12, see fig. 13). 4) Insert and tighten the Allen head screws to 5 Nm. 5) Check that the support is securely attached. INFORMATION: For information on adjusting the angle of inclination, see Page 34. Kimba Neo...

  • Page 11: Mounting The Head Support Holder

    3) Push the connecting bridges together (see fig. 15, item 2). 4) Put on a washer (see fig. 16, item 1) and screw the connecting bridges together using the thumbscrew (see fig. 17, item 1). 5) Mount the assembly on the back support (see Page 11). Kimba Neo...

  • Page 12: Positioning Belts

    3) Put on the washer and cap nut from the inside. Do not fully tighten yet. 4) Position the strap guide so the D-ring lies over the large bore hole (see fig. 18, no. 1). 5) Tighten the washer and cap nut. Kimba Neo...

  • Page 13: Lap Belts

    8) Pull the end of the belt through the buckle (see fig. 21, no. 1). → If the buckle (see fig. 20, no. 4) can be closed when it lies in the centre of the seat, the lap belt has been moun­ ted properly. Kimba Neo...

  • Page 14: Two-Point Lap Belt With Plastic Buckle

    5) Thread the ends of the belt through the 3-slot mounting brackets (see fig. 28). Adjust the belt length and tight­ en the belt. 6) If necessary, cut off protruding belt ends and seal the loose ends by applying heat (e. g. with a lighter). Kimba Neo...

  • Page 15: Four-Point Lap Belt With Plastic Buckle

    Installing options/accessories 6.2.2.3 Four-point lap belt with plastic buckle 4-point lap belt Mounting material Upper belts 3-slot mounting brackets, 50 mm Positioning belts Kimba Neo...
  • Page 16 5) Thread the ends of the belt through the 3-slot mounting brackets (see fig. 28). Adjust the belt length and tight­ en the belt. 6) If necessary, cut off protruding belt ends and seal the loose ends by applying heat (e. g. with a lighter). Kimba Neo...

  • Page 17: Four-Point Belt

    5) Mount the lap belt (see fig. 32, no. 4) (see Page 13). → If the buckle (see fig. 32, no. 7) can be closed when it lies in the centre of the seat, the four-point belt has been mounted properly. Kimba Neo...

  • Page 18: Five-Point Belt

    Mounting shoulder straps 1) Rivet the clips (see fig. 35, no. 1) in the bore holes of the back support frame (see fig. 33, no. 2). 2) Thread the shoulder straps (see fig. 35, no. 2) through the back support pad and back support (see fig. 34). Kimba Neo...
  • Page 19 2) Thread the crotch belt twice through the stop plate (see fig. 35, no. 10) and back up through the seat plate (see fig. 40, no. 2). 3) Thread the crotch belt through the adjustment clasp again (see fig. 41, no. 1). Kimba Neo...

  • Page 20: Positioning Aids

    2) Put the mounting screws respectively through the slotted hole in the thoracic support and the back support (see fig. 42, item 1; see fig. 43, item 1). 3) Fasten the thoracic supports on the rear of the back support using wing nuts. 4) If necessary, adjust the width and height. Firmly tighten the wing nuts. Kimba Neo...

  • Page 21: Abductor

    INFORMATION: When using a slip sack, make a cut in it in the specified spot (see Page 28), insert the slip sack and fasten the pommel with screws. 3) Adjust the depth of the pommel if necessary (see fig. 46, arrow). 4) Screw the pommel extension and pommel together firmly. Kimba Neo...

  • Page 22: Sternum Strap

    Lower attachment straps Sternum strap Installing the sternum strap 1) Mount the pairs of clip buckles (see fig. 48, item 1) using mounting screws and wing nuts in the slotted holes of the back support (see fig. 49, item 1; see fig. 50, item 1). Kimba Neo...

  • Page 23: Positioning Vest

    ► To put the product on and adjust it correctly, follow the information in these instructions for use so that the user cannot slide into a hazardous position. INFORMATION Note the instructions for use and possible application errors (see Page 17, four-point belts), which apply here too. Kimba Neo...
  • Page 24 4) Run the middle and bottom attachment straps (see fig. 51, no. 3, 4) around the back support tubes to the rear and secure them in the clips (see fig. 51, no. 1) (see fig. 53, no. 3). 5) If necessary, cut off protruding belt ends of the attachment straps and seal the loose ends by applying heat (e. g. with a lighter). Kimba Neo...

  • Page 25: Groin Strap

    4) Thread the belt ends of the long attachment strap (see fig. 54, no. 4) around the back support to the rear and secure them in the clips (see fig. 56, no. 3). 5) If necessary, cut off protruding belt ends of the long attachment strap (see fig. 56, no. 4) and seal the loose ends by applying heat (e.g. with a lighter). Kimba Neo...

  • Page 26: Neck Support

    5) Pull the back support pad with its cap over the back support and close the zipper. 6.3.9 Hook-and-loop foot straps Attach the hook-and-loop foot straps to the supporting surface of the leg support in the heel area using rivets or screws (see fig. 62). Drill appropriate holes in the supporting surface for this purpose. Kimba Neo...

  • Page 27: Standard Arm Supports

    (user). If the canopy adapter was included, it is installed as follows: 1) Remove the back support pad and support pads from the frame tubes of the back support insert. Kimba Neo...

  • Page 28: Rain Cover

    (see fig. 67, no. 3). 2) Fasten the attachment cords (see fig. 67, no. 4) depending on the attachment situation: → Rear: e. g. on the seat plate (see fig. 68, no. 1) → Front: e. g. on the leg support tube (see fig. 68, no. 2) Kimba Neo...

  • Page 29: Seat Insert, Small

    Note that the Kimba Neo seating unit always has to be delivered and used with padding. 6.12 Frame padding For mounting information, see the instructions for use of the Kimba Neo, Kimba Cross and Kimba Inline outdoor mobility bases – reference number 647G891.

  • Page 30: Foam Wedges For Individual Seating Positions

    6) Reattach the seat pad to the hook-and-loop fastener. 6.16 Incontinence cover The installation is usually carried out by the user's attendant. For mounting information, see the instructions for use (user). Kimba Neo...

  • Page 31: Settings

    7.2 Basic functions of the Kimba Neo seating unit INFORMATION The product can be equipped with the Kimba Neo seating unit or alternative seating systems. In this case, please observe the information in the separate instructions for use for the seating system.

  • Page 32: Adjusting The Seat Width

    2) If necessary: Loosen the thoracic supports. Loosen the wing nuts to do so. 3) Slide the back support tubes evenly to the desired height. 4) If necessary: Firmly reinstall the thoracic supports. 6) Tighten the set screws. Kimba Neo...

  • Page 33: Further Settings

    1) Open the zipper of the padding cap (see fig. 6) and remove the back support pad from the integrated head support. 2) Attach up to 3 pads on each side of the head support (see fig. 83, no. 1, see fig. 84, no. 1). 3) Return the back support pad and fasten it. Kimba Neo...

  • Page 34: Adjusting The Individually Adjustable Head Support

    Via the angle of the lateral pads • Via the distance of the lateral pads to the middle pad a) Adjusting the angle of the lateral pads 1) Loosen the Allen head screw on the hinge (see fig. 86, no. 1). Kimba Neo...

  • Page 35: Positioning The Foam Wedge: Concave Head Support

    The position of the head support can be adjusted using the wing nuts on the connecting bridge. 1) Loosen the thumb screws (see fig. 89, no. 1). 2) Adjust the position of the head support as needed. 3) Tighten the thumb screws. 4) Verify that the head support is firmly engaged. Kimba Neo...

  • Page 36: Positioning Aids

    Adjusting the belts using the pairs of clip buckles at the rear of the back support (see fig. 50, item 2 and 3, see Page 22) • Adjusting the belts using the sewn-on clip buckles on the sternum strap (see fig. 48, item 5, see Page 22) Kimba Neo...

  • Page 37: Adjusting The Positioning Vest

    → Adjust the height of the heel guide. → Firmly tighten the screws on the heel guide. → Check whether the leg support can be folded up or down without difficulty. If not, continue adjusting until the leg support can be folded readily. Kimba Neo...

  • Page 38: Adjusting The Leg Support Angle

    3) Slide the locking bushings in the slotted holes evenly on both sides (see fig. 95, see arrow) to set the desired angle. 4) Tighten the mounting nuts (see fig. 94, no. 1). 7.5.3 Further settings The following adjustment tasks are described in more detail in the included instructions for use (user): • Adjusting the knee angle Kimba Neo...

  • Page 39: Positioning Belts

    Further information on caring for the product and on maintenance/repair can be found in the instructions for use (user). Detailed information on repairs can be found in the service manual. 10 Disposal 10.1 Disposal information All components of the product must be disposed of properly in accordance with the respective national environ­ mental regulations. Kimba Neo...

  • Page 40: Information On Re-Use

    – cannot be adjusted in the mm range but only in increments of approx. 0.5 cm or 1 cm. ► Note that the values achieved during adjustment may deviate from the values specified below. The deviation can be ±10 mm and ±2°. Kimba Neo seating unit Size 1 Size 2 Seat width [mm] 200–300...

  • Page 41: Appendices

     For the combination of Kimba Neo outdoor mobility base with the Kimba Neo seating unit, the following applies: Maximum user weight of the seating unit (40 kg) plus the weight of the seating unit itself (7 kg, for •...
  • Page 42 Kimba Neo...
  • Page 43 · www.ottobock.de 143441 Moscow Region/Krasnogorskiy Rayon info@ottobock.com.co · www.ottobock.com.co Russian Federation Otto Bock Healthcare Products GmbH Otto Bock de Mexico S.A. de C.V. T +7 495 564 8360 · F +7 495 564 8363 Brehmstraße 16 · 1110 Wien · Austria Prolongación Calle 18 No. 178-A info@ottobock.ru · www.ottobock.ru F +43 1 5267985...
  • Page 44 Ihr Fachhändler | Your specialist dealer Otto Bock Mobility Solutions GmbH Lindenstraße 13 · 07426 Königsee/Germany www.ottobock.com...
