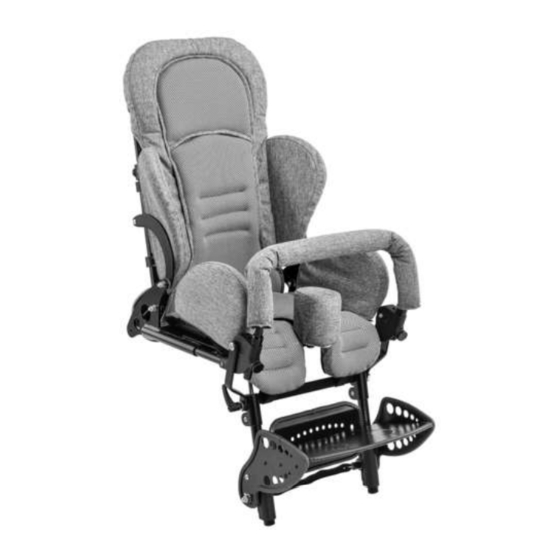

Otto Bock Kimba Neo Instructions For Use Manual
Hide thumbs
Also See for Kimba Neo:
- Instructions for use manual (60 pages) ,
- Service manual (44 pages) ,
- Instructions for use manual (40 pages)
Subscribe to Our Youtube Channel
Related Manuals for Otto Bock Kimba Neo
Summary of Contents for Otto Bock Kimba Neo

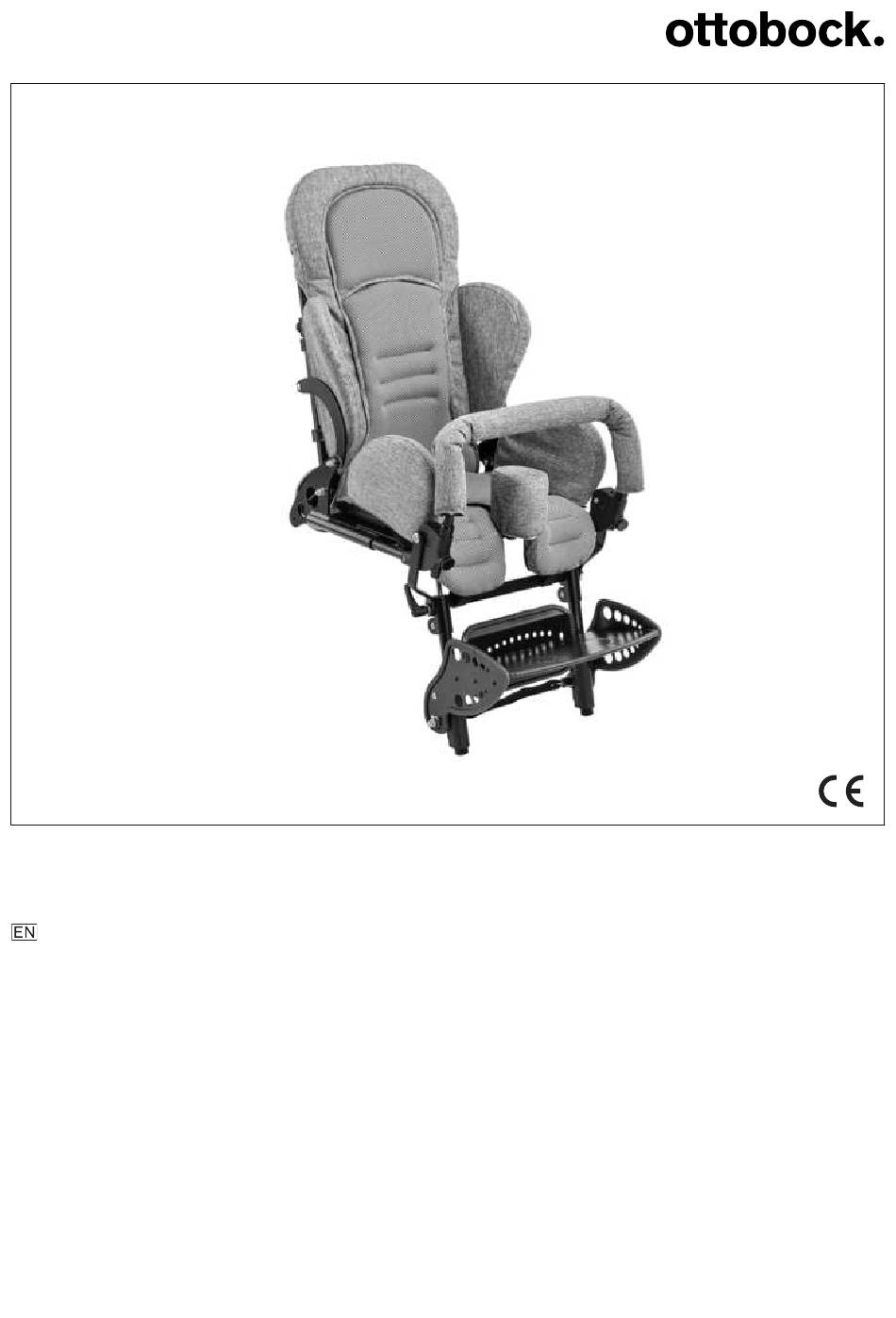

- Page 1 Kimba Neo Instructions for use (user) ..................
- Page 2 Kimba Neo...
-
Page 3: Table Of Contents
......................Preparing the product for use ......................... Assembly ............................6.1.1 Attaching the seating unit ........................................................... Basic functions of the Kimba Neo seating unit ..................7.1.1 Attaching/detaching the seating unit ...................... 7.1.2 Rotating the seating unit ........................7.1.3 Adjusting the seat tilt ........................... - Page 4 Maintenance intervals .......................... Repair ............................... Disposal ................................Disposal information ..........................Legal information .............................. 10.1 Liability .............................. 10.2 Warranty ............................10.3 Service life ............................Technical data ..............................Appendices ................................ 12.1 Threshold values for rehab buggies transportable by train ................ Kimba Neo...
-
Page 5: Foreword
The manufacturer reserves the right to make technical changes to the model described in these instructions for use. 2 Product description 2.1 Function The product is intended exclusively for transporting one child on the seat. The product can be used indoors and outdoors. Kimba Neo... -
Page 6: Product Overview
The user is ultimately responsible for accident-free operation. 3.1 Indications for use The product is intended for everyday indoor and outdoor use, by an attendant, of children with temporary or per manent limitations of the ability to walk, inability to walk or difficulty standing up. Kimba Neo... -
Page 7: Indications
► Check your skin for intactness before and during use of the product. ► Pay attention to diligent skin care and pressure redistribution during interruptions in using the product. ► If skin damage or other problems occur during use, stop using the product. Consult the qualified personnel. Kimba Neo... - Page 8 Use of the product during diagnostic examinations and therapeutic treatment Impairment of the examination results or the effectiveness of treatment due to interactions of the product with devices that are used ► Make sure that examinations and treatments are carried out exclusively under the prescribed conditions. Kimba Neo...
-
Page 9: Side Effects
The nameplates are found on the back support. Label Meaning A Manufacturer’s product name B CE marking C Maximum user weight (see section “Technical data”) D Manufacturer information/address E Serial number F Manufacturing date G Symbol for medical device Kimba Neo... -
Page 10: Delivery
► Before mounting the seating unit on the outdoor mobility base, adjust the tilt-limiter as appropriate for the dir ection in which the seating unit will face. ► The tilt-limiter is adjusted on the outdoor mobility base. For information on adjusting the tilt-limiter, see the instructions for use for the outdoor mobility base. Kimba Neo... - Page 11 5) Check that the seat and the mobility base are securely connected to each other by pulling the back support backwards. → The seating unit should remain firmly attached to the mobility base. c) Detaching the seating unit For information on detaching the seating unit, see Page 12. Kimba Neo...
-
Page 12: Use
7 Use 7.1 Basic functions of the Kimba Neo seating unit INFORMATION When combined with the Kimba Cross and Kimba Inline mobility bases, it is not possible to tilt the seat or to adjust the back support angle. 7.1.1 Attaching/detaching the seating unit... -
Page 13: Rotating The Seating Unit
► When operating the seat tilt, always secure the user against falling out of the seating unit either forwards or backwards. When operating the seat tilt, hold on tight to the push handle or push bar. ► Do not reach into the adjustment mechanism when operating the seat tilt. Kimba Neo... - Page 14 3) Release the twist knob. → The adjustment mechanism locks automatically. 4) Check that the seating unit is firmly attached by gently pushing and pulling the back support. If the unit is not completely secure, check the position of the twist knob. Kimba Neo...
-
Page 15: Adjusting The Back Support Angle
(see fig. 13, item 2) rotate it by 90° to bring it into a hori zontal position (see fig. 15, item 1). Then adjust the back support locking mechanism to the desired ratchet position. 7) Close the twist knob by rotating it to the right (see fig. 13). Kimba Neo... -
Page 16: Using The Back Support Angle Limiters
User tipping over, falling due to lifting by removable components ► The product may be lifted only by firmly welded or permanently attached components. It is particularly danger ous to lift the product by the leg support, push handle/push bar, lap bar or arm supports. Kimba Neo... -
Page 17: Adjusting The Knee Angle
Angle-adjustable leg support for short lower leg lengths (option) 1) Pull the release strap (similar: see fig. 22). 2) Depending on its position after installation, the leg support can be folded down (short lower leg lengths) or up (standard). Kimba Neo... -
Page 18: Additional Options
The width of the head area can be reduced by inserting foam pads (see fig. 26, item 1) into the head support's side pads (see fig. 25). Three pads, each 10 mm thick, can be inserted on each side. In total, the width can be reduced by 60 mm (30 mm each side). The option has been preset by qualified personnel. Kimba Neo... -
Page 19: Head Support, Individually Adjustable
► Under no circumstances may the belts and positioning aids offered with the product be used as part of a pas senger restraint system in vehicles for transporting persons with reduced mobility. ► Note that the belts and positioning aids offered with the product are only intended to help support the user sit ting in the product. Kimba Neo... -
Page 20: Lap Belts
► Do not leave the user unsupervised if the cognitive abilities of the user could lead to unintentional opening of the positioning system. The seating unit can be equipped with a lap belt. It provides additional support for the pelvis and keeps the user from sliding out of the seat. Kimba Neo... -
Page 21: Two-Point Lap Belt With Metal Buckle, Padded
3) Secure the loose end of the belt by feeding it through the plastic loop (see fig. 32, item 2). Using the belt 1) Open the belt buckle by pressing the PRESS button (see fig. 31, item 1). 2) Sit the user in the seat. 3) Press the belt tongue into the buckle until engages audibly. Kimba Neo... -
Page 22: Two-Point Lap Belt With Plastic Buckle
3) Fasten the belt by means of the metal snap until the closure audibly engages. → The main strap (with padding) should be at an angle of about 60° to the seat surface. The support straps should run across the thighs in front of the pelvic bones (see fig. 30). Kimba Neo... -
Page 23: Four-Point Belt
2) Move the shoulder and lap belts to the side. 3) Sit the user in the seat. 4) Place the belts over the shoulders (see fig. 42). 5) Press the tongues into the belt buckle until they click (see fig. 37, item 2). Kimba Neo... -
Page 24: Five-Point Belt
→ The five-point belt is adjusted correctly when the closed belt buckle lies against the child's abdomen (see fig. 38). Using the belt 1) To undo the belt, press the red button (see fig. 38, item 1). 2) Move the shoulder and lap belts to the side. 3) Sit the user in the seat. Kimba Neo... -
Page 25: Positioning Aids
► Only open the positioning system for the upper body and the lap belt when the user is ready to get out of the product. ► Do not leave the user unsupervised if the cognitive abilities of the user could lead to unintentional opening of the positioning system. Kimba Neo... -
Page 26: Thoracic Supports
The seating unit can be equipped with an abductor (see fig. 46) that ensures that the legs are abducted (spread to the sides) from the centre of the body for certain indications. The option has been preset by qualified personnel. Kimba Neo... -
Page 27: Sternum Strap
CAUTION! Ensure that the user’s posture in the seat is correct: If the sternum strap is too loose, the user may slide forward and adopt an incorrect posture or even slide completely out of the seat. The lower straps of the harness must be level with the hip bone on both sides (see fig. 50, item 1). Kimba Neo... - Page 28 The user's hips are not secured with a separate pelvic harness. • If the positioning system is too loose, the user can shift forward/slide down. • The positioning system collides with devices, options or supply hoses during installation and adjustment, restricting their functionality. Kimba Neo...
-
Page 29: Positioning Vest
7) Close the hook-and-loop closures over the zip fastener (see fig. 53, item 1). INFORMATION: In daily use, the positioning vest can also be put on or taken off by opening and clos ing the clips on the front of the vest (see fig. 55, items 1 and 2). Kimba Neo... -
Page 30: Groin Strap
5) If needed: Tighten the straps in the clip buckles at the back of the seat (see fig. 57, item 1) and fasten them. 6) The length of the thigh straps can be adjusted if necessary by pulling on the free ends of the two straps (see fig. 58, item 2) in the belt buckles. Kimba Neo... -
Page 31: Neck Support
The seating unit can be equipped with hook-and-loop foot straps that secure the feet firmly on the leg support for certain indications (see fig. 62). Using the hook-and-loop foot straps 1) Undo the hook-and-loop closure. 2) Place the foot on the leg support. 3) Pass the strap tightly around the shoe and fasten the hook-and-loop closure. Kimba Neo... -
Page 32: Padding
2) Press in the first tripod spring and push the grab rail down slightly. Then repeat this process on the opposite side of the grab rail (see fig. 63). 3) Press the grab rail down until the springs engage behind the releases (see fig. 64, item 2). Kimba Neo... -
Page 33: Armrests
Adjusting the depth 1) Remove the arm support pad. 2) Loosen the wing nuts (see fig. 67, item 1). 3) Adjust the arm support horizontally (see fig. 67, item 2). 4) Tighten the wing nuts and attach the arm support pad. Kimba Neo... -
Page 34: Tray
INFORMATION Note that the tray may only be used when the seat is facing the direction of travel. The seating unit can be equipped with a tray on which objects can be placed directly next to the seat. Kimba Neo... -
Page 35: Canopy
2) Rotate the tray to the desired angle (see fig. 69, item 2). 3) Tighten the clamping lever. 7.2.8 Canopy CAUTION Exposed pinch points Crushing, pinching due to incorrect handling ► When folding out the backrest, only grip by the specified components. Kimba Neo... -
Page 36: Rain Canopy
Removing the back section improves ventilation (e. g. in summer heat; see fig. 73). • The rain cover can be stored in the canopy's side pocket (see fig. 77). 7.2.9 Rain canopy The seating unit can be equipped with a rain canopy to protect the user from rain (see fig. 74). Kimba Neo... -
Page 37: Rain Cover
1) Take the rain cover out of the canopy's side pocket (see fig. 77). 2) Put the rain cover on over the canopy and the leg support. Make sure that the air intake is open and positioned in front of the user's nose (see fig. 76, item 1). Kimba Neo... -
Page 38: Rain Cape
→ Front: e. g. on the leg support tube (see fig. 80, item 2) Using the slip sack 1) If necessary: Attach or remove the winter insert using the buttons. 2) Open the zip fastening and place the user inside. 3) Close the zip fastening and the closures. Kimba Neo... -
Page 39: Seat Depth Reducer
The incontinence cover (see fig. 82) protects the seating unit's padding. The incontinence cover can be removed for washing. Attaching the incontinence cover 1) Remove the seat pad and the back support pad from the seating unit (see Page 46). Kimba Neo... -
Page 40: Seat Insert, Small
7.2.15 Seat insert, small The seat insert provides very small children with better support in the seating unit (see fig. 87). The seat insert can be removed for washing. Before washing the insert, close the attachment straps. Kimba Neo... - Page 41 1) Open the belt buckles on the seat insert attachment straps. 2) Remove the seat insert from the seat base. 3) Close the belt buckles on the seat insert. 4) Wash the seat insert according to the washing symbols on the care label. Kimba Neo...
-
Page 42: Foam Wedges For Individual Seating Positions
► Never place heavy objects on the folded product. INFORMATION The product can be equipped with the Kimba Neo seating unit or alternative seating systems. In this case, please observe the information in the separate instructions for use for the seating system. -
Page 43: Use In Vehicles For Transporting Persons With Reduced Mobility
► The product was tested for use in a vehicle for transporting persons with reduced mobility in combination with the Kimba Neo outdoor mobility base. ► If the product is to be used as a seat in a vehicle for transporting persons with reduced mobility, the safety elements offered by the manufacturer and appropriate fastening and personal restraint systems must be used. -
Page 44: Permitted Use
► Stow all dismantled options securely in the vehicle for transporting persons with reduced mobility. The following options must be detached from the Kimba Neo seating unit and from the Kimba Neo outdoor mobility base and securely stowed prior to transport in a vehicle for transporting persons with reduced mobility: •... -
Page 45: Important Information
Foam wedges may remain on the seat surface if they have been attached there by the qualified personnel. 7.5.1.3 Cleaning belts/straps Cleaning a belt system with metal closure INFORMATION Observe the washing recommendations on the product and the information in the corresponding instructions for use provided for the product. Kimba Neo... -
Page 46: Detaching And Attaching Pads
2) Open the zip fastener (see fig. 101) on the pad and remove the back support pad. Attaching the back support pad 1) Place the pad in position and pull the lower end through between the back support and the seat base. Kimba Neo... -
Page 47: Detaching/Attaching The Covers
2) Pull the end of the cover without a tab (see fig. 104, item 1) over the pad first. 3) Pull the cover with the tab over the pad (see fig. 104, item 2). 4) Fold the tab in and fasten the hook-and-loop closure (see fig. 105). 5) Attach the pads (see Page 46). Kimba Neo... -
Page 48: Detaching And Attaching The Grab Rail Cover
2) Wipe all parts of the product with a disinfectant. Important information about disinfecting • Only use colourless water-based disinfectants. Observe the instructions for use provided by the manufacturer. • Thoroughly clean the padding and handles before disinfecting. Kimba Neo... -
Page 49: Maintenance And Repair
Severe user injuries, damage to the product due to adjustment and installation errors ► All repairs may only be carried out by qualified personnel. 9 Disposal 9.1 Disposal information Return the product to the qualified personnel for disposal. Kimba Neo... -
Page 50: Legal Information
– cannot be adjusted in the mm range but only in increments of approx. 0.5 cm or 1 cm. ► Note that the values achieved during adjustment may deviate from the values specified below. The deviation can be ±10 mm and ±2°. Kimba Neo seating unit Size 1 Size 2 Seat width [mm] 200–300... -
Page 51: Appendices
Appendices For the combination of Kimba Neo outdoor mobility base with the Kimba Neo seating unit, the following applies: Maximum user weight of the seating unit (40 kg) plus the weight of the seating unit itself (7 kg, for • size 1) = 47 kg •... - Page 52 Kimba Neo...
- Page 53 Kimba Neo...
- Page 54 Kimba Neo...
