Kimba neo
Instructions for Use (Qualified Personnel) .................................................................
3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kimba neo and is the answer not in the manual?

Questions and answers

Related Manuals for Otto Bock Kimba neo

Summary of Contents for Otto Bock Kimba neo

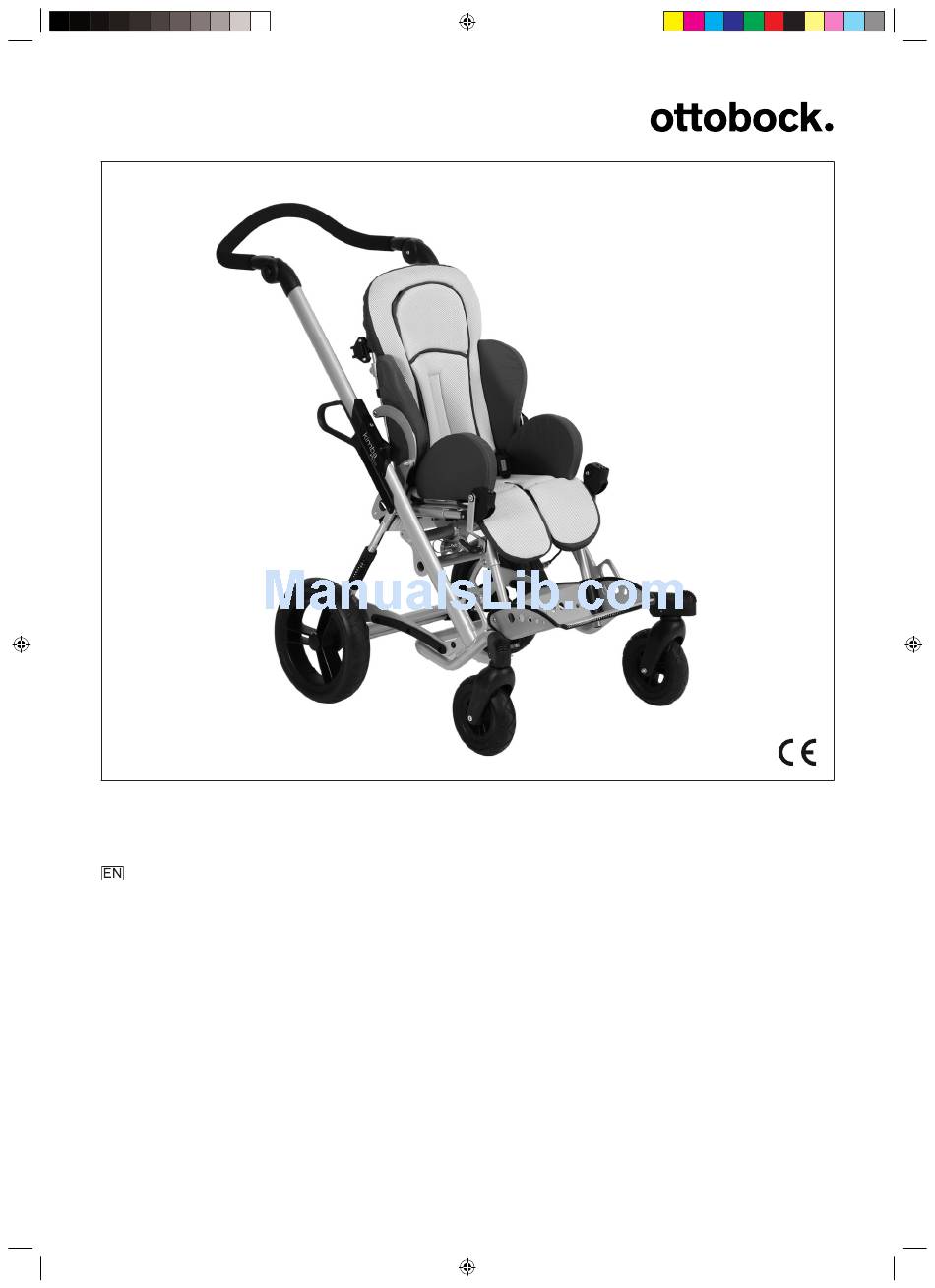

  • Page 1 Kimba neo Instructions for Use (Qualified Personnel) ..............
  • Page 2 2 | Ottobock Kimba neo...

  • Page 3: Table Of Contents

    Storage basket ........................... Adjustments ............................... Prerequisites ............................Multifunctional seating unit (standard seat) ..................... 6.2.1 Adjusting the Seat Depth ........................6.2.2 Adjusting the seat width ........................6.2.3 Adjusting the backrest height ....................... 6.2.4 Further settings ..........................Kimba neo Ottobock | 3...
  • Page 4 Delivery ............................. Maintenance/Repair ............................Disposal ................................Disposal information ..........................Information on re-use ........................... Legal Information .............................. 10.1 Liability .............................. 10.2 CE Conformity ............................ 10.3 Warranty Terms and Conditions ......................Appendices ................................ 11.1 Technical Data ............................ 4 | Ottobock Kimba neo...

  • Page 5: Foreword

    The rehab buggy can be used indoors and outdoors. It is fully adjustable to provide an optimised, individual fitting. The product may be used only with the options listed on the product order form. The Otto Bock warranty applies only when the product is used according to the specified conditions and for the intended purposes.

  • Page 6: Safety

    (e.g. Loctite 241 CAUTION Improper use of self-locking nuts Risk of the user falling or tipping over ► Always replace self-locking nuts with new self-locking nuts after disassembly. 6 | Ottobock Kimba neo...

  • Page 7: Rating Plate And Warning Labels

    ACHTUNG! Lassen Sie Ihr Kind nicht unbeaufsichtigt! ATTENTION! Never leave your child unattended! ACHTUNG! Dieser Sitz ist für Kinder unter 6 Monaten nicht geeignet! ATTENTION! This seating unit is unsuitable for children aged below 6 months! Kimba neo Ottobock | 7...

  • Page 8: Delivery

    1) Unfold the pushbar (see Fig. 1, Pos. 1). 2) Unfold the rehab buggy by pulling the pushbar (see Fig. 1, Pos. 2). → The release handles of the folding mechanism click into place automatically after unfolding (see Fig. 1, Pos. 3). 8 | Ottobock Kimba neo...

  • Page 9: Installing Options/Accessories

    5.2.1.1 Headrest supports 1) Pull the proper sides of the headrest supports through the padding (see Fig. 5). 2) Open the zipper of the padding cap (see Fig. 3) and push the padding behind the seat to the side. Kimba neo Ottobock | 9...

  • Page 10: Integrated Headrests

    2) Put the mounting screw through the fastening point from the outside (see Fig. 8, Pos. 2) and screw it into the strap guide. 3) Pre-mount the strap guide with the washer/cap nut. 4) Twist the strap guide in the direction of use and finish assembly (see Fig. 7). 10 | Ottobock Kimba neo...

  • Page 11: Lap Belt

    9) Run the end of the belt through the adjustment buckle (4) and, to complete, through the belt restraint (3) (see Fig. 10, Pos. 1/2). → If the belt buckle (6) can be closed while being in the centre of the seat, the lap belt has been installed prop­ erly. Kimba neo Ottobock | 11...
  • Page 12 Preparation for Use 12 | Ottobock Kimba neo...

  • Page 13: Four-Point Belt

    4) If necessary, cut off protruding belt ends of the shoulder belts and melt the free ends by applying heat (such as from a lighter). 5) Mount the lap-belt part (5) according to the chapter "Lap belt" (see Page 11). → The four-point belt is installed properly if the latches can be clipped into the buckle (8). Kimba neo Ottobock | 13...

  • Page 14: Five-Point Belt

    2) Rivet 2 clips (1) to the holes of the bottom back plate (see Fig. 15, Pos. 2). 3) Run the shoulder belts (2) through the padding/back plate (see Fig. 16) and secure them in the clips (see Fig. 15, Pos. 3). 14 | Ottobock Kimba neo...
  • Page 15 2) Thread the crotch belt twice through the stop plate (10) and back up through the seat plate (see Fig. 22, Pos. 3) Thread the crotch belt a second time below the crossbar of the adjustment buckle (see Fig. 23, Pos. 1). Kimba neo Ottobock | 15...

  • Page 16: Positioning Aids

    INFORMATION: When using a slip sack, make a cut in it in the specified spot, insert the slip sack and fasten the abductor with screws loosely. 2) Adjust the depth of the abductor in the slotted hole if necessary. 3) Now fasten the abductor with screws tightly. 16 | Ottobock Kimba neo...

  • Page 17: Chest And Shoulder Support

    INFORMATION: The bottom padded ends of the chest and shoulder support are to rest subsequently on the user's spinae. 6) If necessary, cut off protruding belt ends of the attachment straps and melt the free ends by applying heat (such as from a lighter). Kimba neo Ottobock | 17...

  • Page 18: Fixation Vest

    INFORMATION: For improved guidance of the middle/bottom attachment straps (3/4), you can addi­ tionally install strap guides. 5) If necessary, cut off protruding belt ends of the attachment straps and melt the free ends by applying heat (such as from a lighter). 18 | Ottobock Kimba neo...

  • Page 19: Groin Strap

    4) Run the belt ends of the long attachment strap (4) around the back support and secure them in the clips (see Fig. 35, Pos. 3). 5) If necessary, cut off protruding belt ends of the long attachment strap (4) and melt the free ends by applying heat (such as from a lighter). Kimba neo Ottobock | 19...

  • Page 20: Pelvic Band

    3) Pre-position the canopy adapter in a level manner (see Fig. 38). 4) Tighten the set screws of the canopy adapter again. 5) Put on the back insert and tighten again the set screws at the back tube. 20 | Ottobock Kimba neo...

  • Page 21: Rain Cover

    ► During the attachment, make sure that the product cannot grind against the wheels. ► Mount the storage basket, with the proper side, to the frame using the snap fasteners and the hook-and-loop strap (see Fig. 41, Pos. 1/see Fig. 42, Pos. 1). Kimba neo Ottobock | 21...

  • Page 22: Adjustments

    All parts of the product should be cleaned thoroughly before adjustments are made. 6.2 Multifunctional seating unit (standard seat) INFORMATION The product can also be equipped with alternative seating systems. In this case, please observe the information in the separate instructions for use for the seating system. 22 | Ottobock Kimba neo...

  • Page 23: Adjusting The Seat Depth

    INFORMATION: You can achieve a greater back height by additionally shifting the top back plate at the back insert. To do so, loosen/remove the knurled nuts, shift the back plate and hand-tighten the knurled nuts again. Kimba neo Ottobock | 23...

  • Page 24: Further Settings

    2) To fit the free space in the head region, glue up to 3 foam pads, each 1 cm thick, on the headrests (see Fig. 49, Pos. 1/see Fig. 50, Pos. 1). 3) Put back/close the padding again. 24 | Ottobock Kimba neo...

  • Page 25: Positioning Aids

    Moving the belt in the 6 clips on the back plate (see Fig. 32, Pos. 1-3) 6.4.5 Adjusting the groin strap INFORMATION The application of the product is described in the Instructions for Use (User). The groin strap can be adjusted as follows: Kimba neo Ottobock | 25...

  • Page 26: Adjusting The Pelvic Band

    4) Tighten the fastening nuts of the locking screws again. 6.5.3 Further settings The following fitting tasks are described in more detail in the included Instructions for Use (User) – reference num­ ber 647G770: • Adjusting the knee angle 26 | Ottobock Kimba neo...

  • Page 27: Safety Belts

    Detailed information on repairs can be found in the service manual. 9 Disposal 9.1 Disposal information In case of disposal, all components of the product must be disposed of in accordance with the respective national environmental laws. Kimba neo Ottobock | 27...

  • Page 28: Information On Re-Use

    Push handle height (min./max.) 71/116 71/116 Seat tilt (seating unit angle (min./max.)) -35°/+10° or -10°/+35° -35°/+10° or -10°/+35° Maximum load capacity* Max. load storage basket* Weight of mobility base 10.5 11.5 Folded size without seat (LxWxH) 79x60x46 79x67x47 28 | Ottobock Kimba neo...
  • Page 29 Outdoor mobility base (max. 55 kg) – fully loaded seating unit (47.5 kg) = 7.5 kg for other accessories + weight in storage basket ** Observe the information in the section "Use in a Wheelchair Accessible Vehicle" Kimba neo Ottobock | 29...
  • Page 30 30 | Ottobock Kimba neo...
  • Page 31 · www.ottobock.com.au Otto Bock Bulgaria Ltd. info@ottobock.sk · www.ottobock.sk 41 Tzar Boris III‘ Blvd. · 1612 Sofia · Bulgaria Beijing Otto Bock Orthopaedic Industries Co., Ltd. T +359 (0) 2 80 57 980 · F +359 (0) 2 80 57 982 Otto Bock Sava d.o.o. B12E, Universal Business Park info@ottobock.bg · www.ottobock.bg Maksima Gorkog bb ·...
  • Page 32 Ihr Fachhändler | Your specialist dealer Versandanschrift für Rücksendungen/Adress for Returns: Otto Bock Manufacturing Königsee GmbH Lindenstraße 13 · 07426 Königsee/Germany Otto Bock Mobility Solutions GmbH Lindenstraße 13 · 07426 Königsee/Germany T +49 (0) 69 9999 9393 · F +49 (0) 69 9999 9392 ccc@ottobock.com ·...
