Field Replaceable Units
FRU Removal and Replacement
System Fans
Before removing the fans, remove the Main Tray
Assembly from the system unit.
Perform the following steps to remove the system
fans.
1 Disconnect the fan connector.
2 Press the retaining clip and swing the fan assembly out
NOTICE:
When removing the fan on the CPU side, you must
first remove the fan retaining screw.

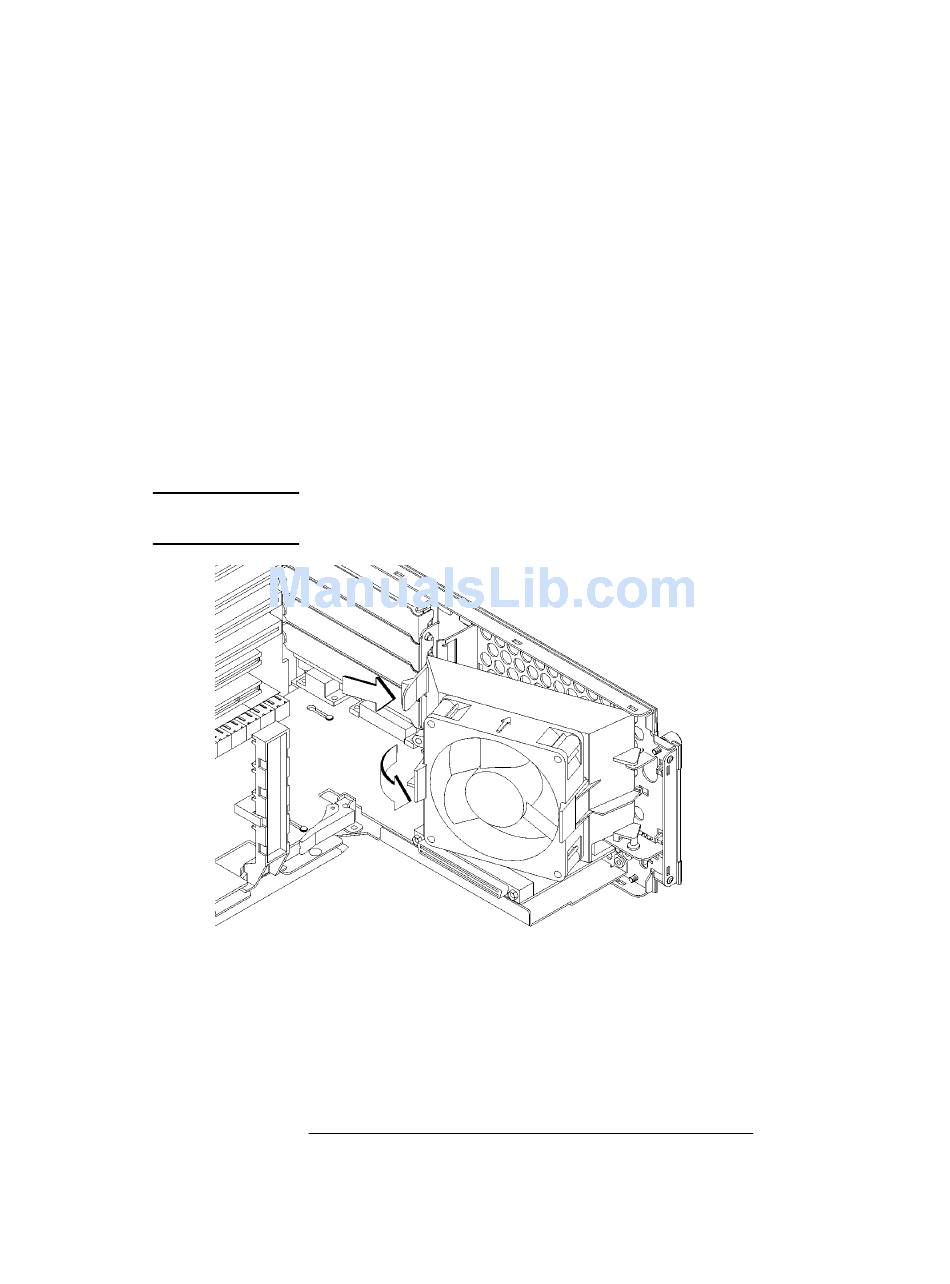

Figure 52
Removing the EISA Area Fan Assembly
142
from the back panel, as shown in Figure 52 and
Figure 53.
