Field Replaceable Units
FRU Removal and Replacement
2 To remove a cache module, push the ejector tabs on each

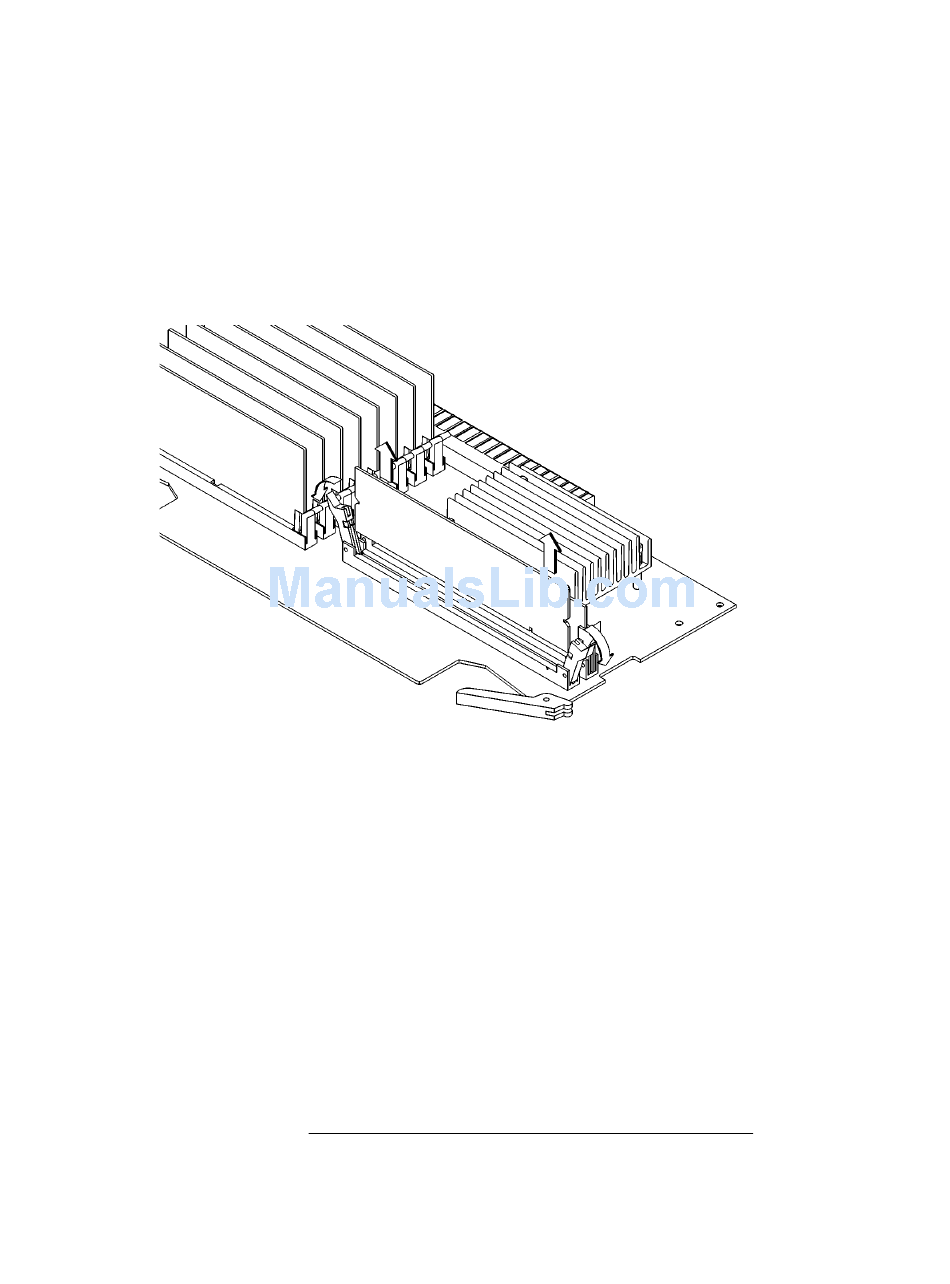

Figure 43
Removing a Cache Module
130
side of the module. Lift the cache module up and out of
the connector and place it on a static-free surface. Figure
43 shows how to remove a cache module.
