Selftest Failures

Selftest Failures
Chassis codes are the key to debugging selftest errors.
If a failure is found during selftest, chassis codes are
displayed in the diagnostic LEDs.
Using Table 13, find
.
the LED error code
To get additional information about failures from the
boot console interface, use the Service menu pim, pdt,
and Chassis Code commands.
Table 13 shows the LED error codes as they appear on
the front panel LEDs. Use these LED codes to deter-
mine a failing component.

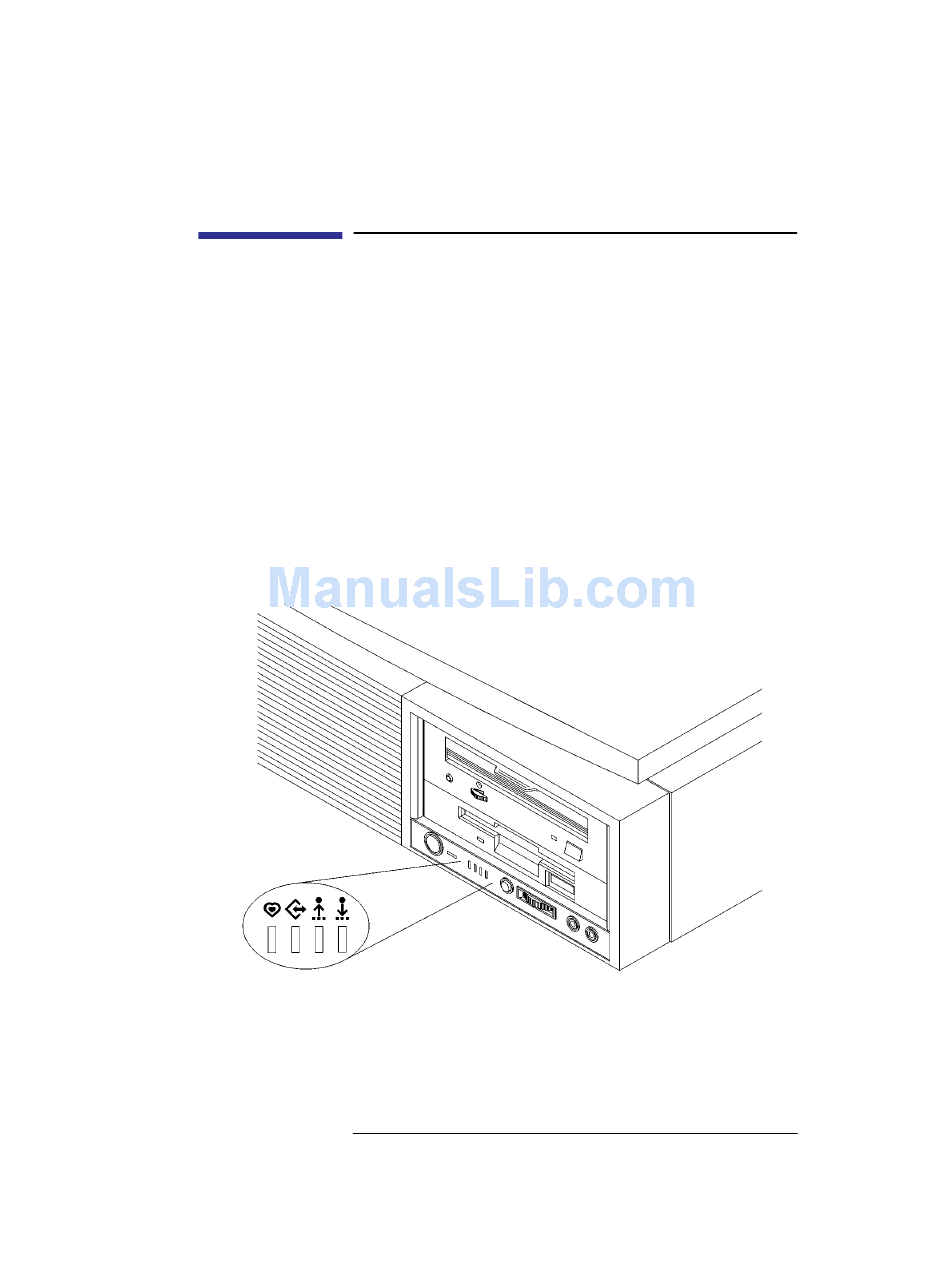

Figure 24

System Unit Front Panel LEDs
