Field Replaceable Units
FRU Removal and Replacement
EGRAM (Enhanced Graphics RAM) Board
Before removing the EGRAM board from the system
unit, perform the following procedures:
•
•
Perform the following steps to remove the EGRAM
board:

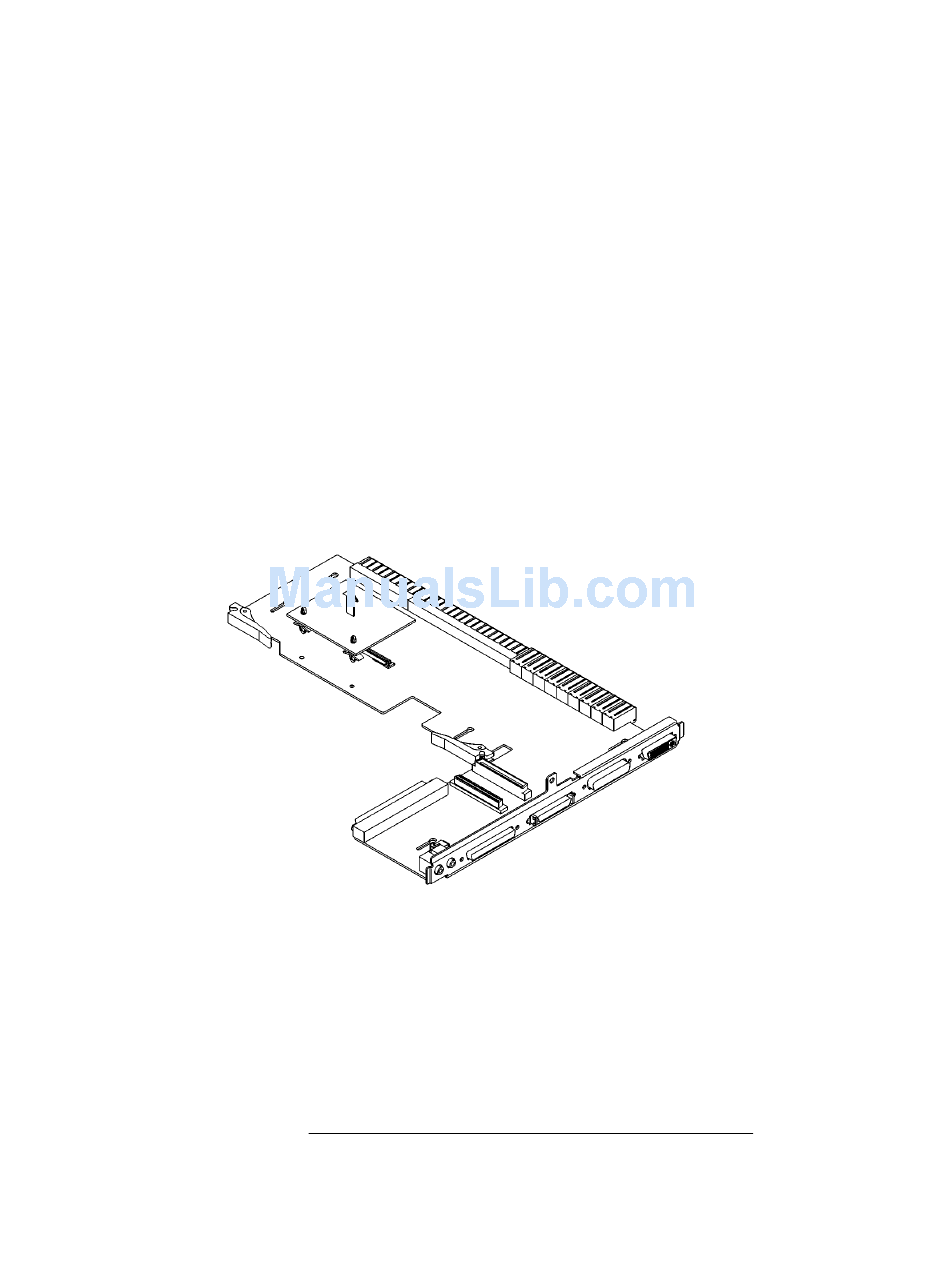

1 Locate the EGRAM board on the I/O board, as shown in
Figure 48
Removing the EGRAM Board
136
Remove the Main Tray Assembly from the system unit.
Remove any option boards.
Figure 48.
