Chassis Display Codes - HP Visualize c100 Service Handbook

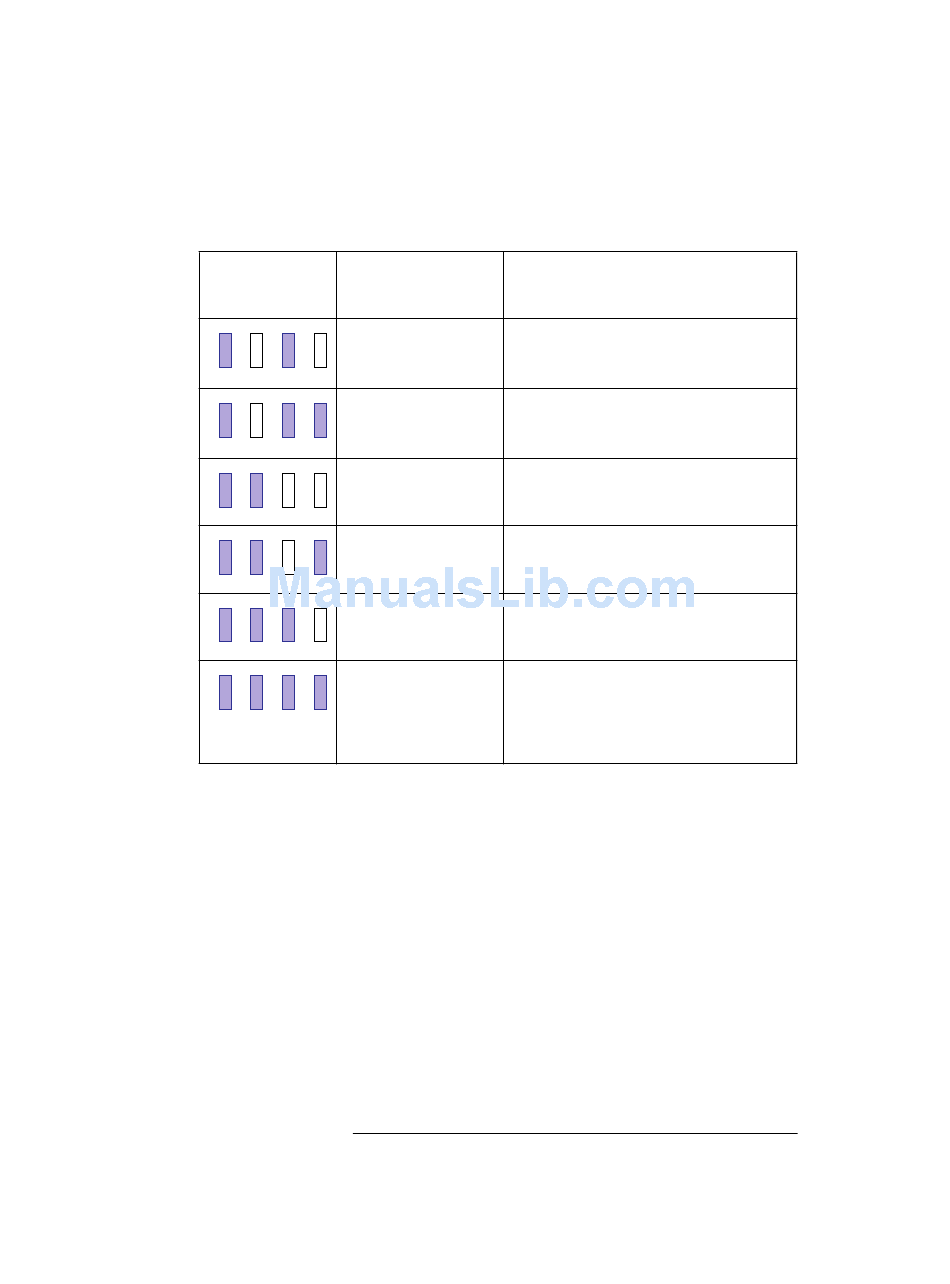

Table 13 LED Error Codes (C160L/160/180)
RS-232 Chassis
LED Value
Code Range
FLT CBF0 - CBFF
FLT A088 - A0FF
N/A
N/A
N/A
Any call to
early_update_chas
sis_display

Chassis Display Codes

Below are definitions for all Raven-U/U+ chassis display
codes. The codes are organized in approximate numerical
order for ease of reference. These codes are displayed
on the serial console, if enabled.
Below the definitions is a chronological example of emit-
ted chassis codes.
The 'ostat' or operating state of the machine have been
omitted. Possible values are: OFF, FLT (Fault), TEST,
INIT (Initialize), SHUT (Shutdown), WARN (Warning), RUN,
and ALL.
Where a number varies, it is represented with:
v = error number
w = other (explained in that area)
x = slot number
y = bus number (gsc or nio)
z = cpu number (0 for uniprocessor systems)
For the following section of DINO hardware test error
chassis codes:
Description
HPMC FAULT
No console/IPL error FAULT
Reserved
Reserved
Reserved
Power on value. Indicates processor
board fault when this value remains
for more than a second following
power up.
These appear only after a PCI failure; see
Troubleshooting
Selftest Failures
77
