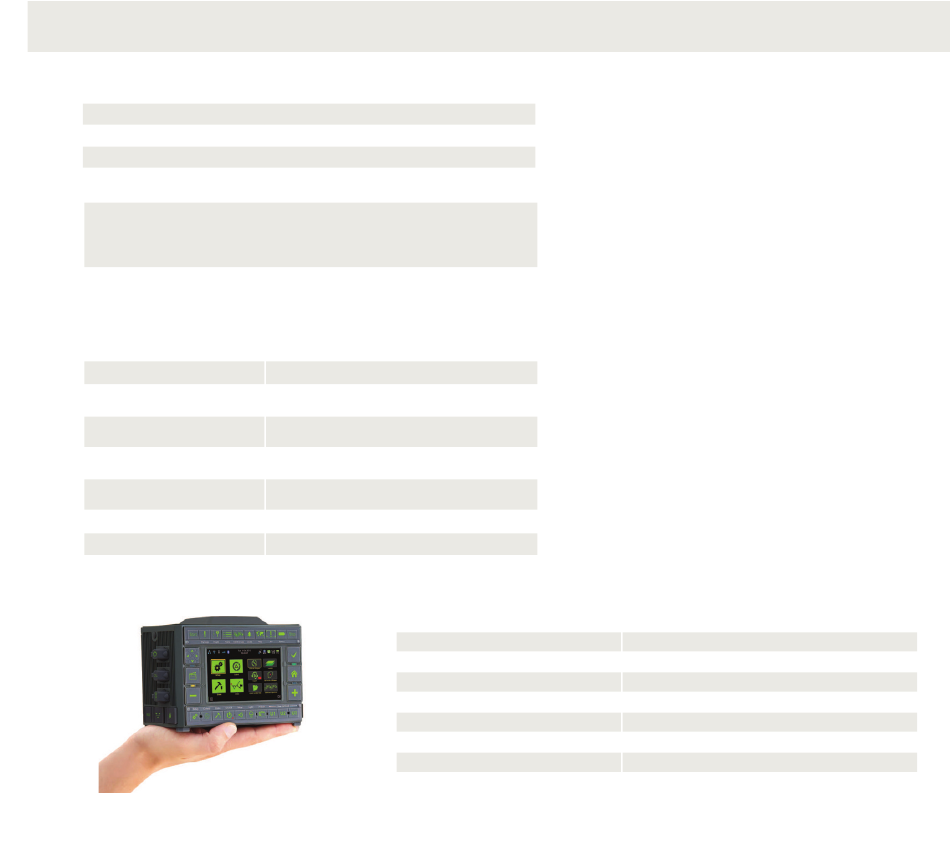

TRIUMPH-LS
Internal GNSS Antenna
Versatile High Performance Geodetic Antenna
Antenna Type
Ground Plane
LNA Gain
GNSS Receiver
Total 864 channels: all-in-view (GPS L1/L2/L5, Galileo E1/E5A/E5B, GLONASS
L1/L2/L3, QZSS L1/L2/L5, Beidou B1/B2, SBAS L1/L5) integrated receiver, rugged
magnesium housing
Signals Tracked
Autonomous Accuracy
Static, Fast Static Accuracy
Kinematic Accuracy
RTK (OTF) Accuracy
DGPS Accuracy
Cold Start
Warm Start
Reacquisition
Environmental
www.javad.com
Microstrip (Zero Centered)
Antenna on a flat ground plane
32±2 dB
GPS C/A, P1, P2, L2C (L+M), L5 (I+Q)
Galileo E1 (B+C), E5A (I+Q), E5B (I+Q), AltBoc
GLONASS C/A, L2C, P1, P2, L3 (I+Q)
QZSS C/A, L1C(I+Q), L2C (L+M), L5 (I+Q), SAIF
Beidou B1, B2
SBAS L1, L5
<2 m
Horizontal: 0.3 cm + 0.5 ppm * base_line_length
Vertical: 0.5 cm + 0.5 ppm * base_line_length
Horizontal: 1 cm + 1 ppm * base_line_length
Vertical: 1.5 cm + 1.5 ppm * base_line_length
Horizontal: 1 cm + 1 ppm * base_line_length
Vertical: 1.5 cm + 1.5 ppm * base_line_length
< 0.25 m (post-processing)
< 0.5 m (real-time)
<35 seconds
<5 seconds
<1 second
Enclosure
Color
Operating Temperature**
Storage Temperature**
Humidity
Dimensions
Weight

Specifications

Specifications
Main Features
*
• 864 channels
• RTK rate up to 100Hz
• 6-parallel RTK Engines
• RAIM
• Advanced Multipath Reduction
• In-Band Interference Rejection
• GLONASS .2mm Dynamic Calibration
• Integrated Controller and FieldCAD Software
• Interference Viewing
• Visual Stakeout
• Offset Survey with Photogrammetry
• Lift & Tilt
• Data Recording up to 16 GB
• Real-time Data Input/Output JPS, RTCM SC104
v. 2.x and 3.x, CMR
• Real-time Data Output NMEA 0183 v. 2.x
and 3.0, BINEX
• WiFi, Bluetooth, Ethernet
• Internal 4G LTE Mini Card
• Internal Radio Modem
• Lifetime Firmware & Software Updates
• 3-Year Unlimited Warranty
Molded magnesium alloy and plastic, IP67
Gray
-30° C to +55° C
-20° C to +45° C
100% condensing
7.20 x 4.88 x 4.17 inches (183 x 124 x 106 mm)
4.63 lbs (2.1 kg)
* For the full list of standard and optional features see www.javad.com
**Li-Ion batteries are the temperature limiting factor
