equal through the association process, there is no residual
horizontally. Note that the elevation column does reveal a
residual because the Design Elevation was set to zero, while
the Surveyed Elevation was 397.249 US Feet. Had these
been set equal the localization would have determined a
vertical offset of -397.249 to accommodate.

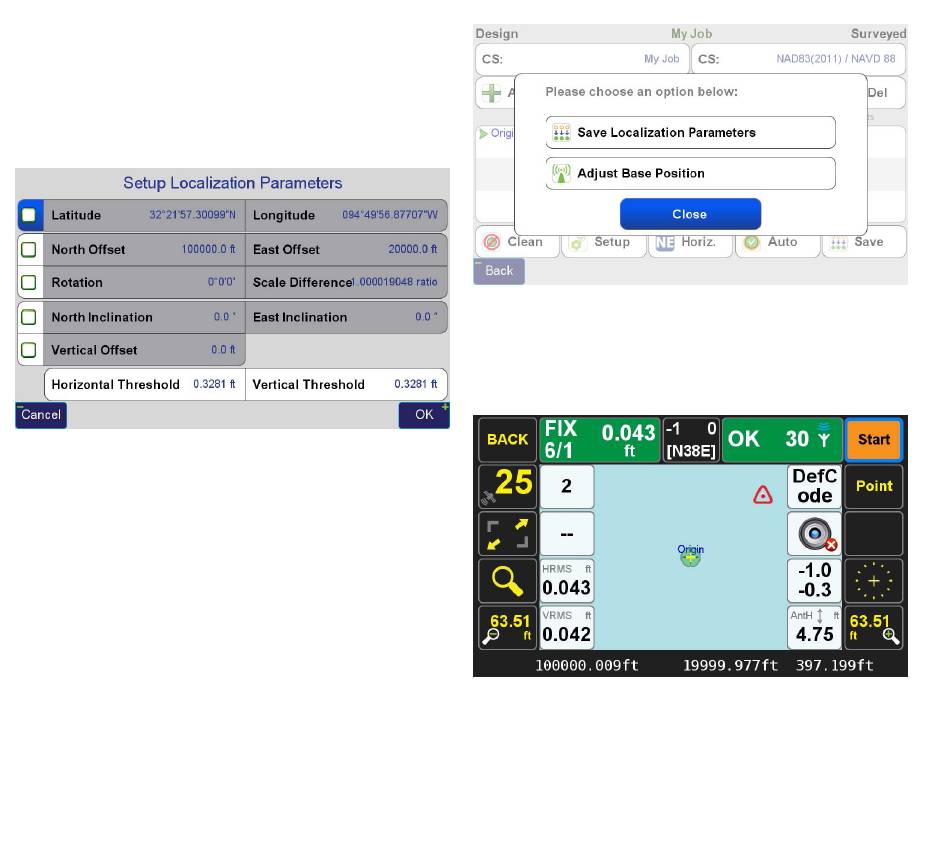

To see the results of our localization, press Setup. This
screen shows the Localization Parameters calculated for
the current localization. Here values can be reviewed and
edited.
NOTE: In order to edit values in the Localization Parameters screen,
make a check in the check box on the left side of the screen on the
row you wish to edit. Once highlighted, the values in these boxes can
be changed. For instance, the rotation could be changed here to the
local State Plane mapping angle, so that this localization is oriented
to State Plane Grid North (remember to use the negative value of the
mapping angle).
Once the parameters have been reviewed the localization
needs to be saved.
142
To verify that the localization origin assignment worked as
expected, I occupied my origin point survey nail with good
results (note the coordinates at the bottom of the Collect
screen).
With the flexibility of the Coordinate Systems in J-Field,
coordinates can now be viewed in this new coordinate
system – My Job, or in any other system in the Coordinate
System library. Therefore it is very simple at this point to
toggle between viewing coordinates in State Plane, Latitude
