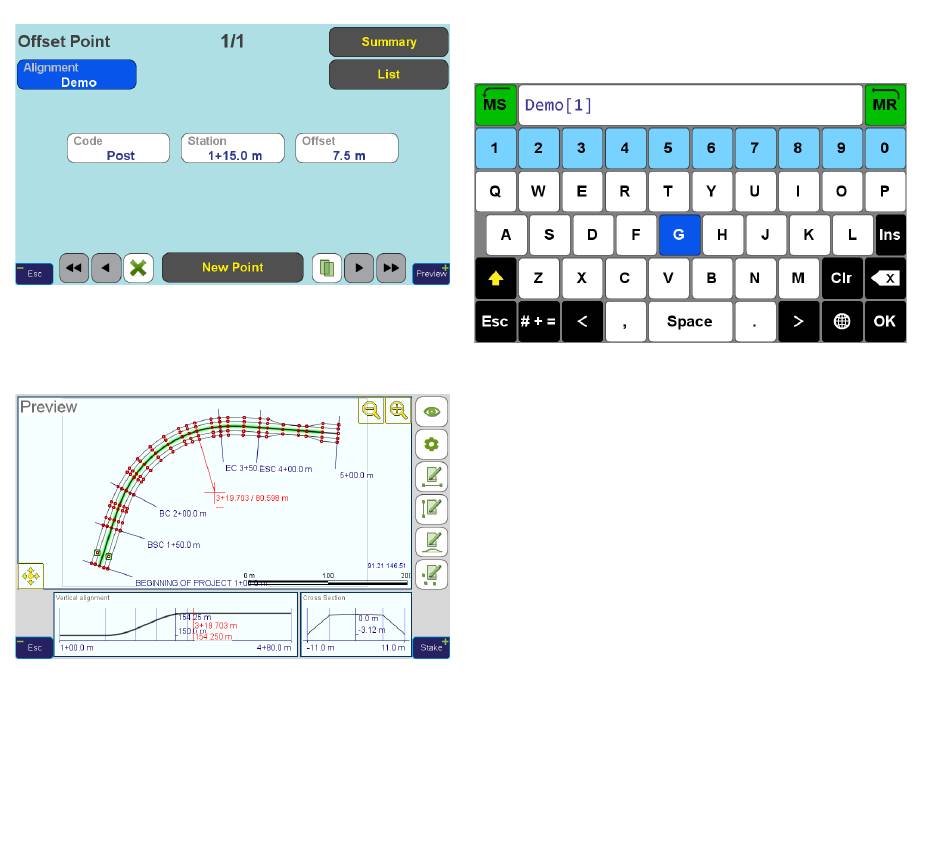

As usual, tap "Preview" to see the final layout of our
alignment (Figure 43).

Modifying the Alignment

Finally, let us do small editing test. Return to the
Alignment Summary screen and tap the "Alignment"
button, which is equivalent to conventional "save as"
80
Figure 42
Figure 43
command. The system suggests a new name for the
alignment (Figure 44).
Tap "Done" to agree with the suggested name. Return
to the Summary screen, already with the new align-
ment (which is the copy of the one we created). Our
"Demo" alignment stays intact, and we can return to it
any time by performing the "Open Alignment" com-
mand from the Stake-Out/Prepare screen.
Tap "Horizontal", pass through all sections and for
each arc or spiral section, change "Turn Direction"
from Right to Left. Return to the section 1/5 (Straight
Line), edit the "Direction" field so that it says "118°" in-
stead of "18°" we have set initially.
Tap "Preview" and note that alignment shape have
changed as we expected, keeping everything consis-
tent and smooth (Figure 45).
Stake Out Alignments
Figure 44
