Codes must have been defined beforehand (pressing
the "Code" field switches to screen which supports
only selection of existing codes. To enter new codes,
use ShapeTags & Codes commands on Home screen).
Also note that once the segments have been entered,
the "Delete Segment" (
segment — there is no way to delete a segment in
the middle without deleting segments after it.

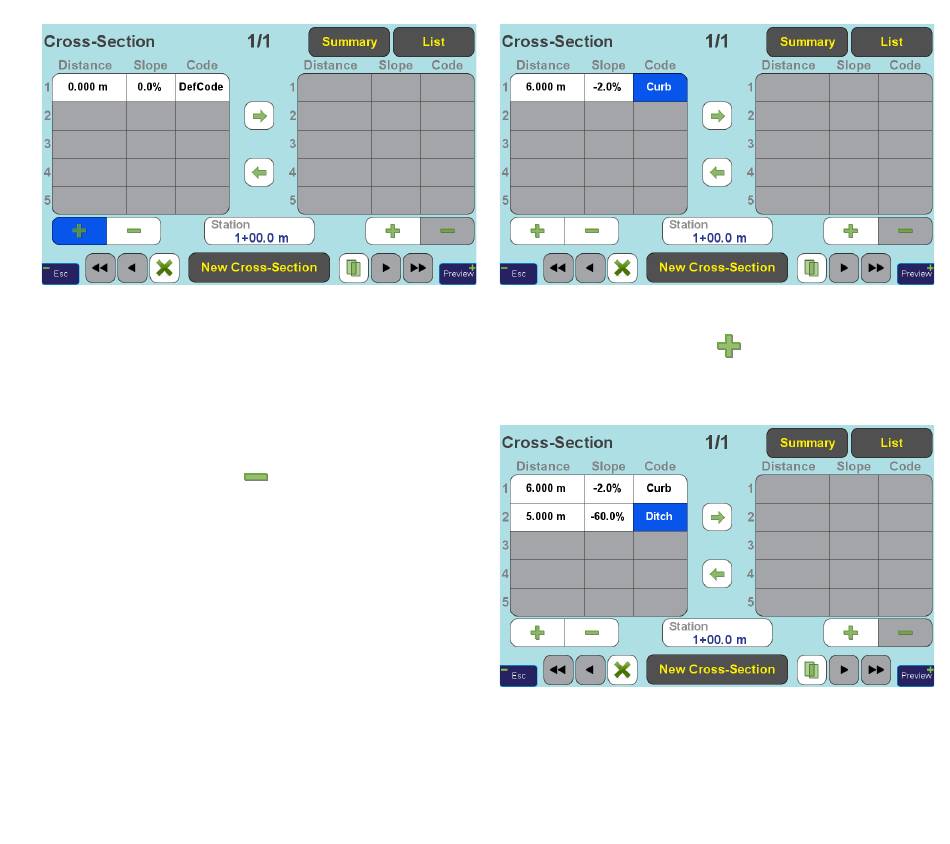

The horizontal distance of stakes, corresponding to
this segment, from the centerline will be 6 m, slope
will be -2%, and code we will arbitrarily call "Curb" (for
the purpose of this tutorial you may, of course, use
any other code including "DefCode"). Enter the values
by clicking and editing corresponding table fields
(Figure 35).
www.javad.com
Figure 34
) button deletes the last
Tap left "Add Segment" (
add second segment and set its fields to distance 5 m;
slope -60%; code — say, "Ditch" (Figure 36).
Note: The "Distance" field denotes distance from pre-
vious segment, not from centerline. So when we enter
segments with distances 6 and 5 m, it means that the
Stake Out Alignments
Figure 35
) button once more to
Figure 36
