Stake Polyline — select existing polyline object to
create horizontal and vertical sections from each of
the sections constituting it.

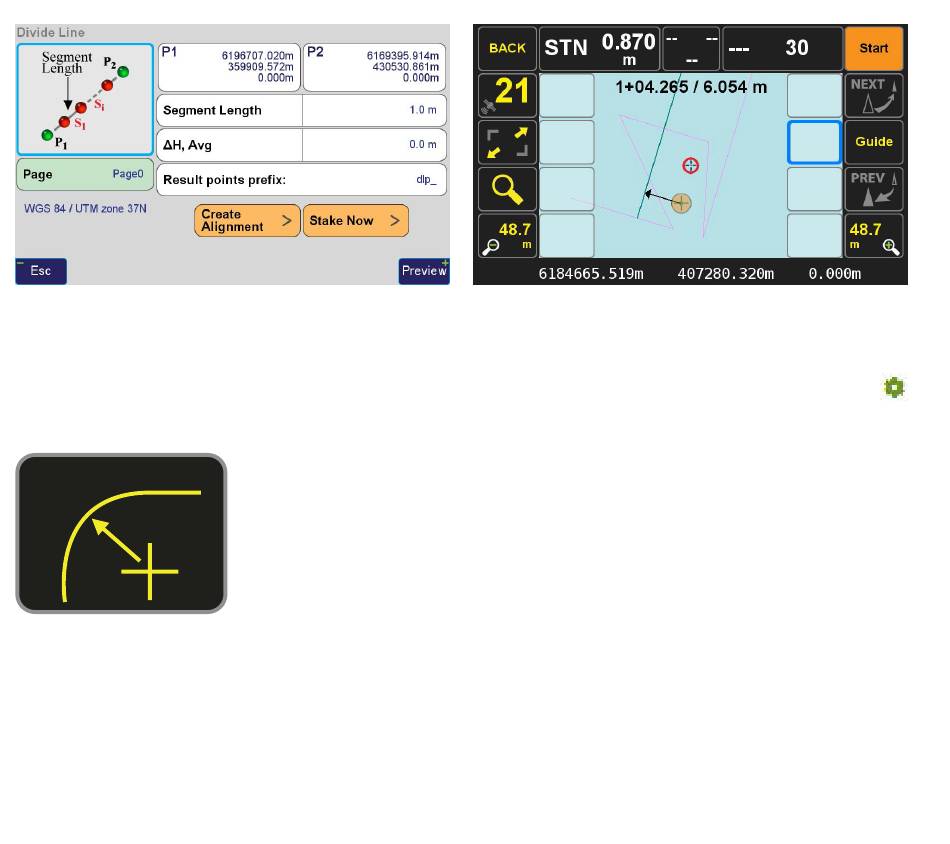

Stake Here.
This mode also uses current alignment, but a stake
point is created each time a survey point is collected.
Station / offset of current position relative to the align-
ment is displayed on map, and guide line is shown on
the screen pointing at the nearest alignment center-
line point
90
Depending on the option Snap to Centerline in
Stake-Here Mode, which can be changed in the Set-
tings screen called either by the "Settings" button in
Alignment Summary screen or by the "Settings" (
) button in Preview screen, each time the surveyed
point is ac-cepted, a new point is created with target
coordinates at the alignment centerline if Snap to
Centerline is on, or at the current position otherwise.
In the former case, the cut sheet for the point will con-
tain residual vector both in horizontal and vertical
directions between measured point and centerline.
In the latter case, the horizontal target and actual co-
ordi-nates are equal, and cut sheet contains vertical
discrepancy between designed and actual surface.
Stake Out Alignments
