TRIUMPH-2
Main Features*
• GPS L1/L2
• GLONASS L1/L2
• SBAS L1
• Positioning using Kalman Filter
SBAS DGPS
• RTK Rate up to 100 Hz
• Data Recording up to 2GB
• RAIM
• USB
• Multi-Base Code Differential Rover
• Advanced Multipath Reduction
• Internal GNSS Antenna
• Bluetooth® and WiFi Interface
• Internal Bluetooth/WiFi Antenna
• Internal Rechargeable Li-Ion Battery
1 3
1
2 4
3
2

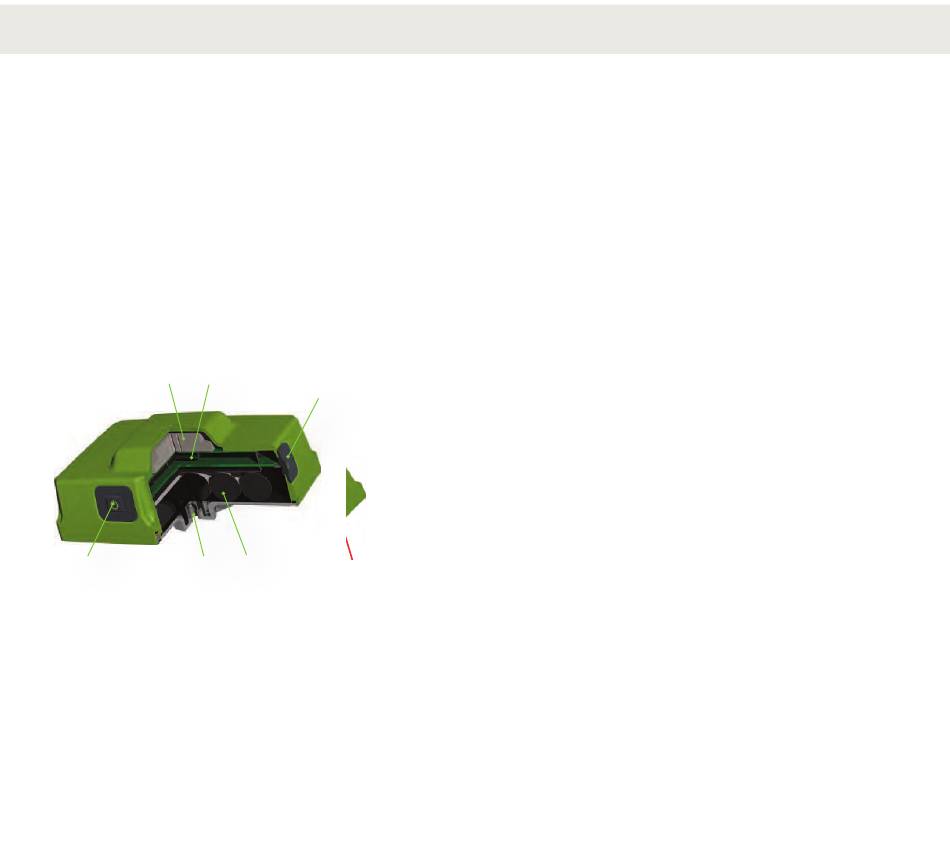

1. GNSS Antenna
2. On/Off button
3. GNSS Receiver, power board with Bluetooth, WiFi, and
on-board Memory
4. 1/4-20" Mounting Thread
5. Record button
6. Rechargeable Li-Ion battery pack
12
Description
Tracking Specification
Signals tracked
Performance Specifications
Autonomous
Static, Fast Static Accuracy
Kinematic Accuracy
RTK (OTF) Accuracy
DGPS Accuracy
Cold Start
Warm Start
Reacquisition
Power Specification
Battery
Operation Time
Input Voltage
5
GNSS Antenna Specifications
GNSS Antenna
6
Antenna Type
Ground Plane
I/O
Communication Ports
External Power port
Memory & Recording
Internal Memory
6
Raw Data Recording
5
4
Real Time Data
Input/Output
Output
Status Indicator
Environmental Specifications
Enclosure
Operating Temperature
Storage Temperture
Humidity
Dimensions
Weight

Specifications

JAVAD GNSS
Specifications
Total 216 channels: all-in-view (GPS L1/L2, GLONASS L1/L2, SBAS
L1) integrated receiver
GPS C/A, P1, P2, L2C (L+M)
GLONASS C/A, L2C, P1, P2
SBAS L1
<2 m
Horizontal: 0.3 cm + 0.5 ppm * base_line_length
Vertical: 0.35 cm + 0.4 ppm * base_line_length
Horizontal: 1 cm + 1 ppm * base_line_length
Vertical: 1.5 cm + 1 ppm * base_line_length
Horizontal: 1 cm + 1 ppm * base_line_length
Vertical: 1.5 cm + 1 ppm * base_line_length
< 0.25 m post processing; < 0.5 m real-time
<35 seconds
<5 seconds
<1 second
Internal Li-Ion battery ( 7.2 V, 8.85 Ah) with internal charger
Up to 25 hours
+10 to +16 volts
Internal
NGS calibrated
Microstrip (Zero Centered)
Antenna on a flat ground plane
Built-in USB to RS232 FTDI converter. 12Mbps USB 2.0 Full-Speed;
Wi-Fi (IEEE 802.11b/g);
Bluetooth V2.0+EDR Class 2 supporting SPP Slave Profile
1 port
Up to 2 GB of onboard non-removable memory for data storage
Up to 100 times per second (100Hz)
JPS, RTCM SC104 v. 2.x and 3.x, CMR
NMEA 0183 v. 2.x and 3.0, BINEX
Six LEDs, two function keys (MinPad)
Metal base, plastic cover; IP67
-40° C to +60° C **
-45° C to +85° C **
100% condensing
3.34 x 2.40 x 5.20 inches (85 x 61 x 132 mm)
1.23 lbs (0.56 kg)
* For the full list of standard and optional features see www.javad.com
** The operating temperature range of Li-Ion batteries is -30 ° C to +55°
The storage temperature of Li-Ion batteries is -20 ° C to +45°
Specifications are subject to change without notice
