o Lane by Lane — same as "Zig-zag", but
stakes are sorted by offset and passed
in a sort of spiral: first, the centerline is
passed in station ascending order, then
first left sideline in station descending
order, then first right sideline in station
ascending order, and so on. Correspond-

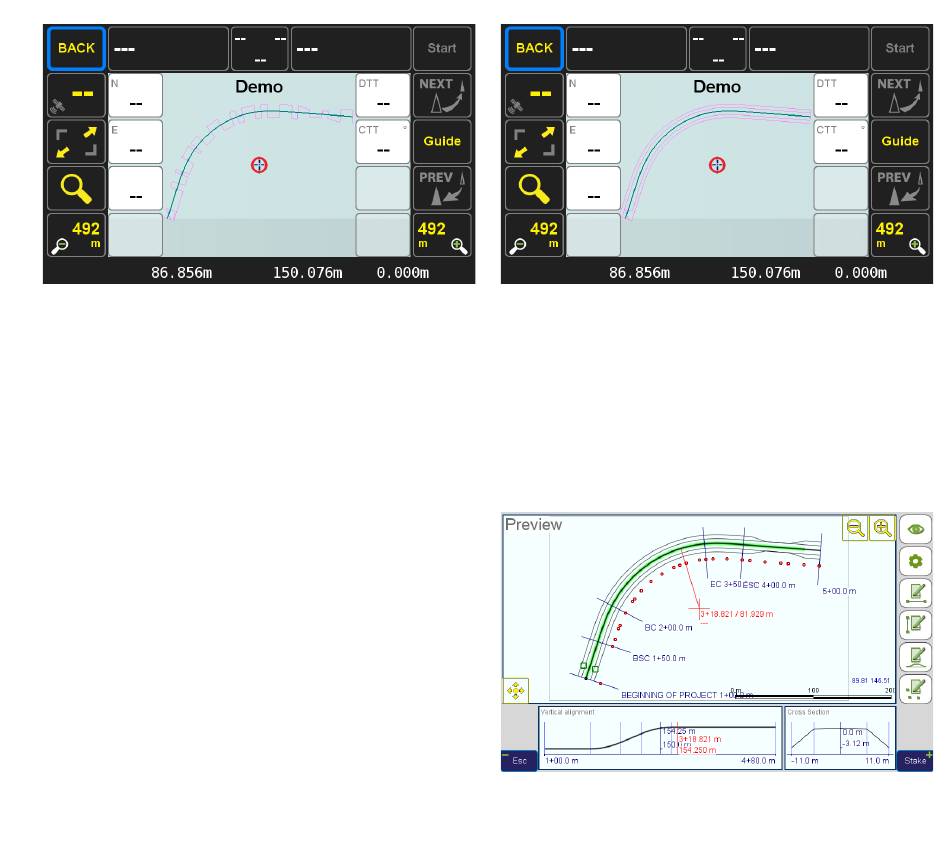

ing trajectory on map looks like shown
in Centerline Only — only centerline is
staked, cross sections and offset points
are ignored. The centerline can be off-
set by the "Offset" value, as shown (for
example offset value of 20 m) in Offset
Points Only — only offset points are
staked, other alignment components
are ignored...
www.javad.com
Figure 50
Stake Out Alignments
Figure 51
o Centerline Only — only centerline is
staked, cross sections and offset points
are ignored. The centerline can be off-
set by the "Offset" value, as shown (for
example offset value of 20 m) in Offset
Points Only — only offset points are
staked, other alignment components
are ignored..
