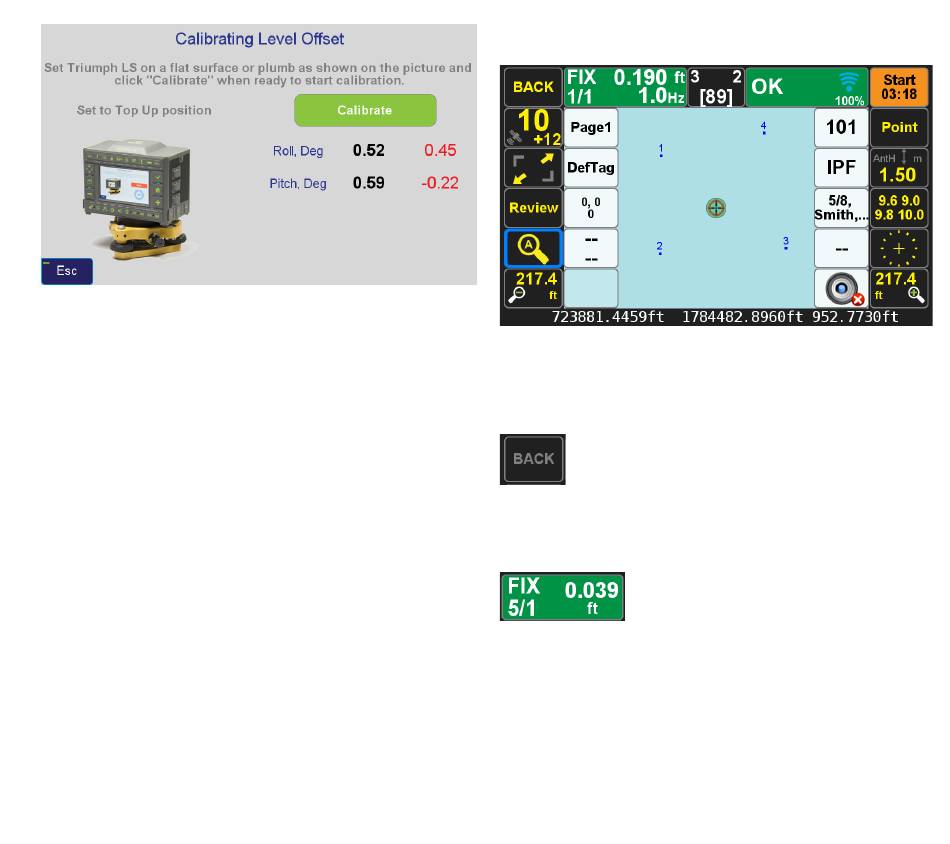

As the internal temperature of the TRIUMPH-LS changes, the
Level Offsets will need to be recalibrated. A temperature/
offset table is planned to be implemented in the future to
reduce the frequency of needed Level Offset calibrations.
If a high level of accuracy is required when staking and
collecting points and Correct for Tilts is used, it is important
to always check that the calibration is correct prior to data
collection and staking points. View the level readings when
the rover pole is plumbed with its level bubble and verify
that they are less than 0.2° (or your required precision). If
they are greater than the desired reading a recalibration
will be required. If the Calibrate Level procedure is done, a
recalibration of Level Offsets will also be needed. Every tenth
of a degree (0.1°) of inaccuracy in the level readings creates
appropriately one-hundredth of a foot (0.01') of error in the
horizontal position when the TRIUMPH-LS is used with a
5.3' high rover pole.
www.javad.com
On the top row of the Collect Action screen (from the left to
right) are the following buttons:
Back
Goes back to the previous screen.
Solution Mode
Shows the solution status (Fixed, Float, Standalone, DGPS)
and the instantaneous horizontal RMS of the solution. Tap it
to see the status of the six RTK engines. The number of fixed
RTK engines/ number of required RTK engines is shown
below the FIX label.
Collect Screens
Collect Action
