Javad TRIUMPH-LS User Manual page 96

Tags Switcher Screen

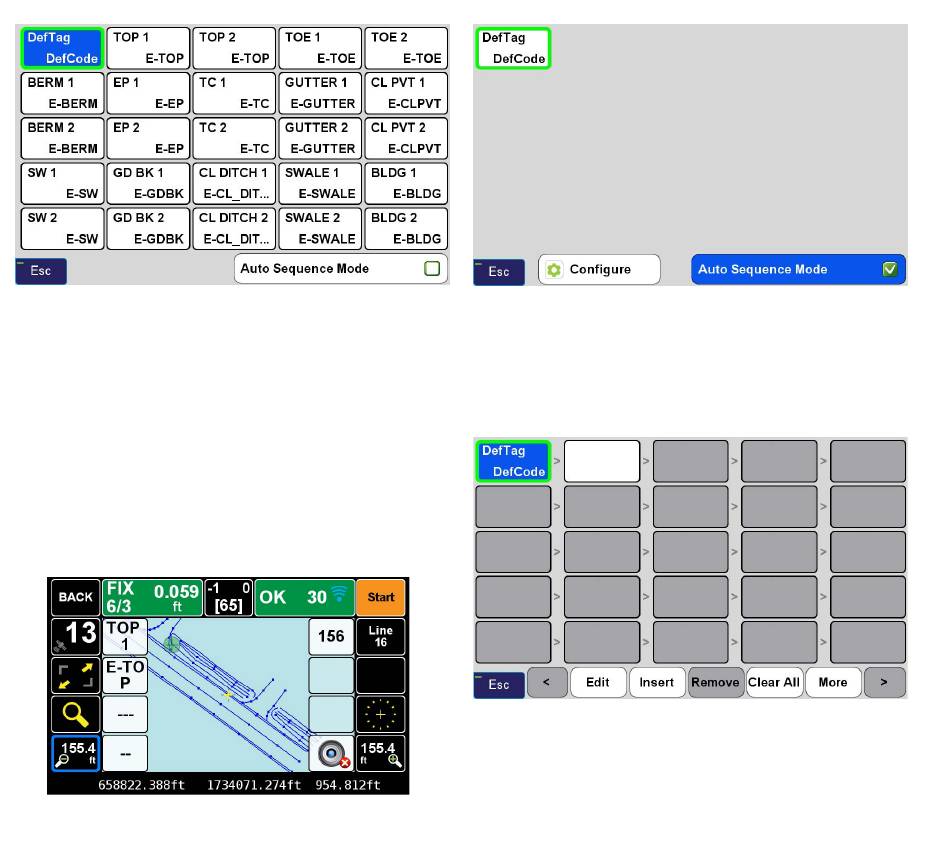

The Tags Switcher screen is used to select the ShapeTag that
will be associated with the next point. When opened it will
display your Favorite ShapeTags.
In this example we will enable Auto Sequence Mode by
checking it's box found in the ShapeTags Switcher screen.
Auto Sequence Mode with automatically cycle the
ShapeTags in the order shown in the ShapeTags Switcher
Auto Sequence screen. This is useful for creating cross
sections at intervals as you will see in this example.
96
ShapeTags Switcher Auto Sequence Screen
Next click Configure and you will be taken to the Auto
Sequence Setup screen. This screen can also be accessed
by selecting Auto Sequence from the ShapeTags & Codes
screen found in the Setup menu.
Auto Sequence Setup Screen
Click on the first empty box and click Insert to add a
ShapeTag.
