Verify Settings
Verify
Verify is discussed in the Quick Start Guide to The TRIUMPH-
LS section of the manual.
Correct for Tilts
When this button is checked it is not necessary for the pole
to be plumb to collect data for the point at the tip of the
pole. Using the readings from the tilt sensors and compass,
horizontal and vertical offsets from the TRIUMPH-LS to the
tip of the pole are calculated and the correction offsets are
applied to the RTK position. It is important for the Antenna
Height to be correctly entered for this feature to work
correctly.
The level sensors are sensitive to the internal temperatures
of the TRIUMPH-LS. To fine tune the level calibration, a
Level Offset calibration needs to be done. It is located in
the Action Setup menu. It is necessary to re-preform this
calibration as the internal temperature of the TRIUMPH-LS
changes. If the Correct For Tilts option is enable and the
most accurate positions are desired, it is essential to monitor
the Level Offset calibration and recalibrate when necessary.
Record GNSS
The GNSS data will be saved to a file when this option is
checked. The data will be associated with the current point
being collected. For the data to be saved the point must be
www.javad.com
Accepted. This data can be download from the TRIUMPH-
LS using the USB cable and be found in \VS Data\Maps\
ProjectName\Raw Data of the Storage Card or Mounted
Volume folder depending upon which is specified in the
Advanced Setup menu under Data Storage.
Revert Code to ShapeTag Default
When collecting a point, you may want to change the Code
associated with its ShapeTag. This option allows you to keep
the new Code for all subsequent points or revert back to the
default Code after collecting that single point.

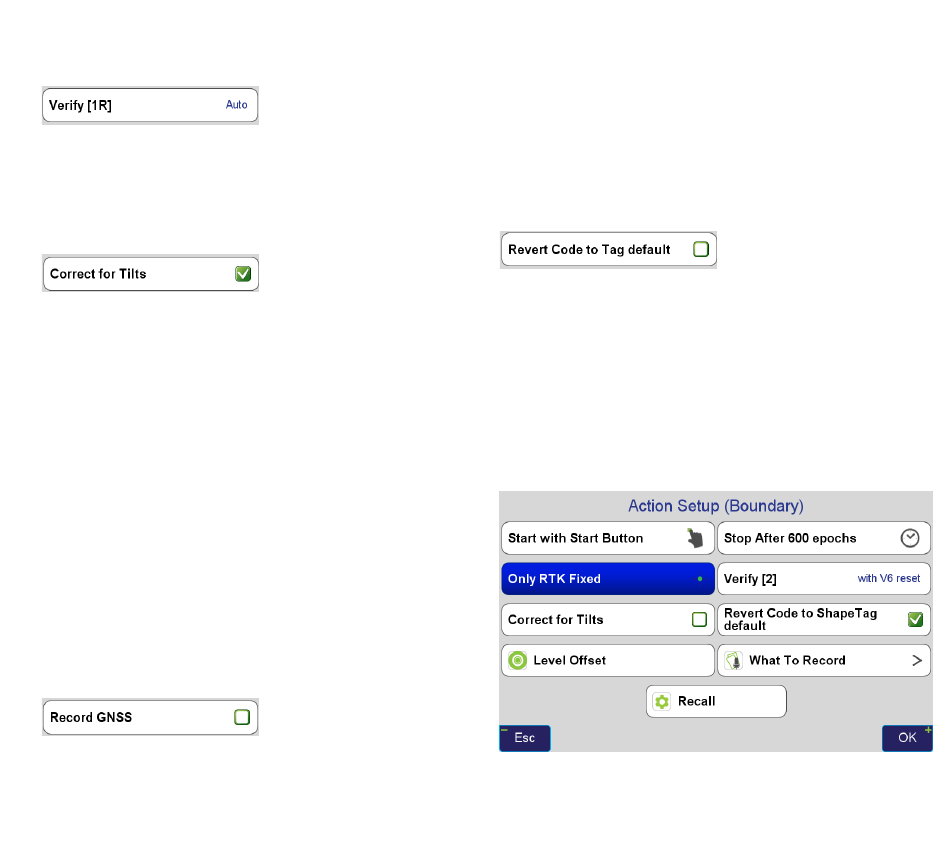

Level Offset is used to further improve the calibration of the
levels and is found in the Action Setup screen:
Level Offset is used to "zero" the level readings when the
