Accept or Reject displayed after data collection
Position
On the bottom of the screen you see the instantaneous
position coordinates. When you tap the Start button,
data collection will start. When it is stopped (by the timer,
manually or by Tilt), the average of all the epochs collected
is shown on the bottom, and the RMS of solutions on the
center of the map. Review them and tap Accept or Reject.
The Point Name, Code, ShapeTag and Attributes can be
modified at anytime before the Accept button is pressed.

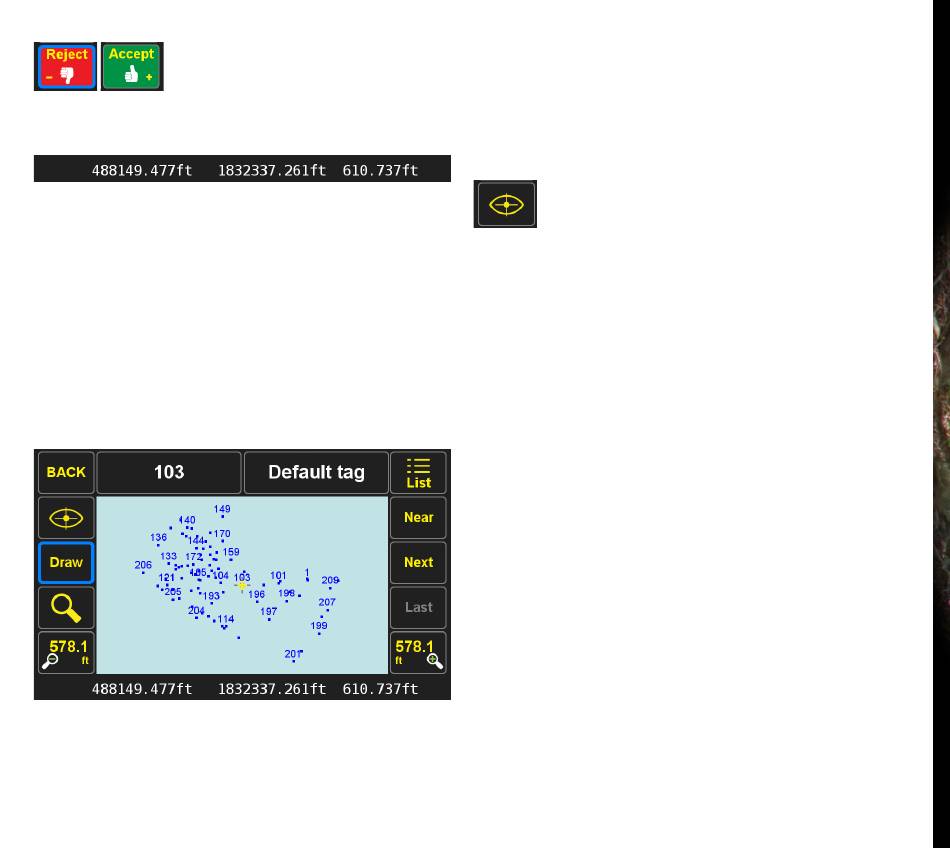

Review Screen
The Review screen is accessed by pressing the Review button
in the Collect Prepare screen. To Review or Edit a point, first
you need to select that point and center it on the screen. The
List (select via list), Near (the nearest point), Next (next to the
38
nearest point, and so on), and Last (the last point surveyed)
buttons help you to identify and center your desired point
on the map. The Name of the selected point is shown on the
top of the screen and its coordinate in the bottom. In this
screen you can also Add a point and Draw lines and circles.
More CAD functions are currently being developed.
When you identify the point that you want to review or edit,
tap the View Selected button which will take you to the Edit
screen. In the Edit screen the distance and heading (True
North or Grid North, depending on the coordinate system
of the Page) from your current position to the selected point
are shown graphically and numerically on the bottom of the
screen.
In Edit Screen you can Resurvey the selected point, add
photos or audio files to it and edit it.
Collect Screens
