Specifications

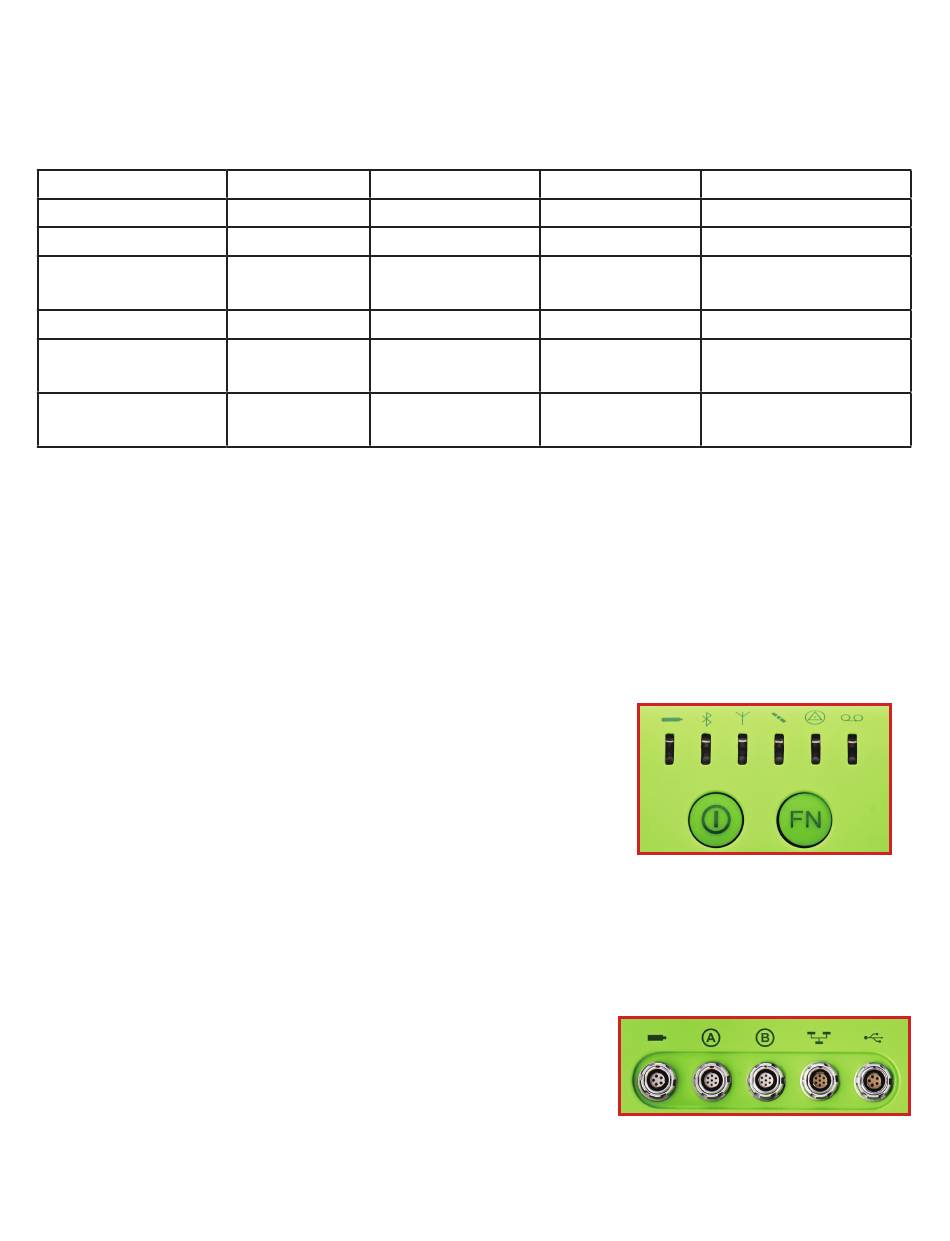

LED INDICATION

Function
BATTERY
1
BLUETOOTH
MODEM
SATELLITES
2
POSITION
RECORDING
3
1. LED solid according to the battery means receiver is ON without external power. Blinking every 1
sec according to the battery means external power is connected.
2. Effective number of satellites are total number of satellites tracked minus the number of non-GPS
systems tracked. For example if 8 GPS and 5 GLONASS are tracked the effective number of satellites
is 12.
3. RECORDING LED blinks on each recording.
MINPAD AND PORTS
TRIUMPH-1M is very simple to operate. Turn it on and six
green lights, one after the other, glow to tell you that all is going
well.
The ON/OFF button turns the receiver on and off.
FN button starts/stops data recording. Holding both FN and
ON/OFF buttons down for more than 30 seconds will reset
the receiver. Holding FN down while turning receiver ON us-
ing ON/OFF button (or after resetting receiver) until four LEDs
start to blink yellow and than releasing FN button while four
LEDs still blink yellow will bring receiver to its initial facto-
ry-default state (i.e., will clear NVRAM).
Power – used to connect the receiver to an external power
source.
Serial – used for communication between the receiver and
an external device.
Ethernet - used to connect the receiver to local network.
USB – used for high-speed data transfer and communica-
tion between the receiver and an external device.
4
Green Yellow
Full Half
Connected Searching
Marginal
Connected
Connectivity
8 or more 5 to 7
Fixed/Diff/ OK
Float/No-Diff
(Base)
Less than 10 min
Recording
memory left
Red OFF
Almost Empty OFF/No power
No connection Not Active
No connection Not Active
Less than 5 No Satellite
No Position Receiver OFF
Memory Full Not Active
