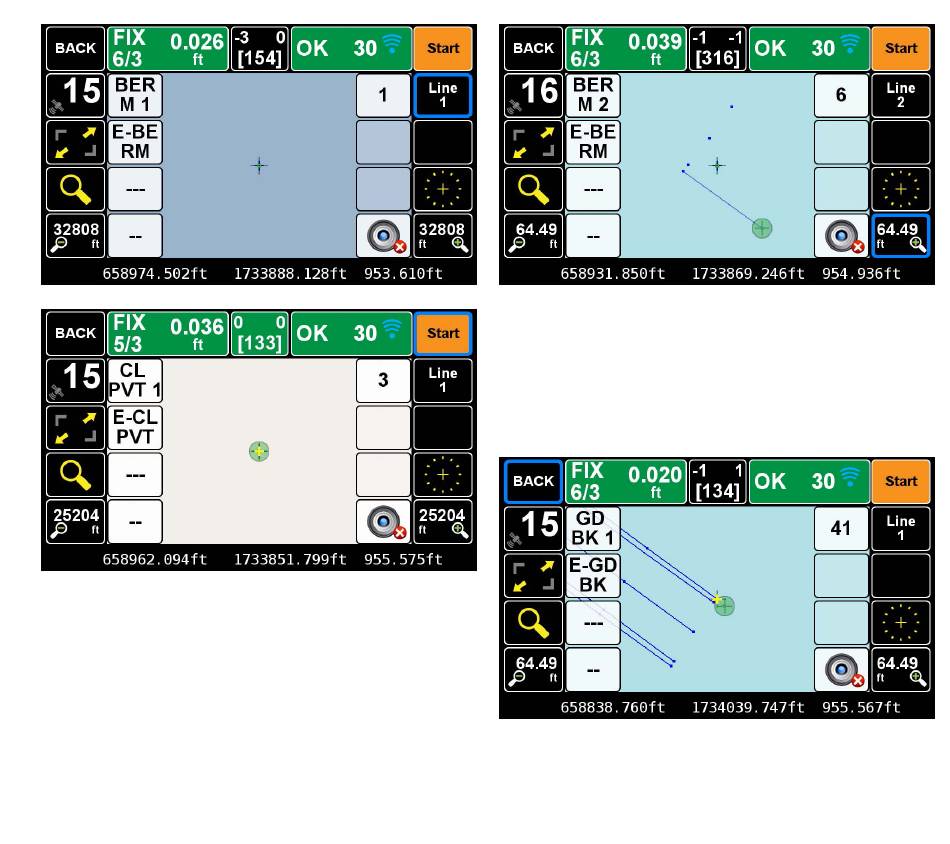

The Tags automatically sequence. The first Point has a Tag of
"BERM 1" and the third has a Tag of "CL PVT 1" .
When we collect Point "6" a line is drawn between Points "5"
and "6" since these both having a tag of "BERM 2":
www.javad.com
The number of Points in current Line being collected is
displayed below "Line". Here you can see we are ready to
collect point "2" in this line.
We continue collecting Points from sections of the road and
our lines are automatically drawn:
We come to a driveway and turn off Auto Sequence Mode
and set the Tag to "GD BK1" to collect the linework for the
driveway:
Using ShapeTags and Codes
