CoGo Basic
www.javad.com
Direct
Direct calculates the coordinate
of a new point (P ) given the
2
coordinate of a known point (P
bearing (B) and distance (D) from
P .
1

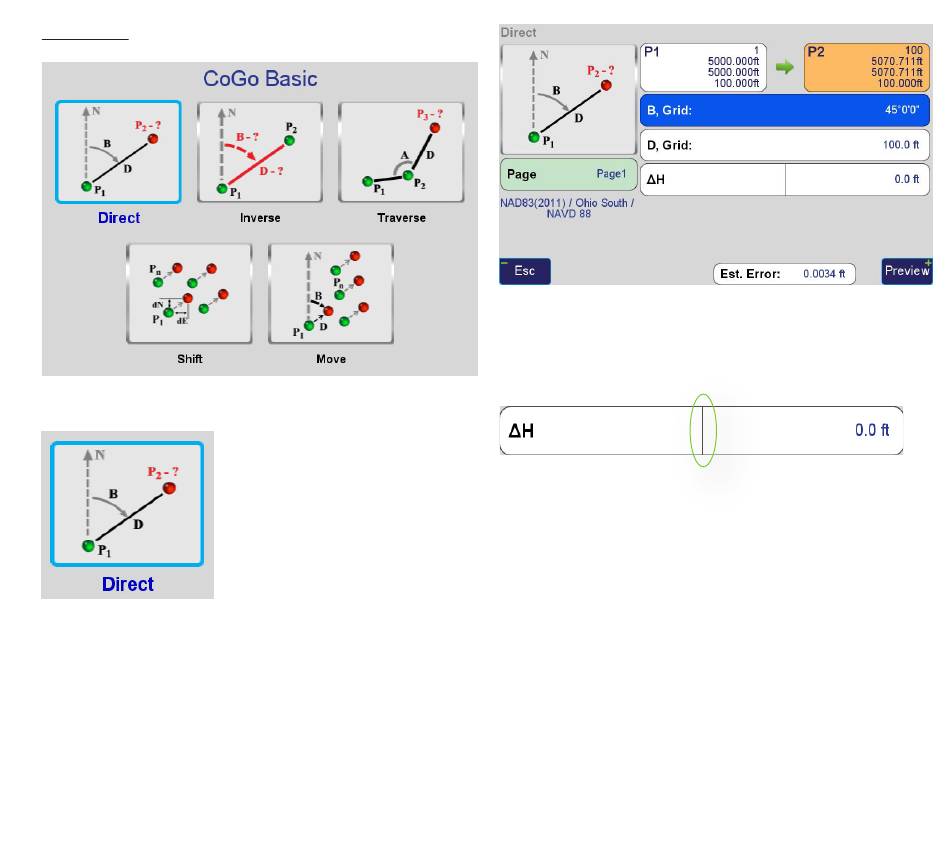

The input screen looks like this:
Clicking on any of the input boxes will display the entry
screens for these values.
Notice the vertical line in the white box shown between
ΔH and the input "0.0 ft"
Clicking on the left side of this white box with ΔH will
toggle it to the other options of H, Slope and H, Abs.
),
1
Clicking on the right side of this box will allow for the entry
of the value. This functionally is similar in all CoGo menus
when you see a white box separated with a vertical line in
the middle.
The resultant point is shown in the orange box. Clicking on
this box will allow you to edit the Name, Description and
Code of this point.
Once all the inputs have been entered click Preview to
view a map of calculation:
