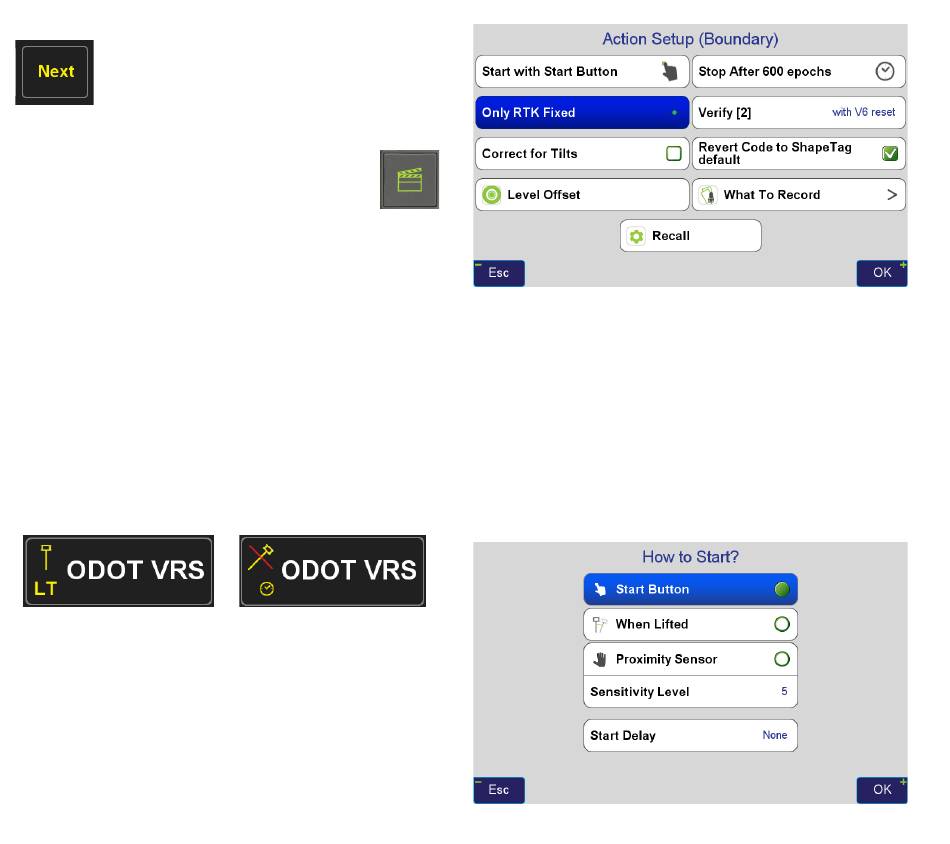

Next
Will take you to the Collect Action screen to collect Points,
Lines, Curves, and Trajectories. The Collect Action screen can
also be reached directly by the hardware button:
Action Group Setup
The button in the bottom center is for the Action Group
Setup menu. The name of the current Action Group profile
is shown on this button. The icon in the top left corner
indicates rather Tilt Compensation is in effect. Under the
icon, letter L, T, and clock symbol represent Lift, Tilt, and
Timed modes.
Tilt Compensation – On
Lift mode – On
Tilt mode – On
Tap this button to open the Action Group Setup screen and
modify the collection parameters.
30
Tilt Compensation – Off
Lift mode – Off
Timed mode – On
Collect Screens
Here options are given to set:
How to Start
Š
How to Stop
Š
Position Accuracy
Š
Verify Settings
Š
Correct for Tilts
Š
Record GNSS
Š
Revert Code to Tag default
Š
More Settings
Š
Š Level Offset
How to Start
