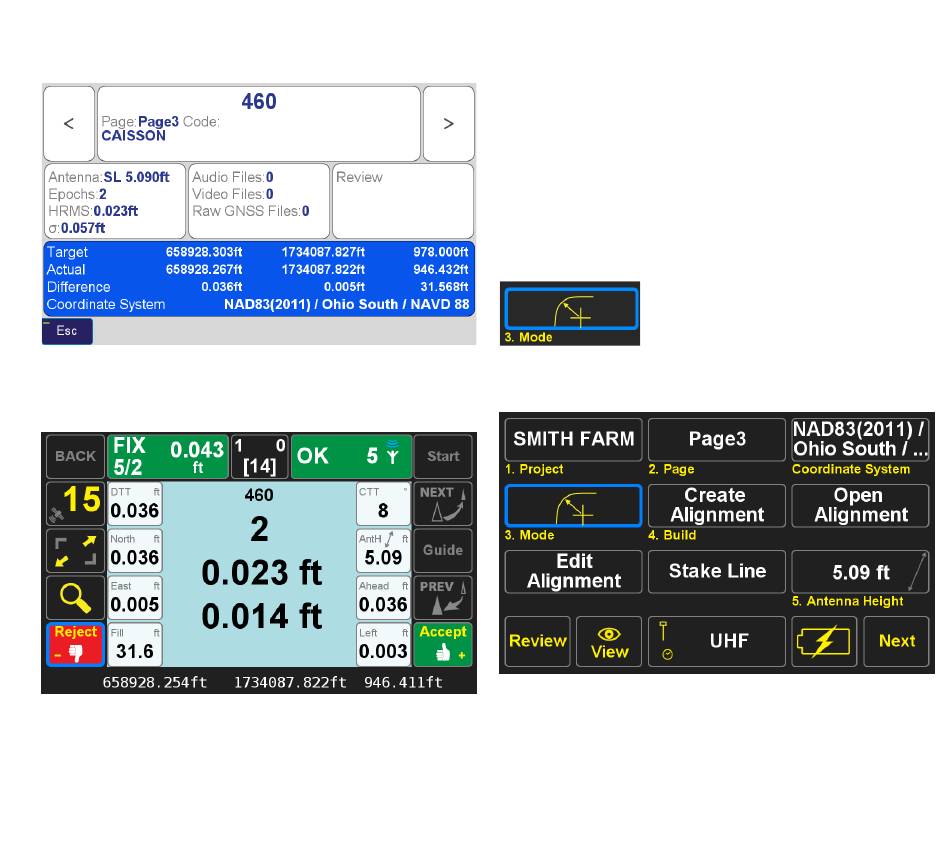

As an example, below is the point edit screen of a Design
Point which has already been staked.
Below is the screen as it appeared when the point was shot,
on the right is the Point information for this point.
www.javad.com
You will notice that Target, and Actual Coordinates are
displayed, as well as the coordinate differences. This is
useful for stakeout verification, and generation of cut sheets
which will be explained further in the Section Entitled "Stake
Points and Cut Sheets".

Staking Lines and Arcs

To configure J-Field to stake lines and arcs, press the Mode
button on the Stake prepare screen, so that the following
icon is displayed.
The purpose of this mode to allow easy staking of random
points relative to a line or arc.
You can also use the Edit Alignment command to modify
any existing alignments, or the Create Alignment command
to create an alignment based upon design plan information.
It is anticipated in this section of the manual, that the user is
interested in simplicity.
Stake Out Points
51
