Charging the TRIUMPH - LS
When the TRIUMPH-LS is turned off and charging, the four
LEDs will keep you apprised of its charging progress for
both of the individual battery packs as illustrated below.
As noted and shown below, all (4) green LEDs first appear
at 90%. Interrupting the charging and then resuming will
have no effect until the discharged state is less than 8 volts.
To reach maximum charge, allow an additional 20 minutes
once all green is seen.
Charged state: almost empty
Rate of charge: full speed
When the TRIUMPH-LS is powered off and is being charged,
the top (2) LEDs indicate the state of the (2) charged battery
packs and the bottom (2) LEDs indicate the rate of charge. If
the bottom LEDs are blinking yellow or red, it indicates that
temperatures are over 40° C and that charging will resume once
cooled. A complete charge takes about 5 hours when LS is cool.
Charged state: half charged
Rate of charge: full speed
Charged state: half charged
Half speed used to help get temp under 40° C
half speed : Rate : full speed
Charged state: fully charged
Green light will first appear at about 90% complete
Rate of charge: stopped
6
Monitoring the Temperatures and
other internal conditions and behaviors during the previous
30 hours, tap on the battery icon or press the Battery
hardware key.

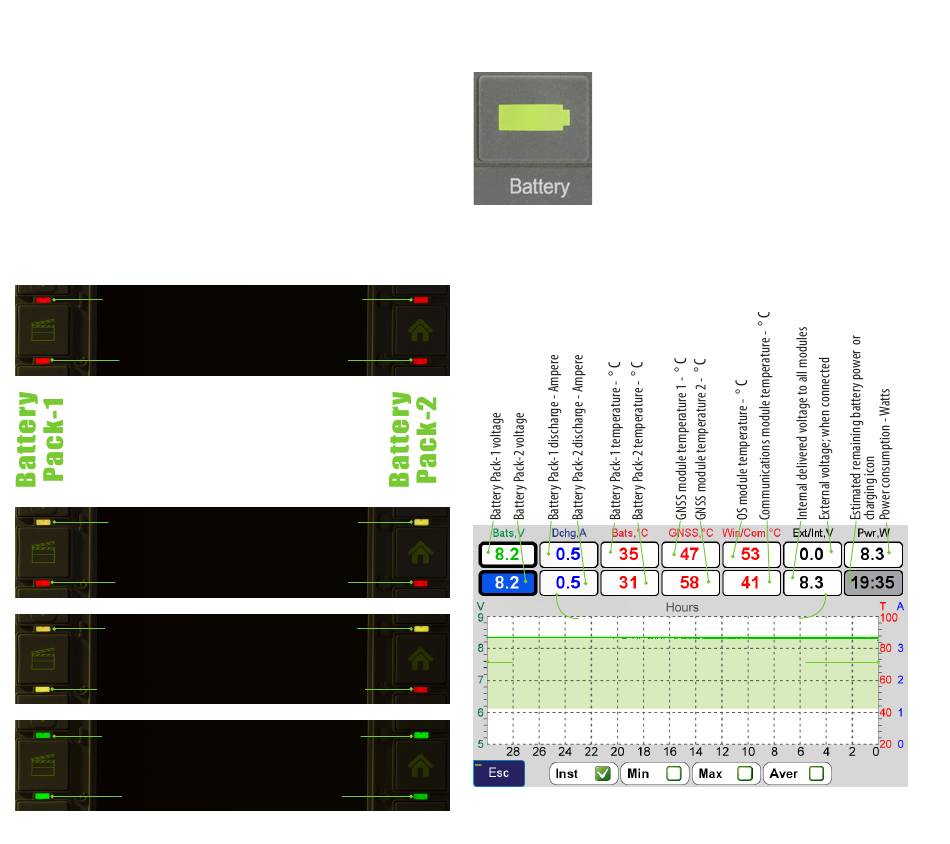

BATTERY STATS
Tap on numerical boxes to show / hide graphs
Power and temps for the last 30 hours
Check for Instantaneous, Minimum, Maximum and Average graphs
Introduction
Batteries
When the TRIUMPH-LS is turned on and
not charging, the upper right and lower
left LEDs give you a quick indication as to
the status of the two battery packs. For
more detailed information regarding the
status of the two battery packs as well as
