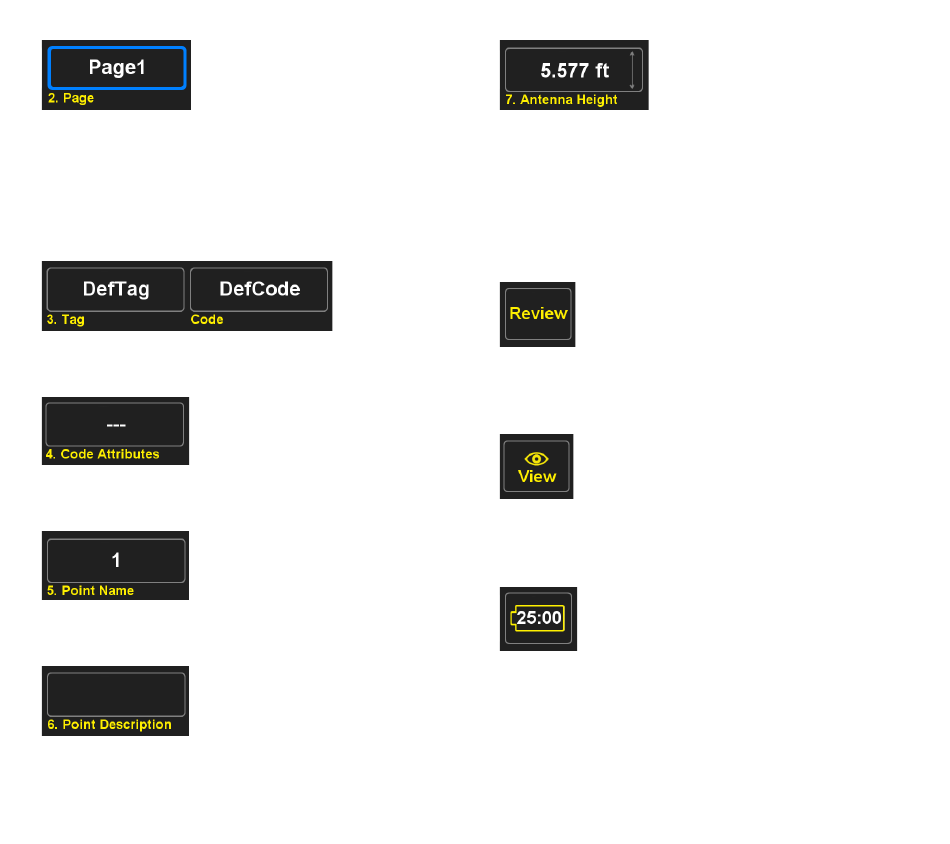

Select the Page that you want to store the points in, and the
Pages that you want to be shown on the map. The Show/
Hide feature of Page is another reason to use Pages. The
coordinate system of the selected Page will be shown in the
box to the right of the Page box in the Collect Prepare screen.
3. ShapeTag, Code
Select the ShapeTag and the Code for the next point.
4. Code Attributes
Enter Code Attributes, if any.
5. Point Name
Enter Point Name. The Point Name will be auto incremented.
6. Point Description
Enter the Point Description, if any.
www.javad.com
7. Antenna Height
Enter the Antenna Height (Vertical or Slant).
In the bottom of the Collect Prepare screen there are five
buttons:
Review
To view and edit the points in the current Project. The Review
screen will be explained later in this document.
View
To select which point attributes to be shown on the map
and set screen parameters.
Battery
Shows the estimated remaining battery time in HH:MM
format. Tap it to see details about the battery operation and
temperature history in different parts of the unit.
