Javad TRIUMPH-LS User Manual page 121

Press to switch from the right offset to the left offset.
This functionally is similar in the other CoGo functions.
www.javad.com

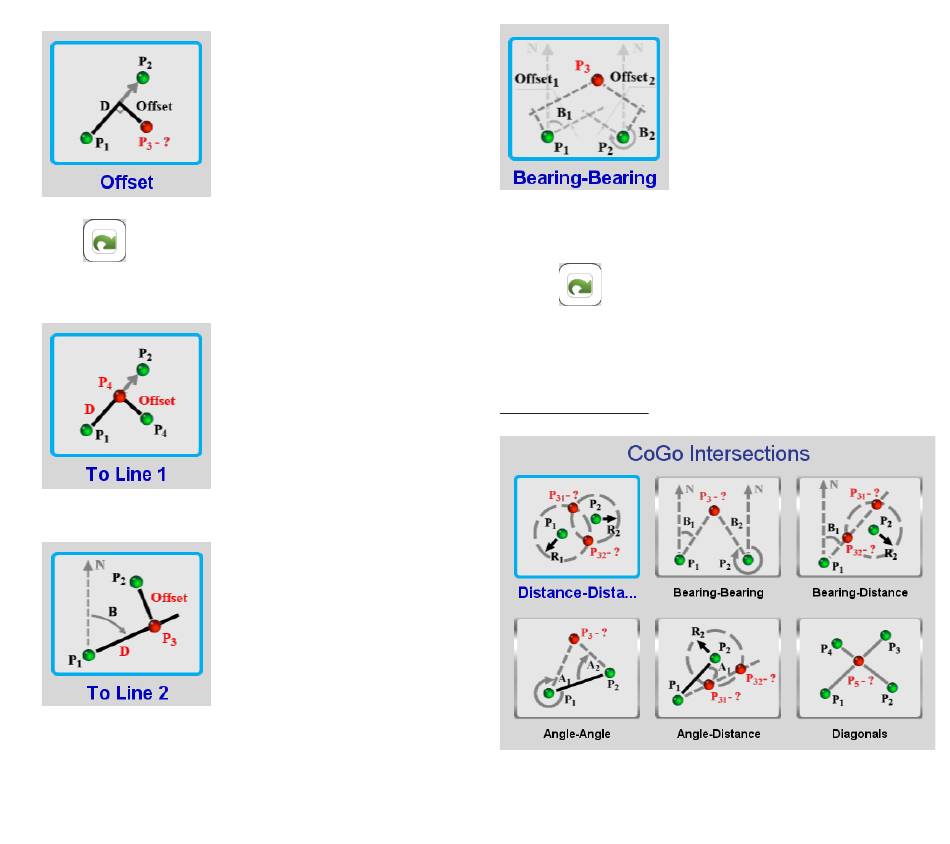

Offset
Offset calculates the coordinate
of an offset point (P ) along a
3
line between two known points
& P
(P ) at a distance (D) along
1 2
that line and at a specified
perpendicular Offset.
To Line 1
This function calculates a new
point (P ) along a line between
4
two points (P & P ) that is offset
1 2
perpendicular from a third point
(P ). It also displays the distance
3
(D) along that line and the Offset
distance.
To Line 2
Use this function to calculate a
new point (P ) at a given bearing
3
(B) from a point (P ) that is offset
1
perpendicular from a second point
(P ). It also displays the distance
2
(D) between P & P3 and the
1
Offset distance between P
centerlines. The right-of-way offsets are entered as Offset
and Offset . The resultant point, P
2
the two right-of-ways.
Use the
scenarios.
CoGo Intersections
& P
.
3 2
Using CoGo
Bearing-Bearing
Bearing-Bearing is used to
calculate offset points at
centerline intersections. P
are points on the two intersecting
centerlines and B
respective bearings of those
is at the intersection of
3
button to switch between 4 different offset
& P
1 2
& B
are the
1 2
1
