INVT Goodrive 200L Operation Manual page 66

inverters
Goodrive200L
Function
Name
code
switching-on
delay time
HDO
P06.09 switching-off
delay time
RO1
P06.10 switching-on
delay time
RO1
P06.11 switching-off
delay time
RO2
P06.12 switching-on
delay time
RO2
P06.13 switching-off
delay time
P06.14 AO1 output 0:Running frequency
P06.15 AO2 output
HDO
high-speed
P06.16
pulse output
selection

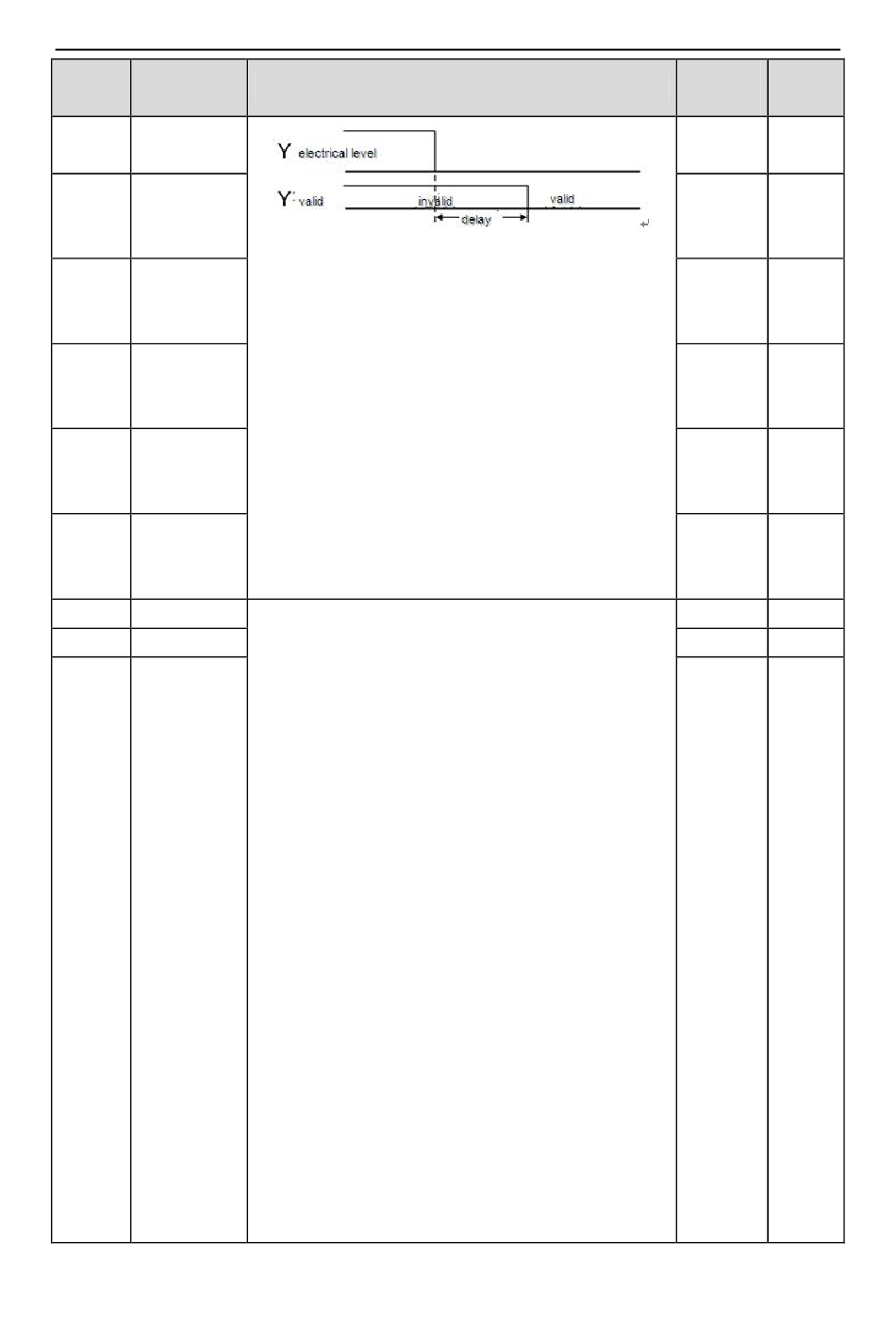

Detailed instruction of parameters
The setting range :0.000~50.000s
Note: P06.08 and P06.09 are valid only when
P06.00=1.
1:Setting frequency
2:Ramp reference frequency
3:Running rotation speed
4:Output current
(relative to the rated current of the inverter)
5:Output current
(relative to the rated current of the motor)
6:Output voltage
7:Output power
9:Output torque
10:Analog AI1 input value (The inverter(≤15kW)
can be set by the analog potentiometer on the
keypad and AI1 setting is not available for the
device which is 18.5kW or higer than 18.5 kW)
11:Analog AI2 input value
12:Analog AI3 input value
13:High speed pulse HDI input value
14:MODBUS communication set value 1
15:MODBUS communication set value 2
22: Torque current
(relative to the rated current of the motor)
23: Ramp reference frequency(with sign)
61
Function parameters
Default
Modify
value
○
0.000s
○
0.000s
○
0.000s
○
0.000s
○
0.000s
○
0
○
0
○
0
