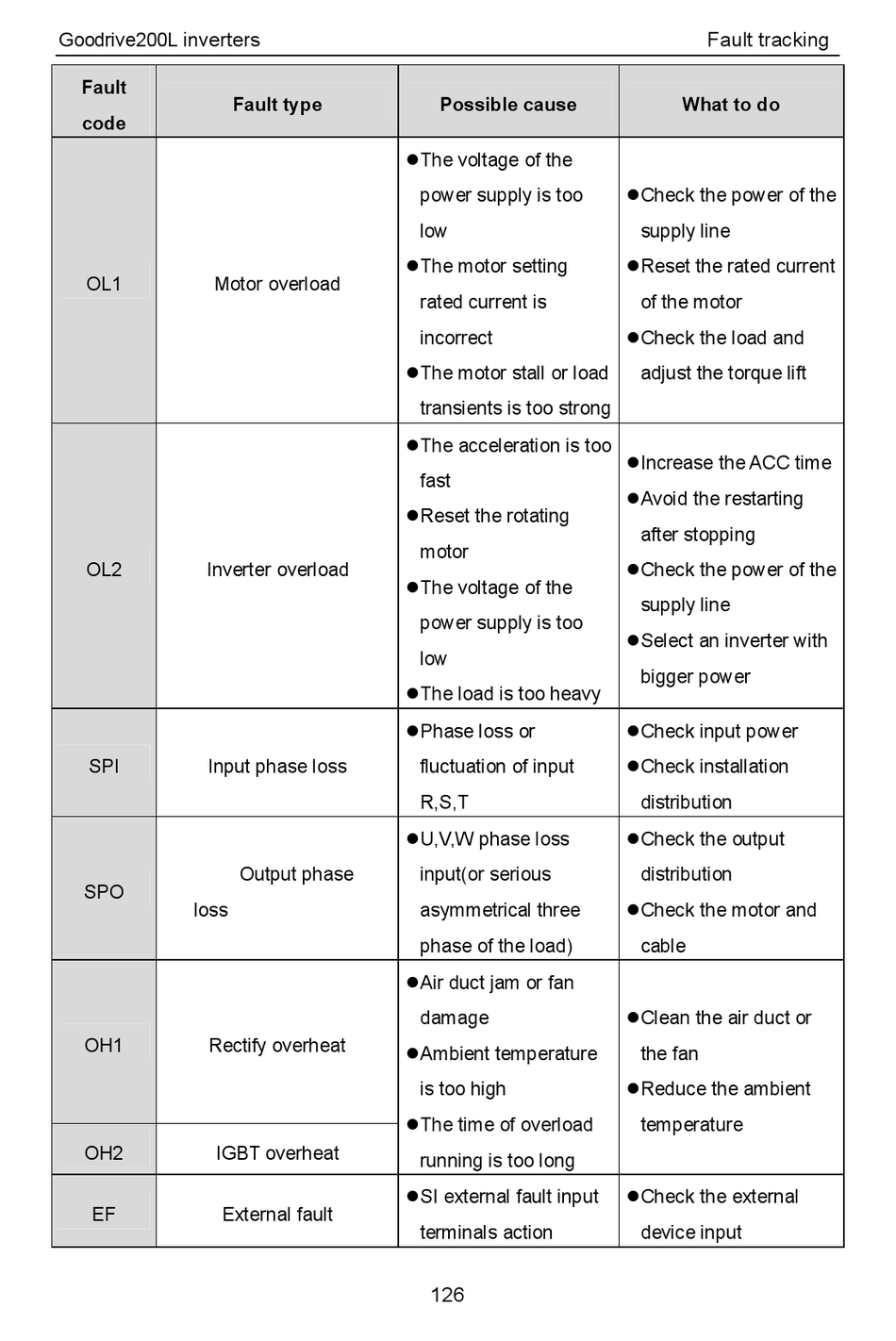

INVT Goodrive 200L Operation Manual page 131

inverters
Goodrive200L
Fault
code
OL1 Motor overload
OL2 Inverter overload
SPI Input phase loss
SPO
loss
OH1 Rectify overheat
OH2 IGBT overheat
EF External fault
Fault type
Output phase
Possible cause
 The voltage of the
power supply is too
low
 The motor setting
rated current is
incorrect
 The motor stall or load
transients is too strong
 The acceleration is too
fast
 Reset the rotating
motor
 The voltage of the
power supply is too
low
 The load is too heavy
 Phase loss or
fluctuation of input
R,S,T
 U,V,W phase loss
input(or serious
asymmetrical three
phase of the load)
 Air duct jam or fan
damage
 Ambient temperature
is too high
 The time of overload
running is too long
 SI external fault input
terminals action
126
Fault tracking
What to do
 Check the power of the
supply line
 Reset the rated current
of the motor
 Check the load and
adjust the torque lift
 Increase the ACC time
 Avoid the restarting
after stopping
 Check the power of the
supply line
 Select an inverter with
bigger power
 Check input power
 Check installation
distribution
 Check the output
distribution
 Check the motor and
cable
 Clean the air duct or
the fan
 Reduce the ambient
temperature
 Check the external
device input
