INVT Goodrive 200L Operation Manual page 59

inverters
Goodrive200L
Function
Name
code
Terminals
control
P05.13
running
mode
Detailed instruction of parameters
BIT3:S4 virtual terminal
BIT4:S5 virtual terminal
BIT5:S6 virtual terminal
BIT6:S7 virtual terminal
BIT7:S8 virtual terminal
BIT8:HDI virtual terminal

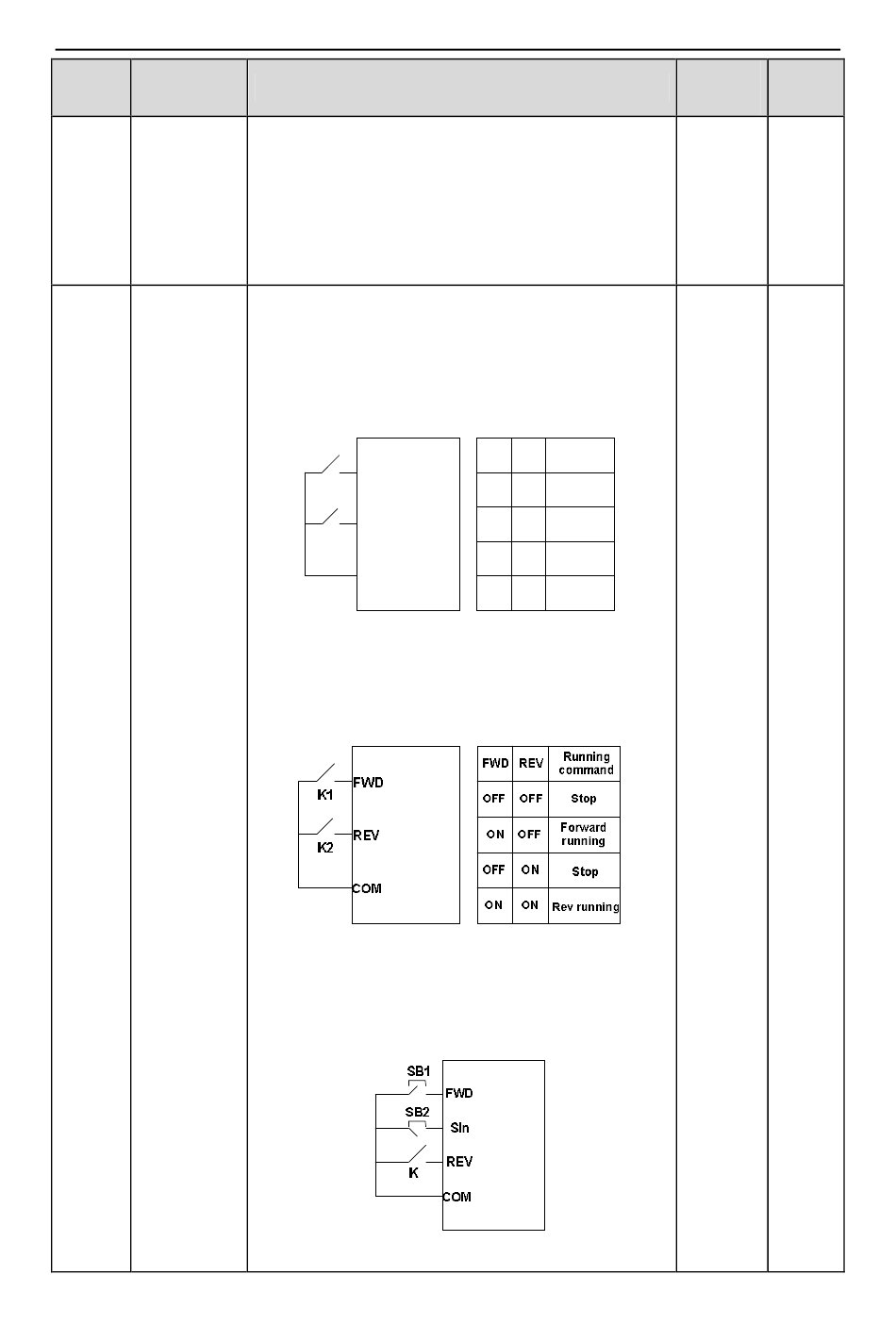

Set the operation mode of the terminals control
0:2-wire control 1, comply the enable with the
direction. This mode is widely used. It determines
the rotation direction by the defined FWD and
REV terminals command.
FWD
K1
REV
K2
COM
1:2-wire control 2; Separate the enable from the
direction. FWD defined by this mode is the
enabling ones. The direction depends on the
state of the defined REV.
2:3-wire control 1; Sin is the enabling terminal on
this mode, and the running command is caused
by FWD and the direction is controlled by REV.
Sin is natural closed.
The direction control is as below during
Running
FWD REV
command
OFF OFF Stop
Forward
ON OFF
running
OFF ON Rev running
ON ON Hold
54
Function parameters
Default
Modify
value
◎
0
