USB interface on mounting unit
Mounting units 5ACCMA00.0001-000 and 5ACCMA00.0101-000 are equipped with a USB 2.0 interface on the
side. For more information, see section

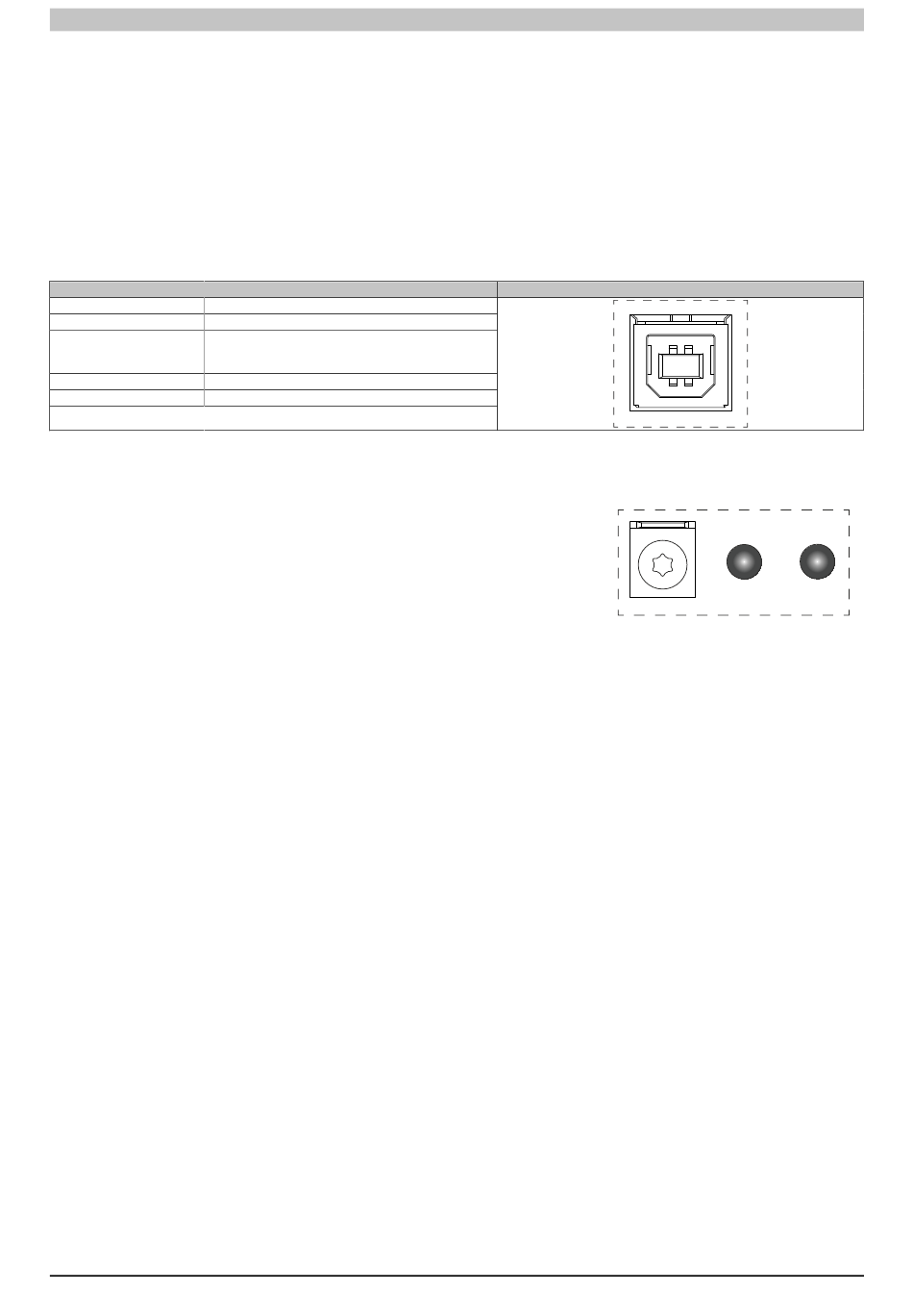

4.1.5.1.7 USB In interface
The USB In interface is a USB 2.0 type B interface that is used to transfer USB data. It must be connected to a USB
interface on the output device (e.g. B&R industrial PC) if DVI operation or SDL operation with a USB type A/B cable
was chosen as the transfer method. For possible transfer methods, see section
If the interface is connected to an output device (e.g. B&R industrial PC), then USB 2.0 transfer rates are possible
on the USB1 and USB2 interfaces.
Standard
Variant
Transfer rate
Current-carrying capacity
1)
Cable length
1) The USB interfaces are protected by a maintenance-free "USB current-limiting switch" (max. 500 mA).
4.1.5.1.8 Brightness controls
The brightness controls can be used to set the brightness of the backlight
on the Automation Panel in DVI operation. Buttons have no function during
SDL operation; the brightness can be set via the B&R Control Center, for
example.
Automation Panel 5000 User's manual V2.11
"USB interface" on page
Description
USB 2.0
Type B, female
Low speed (1.5 Mbit/s)
Full speed (12 Mbit/s)
High speed (480 Mbit/s)
Max. 500 mA
Max. 5 m (without hub)
-
114.
"Connection options" on page
Figure
Technical data
21.
