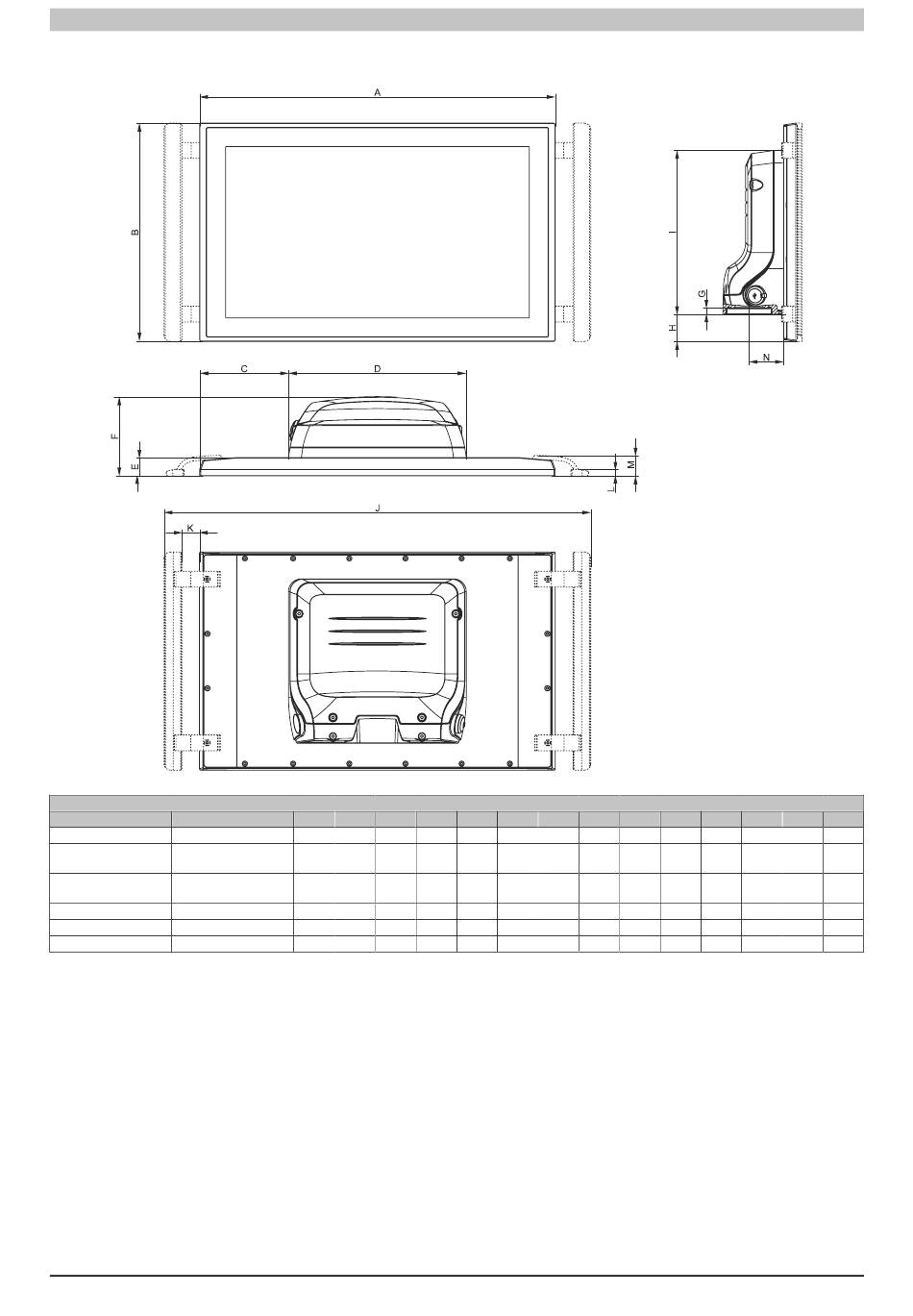

AP5120/5130 with flange connection on bottom - Dimensions
Type Model number
15.0" single-touch 5AP5120.1505-000
15.6" multi-touch 5AP5130.156B-000
5AP5130.156C-000
18.5" multi-touch 5AP5130.185B-000
5AP5130.185C-000
19.0" single-touch 5AP5120.1906-000
21.5" multi-touch 5AP5130.215C-000
24.0" multi-touch 5AP5130.240C-000
Automation Panel 5000 User's manual V2.11
Panels
A B C D E
389 299 54.5 280 28
433 269.5 76.5 280 29
494 306 107 280 29
461.2 372 90.6 280 28
560.5 344 140.25 280 29
617.5 375 168.75 280 29
F G H I J
124 10 20 259 501
125 10 5.25 259 545
125 10 23.5 259 606
124 10 56.5 259 573.2
125 10 42.5 259 672.5
125 10 58 259 729.5
Technical data
K L M N
28 10 32.2 54.5
28 10 32.2 54.5
28 10 32.2 54.5
28 10 32.2 54.5
28 10 32.2 54.5
28 10 32.2 54.5
