Appendix D

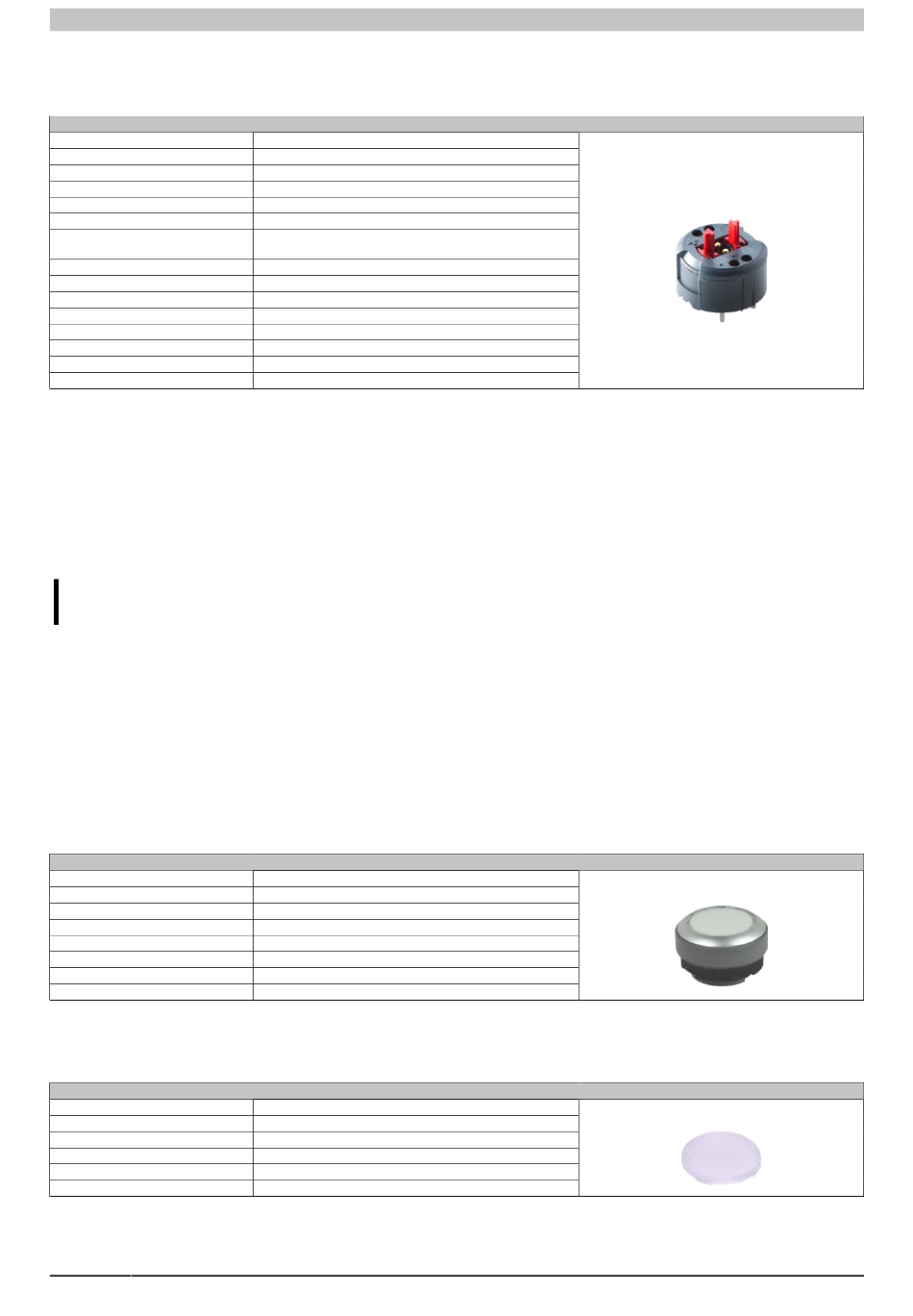

D.8 Switching element RAFIX 22 FS+ PCB gold, 1.20.126.414/0000
The switching element is used for the emergency stop.
Manufacturer
Type
Manufacturer number
Contact system
Contact material
Contacts
Normally closed contact with positive
separation per IEC 60947-5-1
Connection
Service life (switching cycles)
B10 value (switching cycles)
AC/DC operating voltage
AC/DC operating voltage
AC/DC operating current
AC/DC operating current
Switching capacity
1) The alarm contact is only momentary and not designed as a maintained contact.
D.9 5ACCSE00.000x-00x
B&R recommends RAFIX operating and switching elements with model number 5ACCSE00.000x-00x for use on
expansion covers.
RAFIX operating and switching elements with model number 5ACCSE00.000x-00x must be ordered
separately.
D.9.1 5ACCSE00.0000-000
General information
• 1x pushbutton
• 1x colored lens (no color, red, yellow, green, blue)
• 1x switching element
• 1x LED
D.9.1.1 Pushbutton RAFIX 22 FS+, 1.30.270.921/2200
Manufacturer
Type
Manufacturer number
Quantity
Form of lens
Contact function
Service life (switching cycles)
B10 value (switching cycles)
D.9.1.2 Colored lens RAFIX 22 FS+, 5.49.263.062/1000
Manufacturer
Type
Manufacturer number
Quantity
Form of lens
Lens color
204
Switching element 1.20.126.414/0000
RAFI
RAFIX 22 FS+ - PCB gold, emergency stop "Plus 1"
1.20.126.414/0000
Self-cleaning bridge contact
Au
2 normally closed contacts + 1 alarm contact
Yes
THT soldered connection with anti-rotation element
50,000 at 10 mA / 24 VDC
65,000
Min. 1 V
Max. 35 V
Min. 1 mA
Max. 100 mA
Max. 250 mW
Table 86: Switching element 1.20.126.414/0000
Pushbutton 1.30.270.921/2200
RAFI
RAFIX 22 FS+
1.30.270.921/2200
1
Flat lens
Momentary
1,000,000
1,300,000
Table 87: Pushbutton 1.30.270.921/2200
Colored lens 5.49.263.062/1000
RAFI
RAFIX 22 FS+
5.49.263.062/1000
1
Flat lens
Colorless
Table 88: Colored lens 5.49.263.062/1000
1)
