Technical data

4.1.6 Equipping panels with expansion units

Expansion options can be installed on AP5230 panels. There are two variants of expansion options:
• Expansion cover
• Expansion unit with operating elements
Expansion covers (5ACCKP00.xxxx-000)
Expansion covers are not equipped by B&R with operating elements. Depending on the variant, 7 to 14 cutouts
are available to be equipped with operating elements by the user.

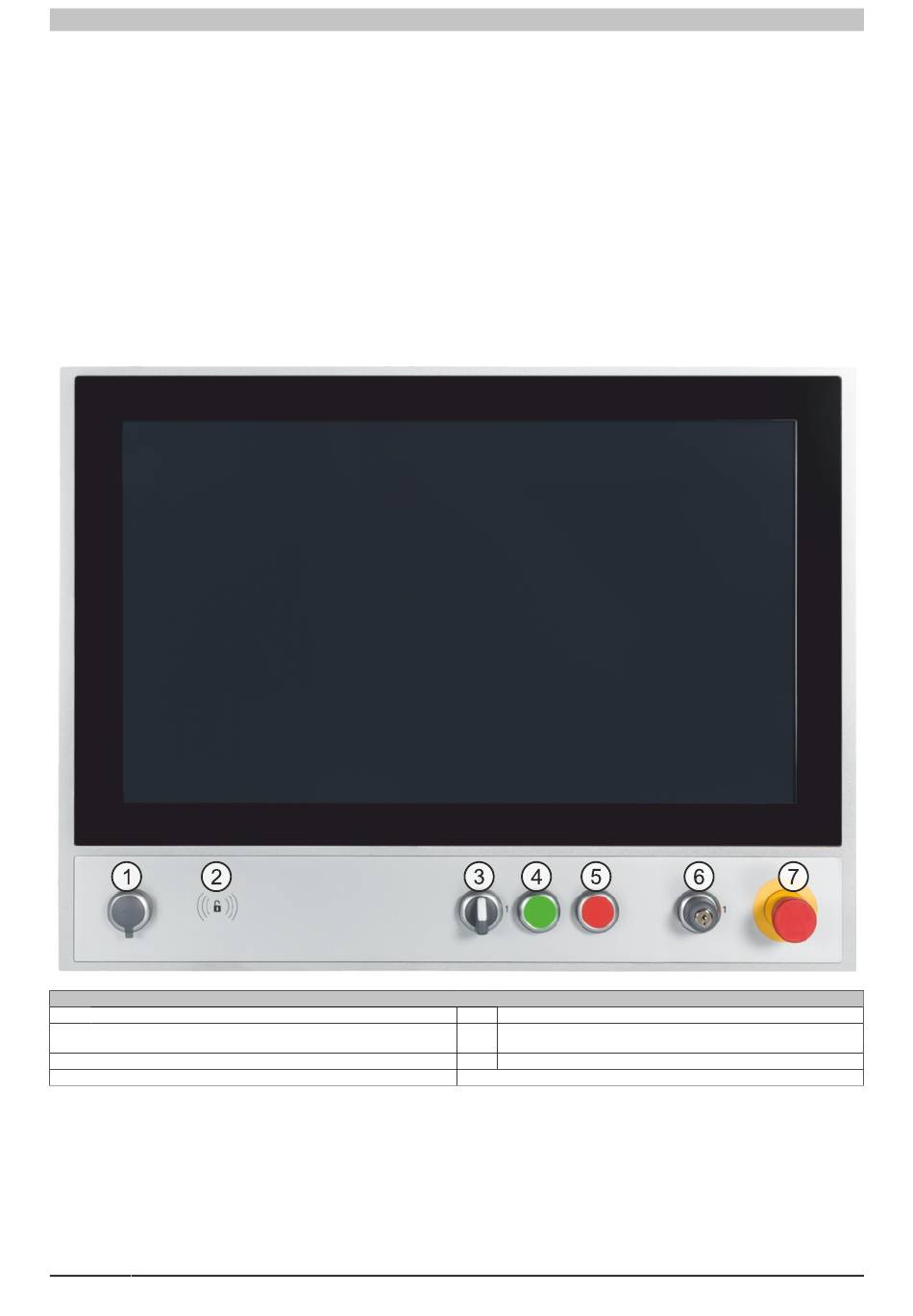

Expansion units with operating elements (5ACCKP0x.xxxx-000)
Expansion units with operating elements are equipped with a USB interface on the front, green and red pushbuttons,
selector switch or blue pushbutton, key switch and emergency stop device or an RFID interface
units" on page 127).
1 Front USB
3 Selector switches (5ACCKP01.xxxx-000 and 5ACCKP03.xxxx-000)
Blue pushbuttons (5ACCKP04.xxxx-000 and 5ACCKP05.xxxx-000)
5 Red pushbutton
7 Emergency stop
62
Legend
2 RFID interface (5ACCKP03.xxxx-000 and 5ACCKP05.xxxx-000)
4 Green pushbutton
6 Key switch
Automation Panel 5000 User's manual V2.11
(see "Expansion
-
