D.9.6 5ACCSE00.0004-000
General information
• 1x selector switch
• 1x switching element

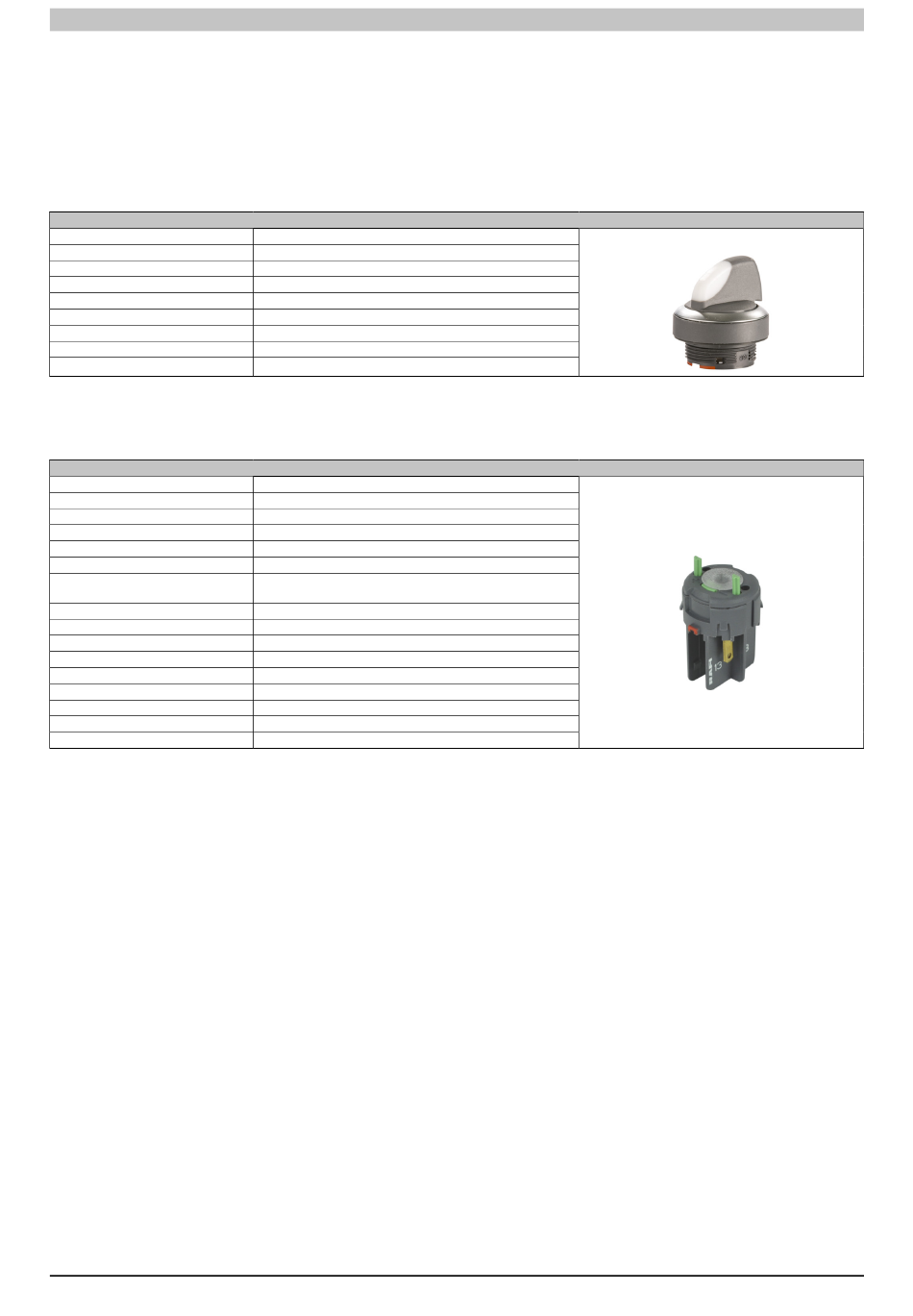

D.9.6.1 Selector switch RAFIX 22 FS+, 1.30.272.102/2200
Manufacturer
Type
Manufacturer number
Illumination
Contact function
Angle of rotation
Service life (switching cycles)
B10 value (switching cycles)
Actuation torque
D.9.6.2 Switching element RAFIX FS, 1.20.126.102/9000
Manufacturer
Type
Manufacturer number
Quantity
Contact system
Contacts
Normally closed contact with direct
opening action per IEC 947-5-1
Connection
Lamp
Service life (switching cycles)
B10 value (switching cycles)
Min. AC/DC operating voltage
Max. AC/DC operating voltage
Min. AC/DC operating current
Max. AC/DC operating current
Max. switching capacity
Automation Panel 5000 User's manual V2.11
Selector switch 1.30.272.102/2200
RAFI
RAFIX 22 FS+
1.30.272.102/2200
White
Maintained
1 x 90°, L form
300,000
400,000
Max. 1.5 Nm
Table 107: Selector switch 1.30.272.102/2200
Switching element 1.20.126.102/9000
RAFI
RAFIX FS
1.20.126.102/9000
1
Self-cleaning bridge contact
1 normally open contact
Yes
Connector 2.8x0.8 mm
LED clip
1,000,000
1,300,000
5 V
35 V
1 mA
100 mA
250 mW
Table 108: Switching element 1.20.126.102/9000
Appendix D
Example image
Example image
