Installation and wiring

5.2 Automation Panel 5000 - Installation

The Automation Panel 5000 is installed on the swing arm system using a rotary flange.

5.2.1 Installation with flange

Information:
Before installing the Automation Panel on a swing arm system, it must be checked as to whether the
sealing ring is installed on the flange. In addition, only the flange must be installed on the Automation
Panel. For the defined procedure, see section
page 149.
An outer diameter of 47.5 to 48.4 mm is permitted for the swing arm shaft. The end of the swing arm
shaft installed on the flange must be chamfered at a 45° angle and deburred.

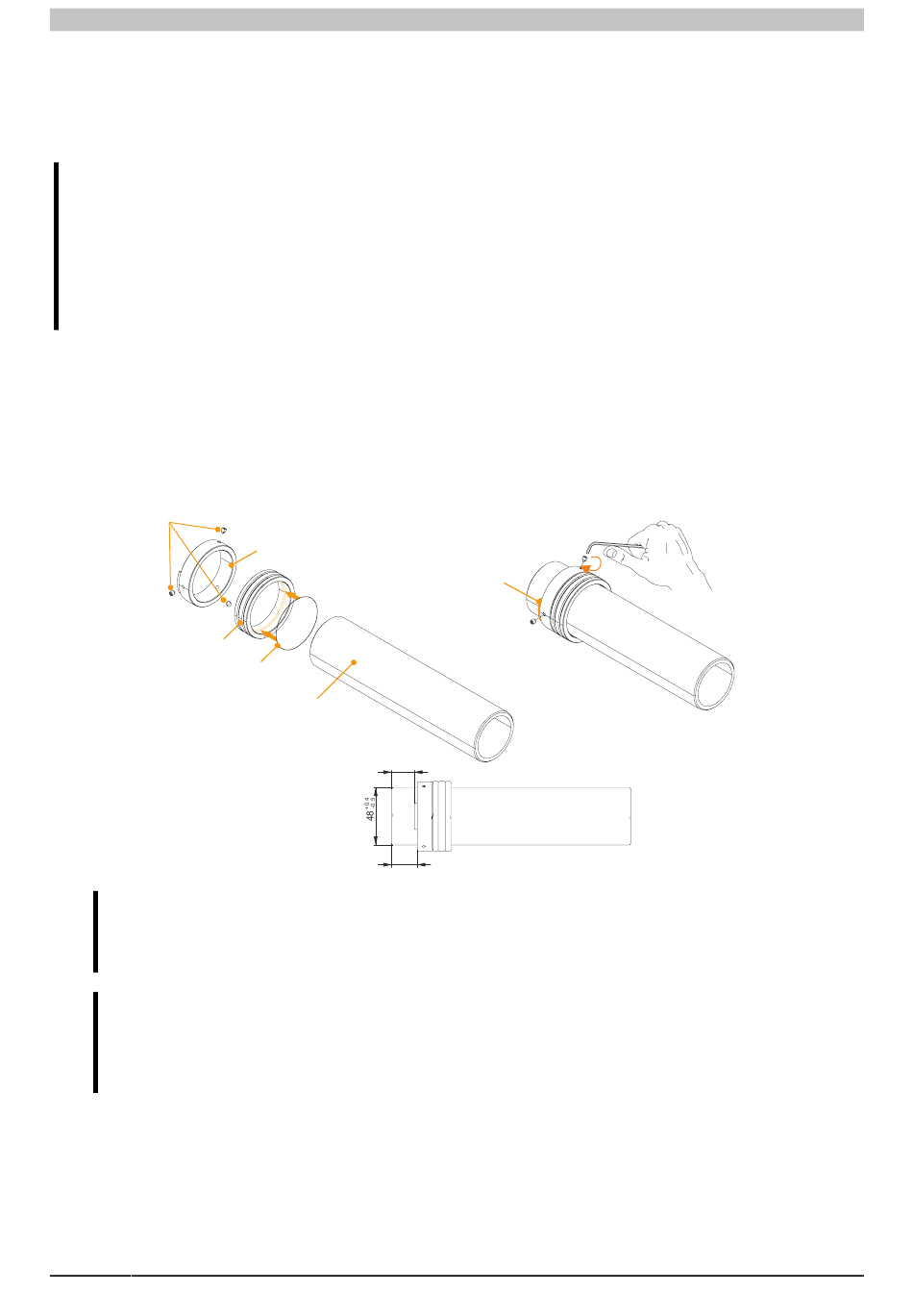

1. The sealing ring must be placed in the groove of the compression ring.
Slide the rotary swivel and compression ring onto the swing arm shaft and fasten them using the 3 M6
headless screws (hex recess, size 3) with a tightening torque of 5 Nm. The rings must be installed such that
the rotary swivel (with catch) is connected to the flange first. The orientation of the rotary swivel should be
taken into account (see
the bottom edge of the rotary swivel must be 21.5 mm ±0.5 mm (corresponds to a distance of 19 mm ±0.5
mm from the bottom edge of the swing arm shaft to the ring catch). Free space between the two rings is
not permitted.
3x M6 screws
Compression ring
Sealing ring
Warning!
The headless screws are equipped with a special screw locking mechanism and only designed
to be used once. New headless screws must be used if removing and reinstalling.
Warning!
The distance between the bottom edge of the swing arm shaft and the bottom edge of the rotary
swivel must be 21.5 mm ±0.5 mm. If this measurement is not observed, then the Automation Panel
will not be sufficiently stable.
144
"" on page 145). The distance from the bottom edge of the swing arm shaft and
Rotary swivel (with catch)
Swing arm shaft
19
21.5
"Installing the 5ACCFL00.0000-000 rotary flange" on
Ring catch
Important:
The orientation of the rotary swivel is also the orientation
of the panel on the swing arm system.
See item 3!
Automation Panel 5000 User's manual V2.11
! 5 Nm
