Technical data

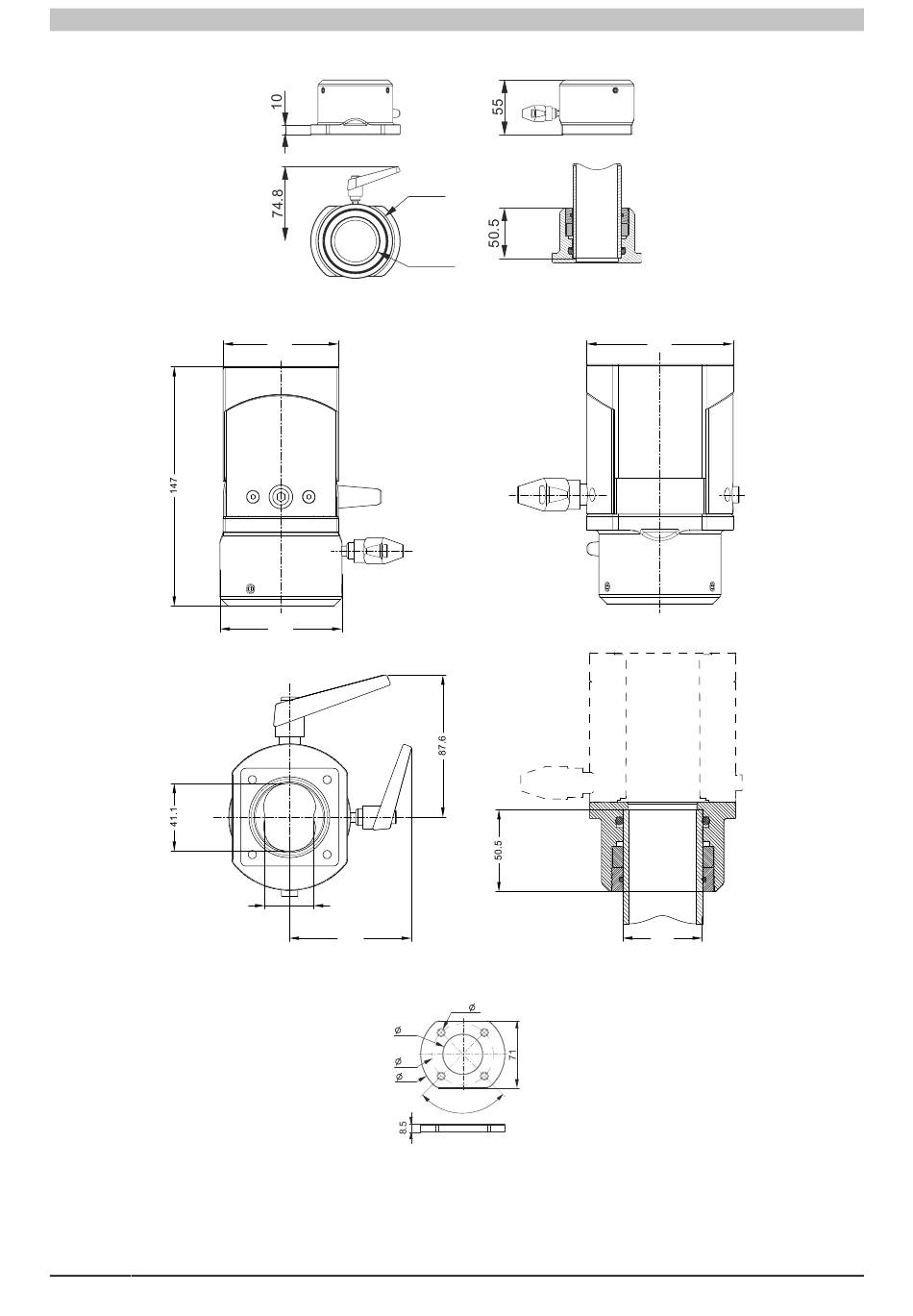

Rotary flange - Dimensions
ø 75
ø 48.5
Swivel-tilt flange - Dimensions
71 ø 90
ø 75
30.8
74.8 48.8
Adapter for Rittal flange - Dimensions
4x 7
42
65
90
4x 90 °
Figure 1: 5ACCFL00.0200-000 - dimensions
