Technical data

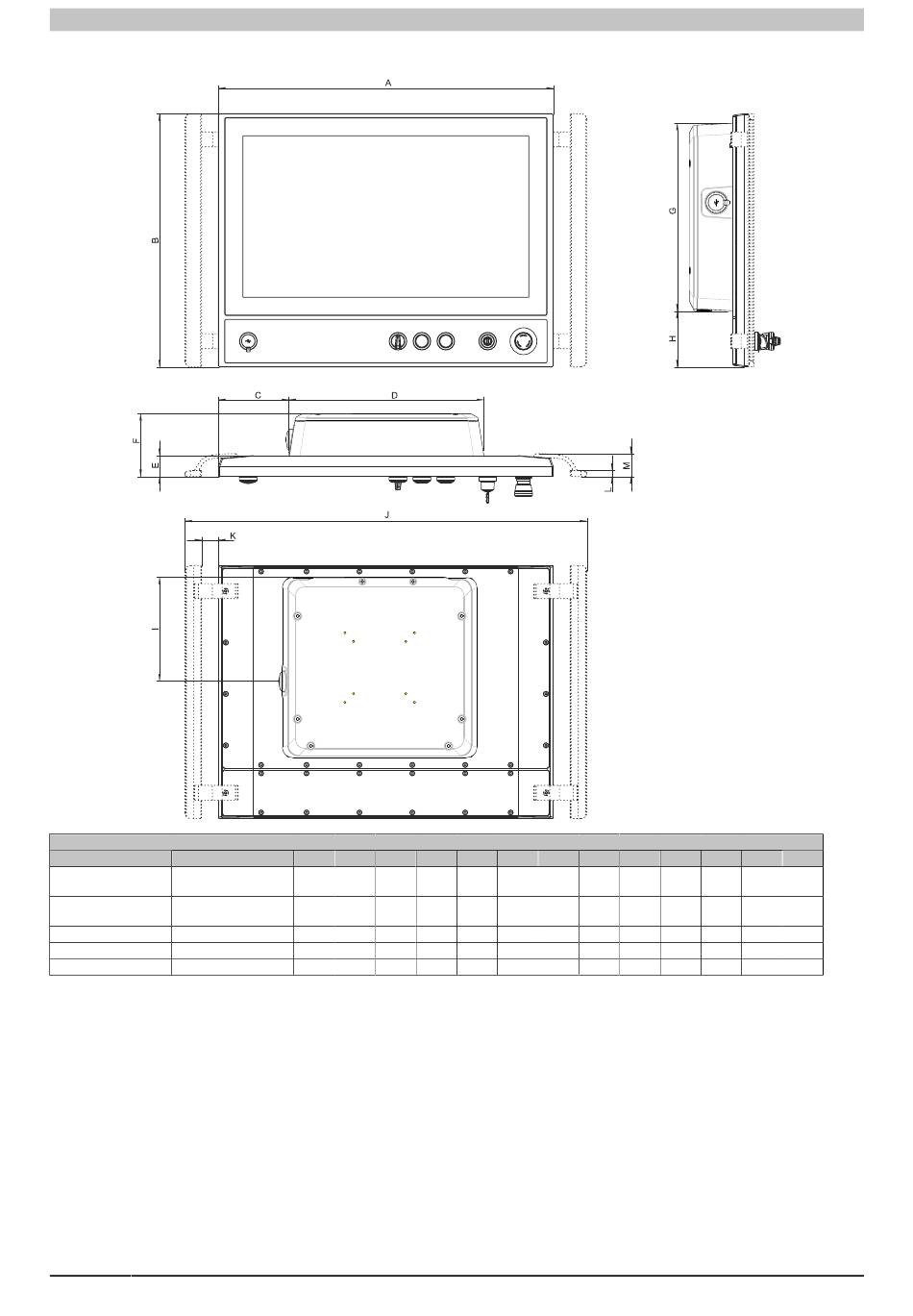

AP5230 IP54 VESA connection - Dimensions
Type Order number
15.6" multi-touch 5AP5230.156B-000
5AP5230.156C-000
18.5" multi-touch 5AP5230.185B-000
5AP5230.185C-000
21.5" multi-touch 5AP5230.215C-000
21.5" multi-touch 5AP5230.215I-000
24.0" multi-touch 5AP5230.240C-000
38
Panels (with expansion option)
A B C D E
433 349 76.5 280 35
494 385.5 107 280 35
560.5 423.5 140.3 280 35
352 632 36 280 35
617.5 454.5 168.8 280 35
F G H I J
95.3 259 84.8 149.5 545
95.3 259 103 149.5 606
95.3 259 122 149.5 672.5
95.3 259 226.3 149.5 464
95.3 259 137.1 149.5 729.5
