Technical data

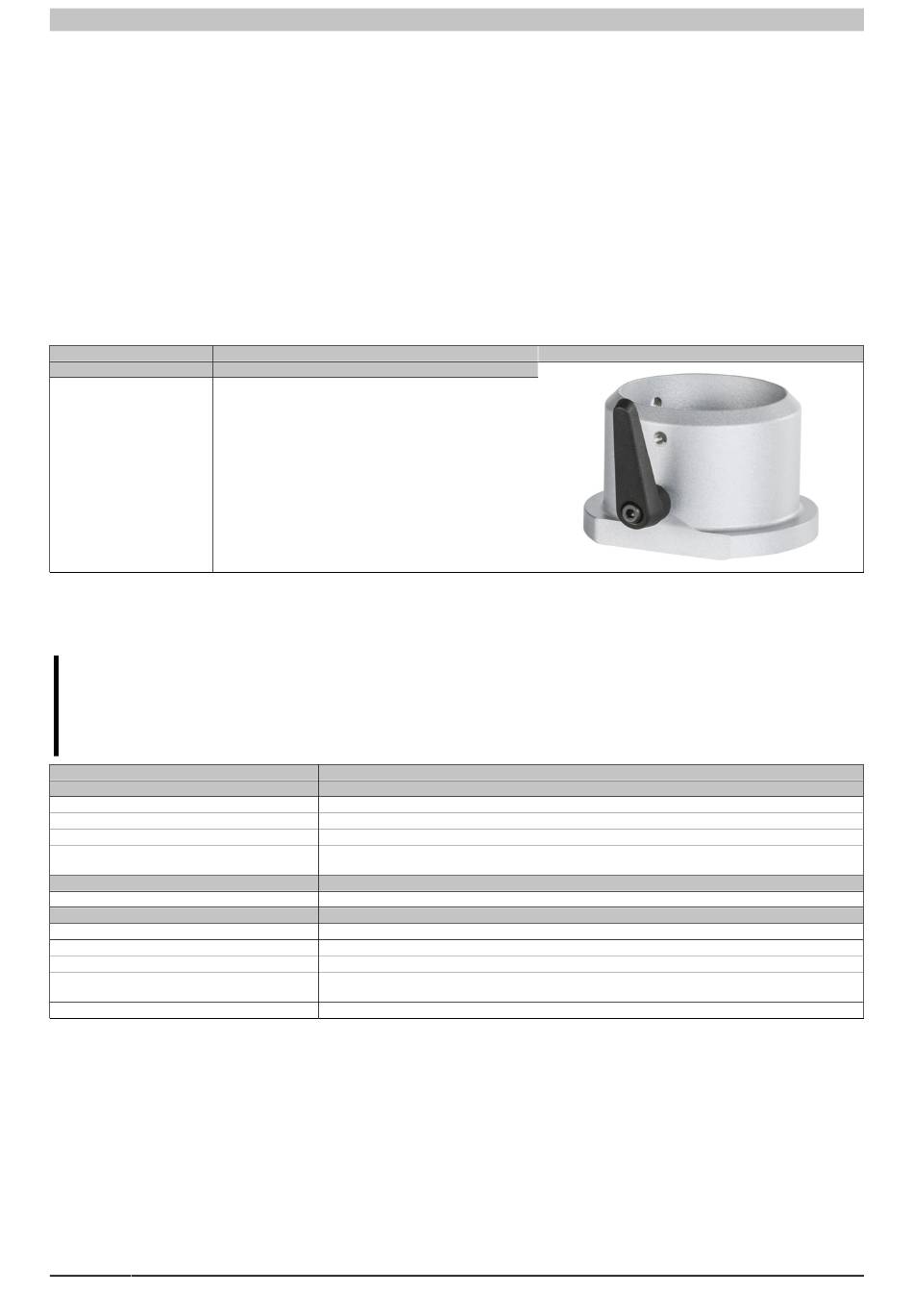

4.2.4 Flange

4.2.4.1 5ACCFL00.0000-000

4.2.4.1.1 General information
The rotary flange is installed on the mounting unit and designed for swing arm systems with 48 mm shaft diameter.
The range of rotation is -150° to +150°.
• Rotary flange
• Range of rotation ±150°
• Stepless adjustment of range of rotation
• For swing arm systems with 48 mm shaft diameter
4.2.4.1.2 Order data
Model number Short description
Flange
5ACCFL00.0000-000 AP5000 flange - Swing arm rotary flange - For swing arm mount-
ing unit
4.2.4.1.3 Technical data
Information:
The following specified characteristic data, features and limit values are only valid for these individual
components and may differ from those of the complete system. The data specified for the complete
system applies to the complete system in which this individual component is used, for example.
Model number
General information
Certifications
CE
EAC
UL
Operating conditions
Pollution degree per EN 61131-2
Mechanical properties
Material
Dimensions
Height
Diameter
Weight
122
Table 51: 5ACCFL00.0000-000 - Order data
Table 52: 5ACCFL00.0000-000 - Technical data
5ACCFL00.0000-000
Yes
Product family certification
cULus E115267
Industrial control equipment
Pollution degree 2
Aluminum (similar to RAL 9006), coated
55 mm
75 mm (outer diameter)
48.5 mm (inner diameter)
530 g
Automation Panel 5000 User's manual V2.11
