4.2.3.2.4 USB interface
The mounting unit is equipped with a USB 2.0 interface. This is equipped with a protective cover.
Caution!
IP65 protection can only be achieved if the USB protective cover is properly installed.
Warning!
USB peripheral devices can be connected to the USB interfaces. Due to the variety of USB devices
available on the market, B&R cannot guarantee their functionality. The functionality of USB devices
available from B&R is guaranteed.
Caution!
Due to the general PC specification, this interface must be handled with the utmost care with regard
to EMC, cable routing, etc.

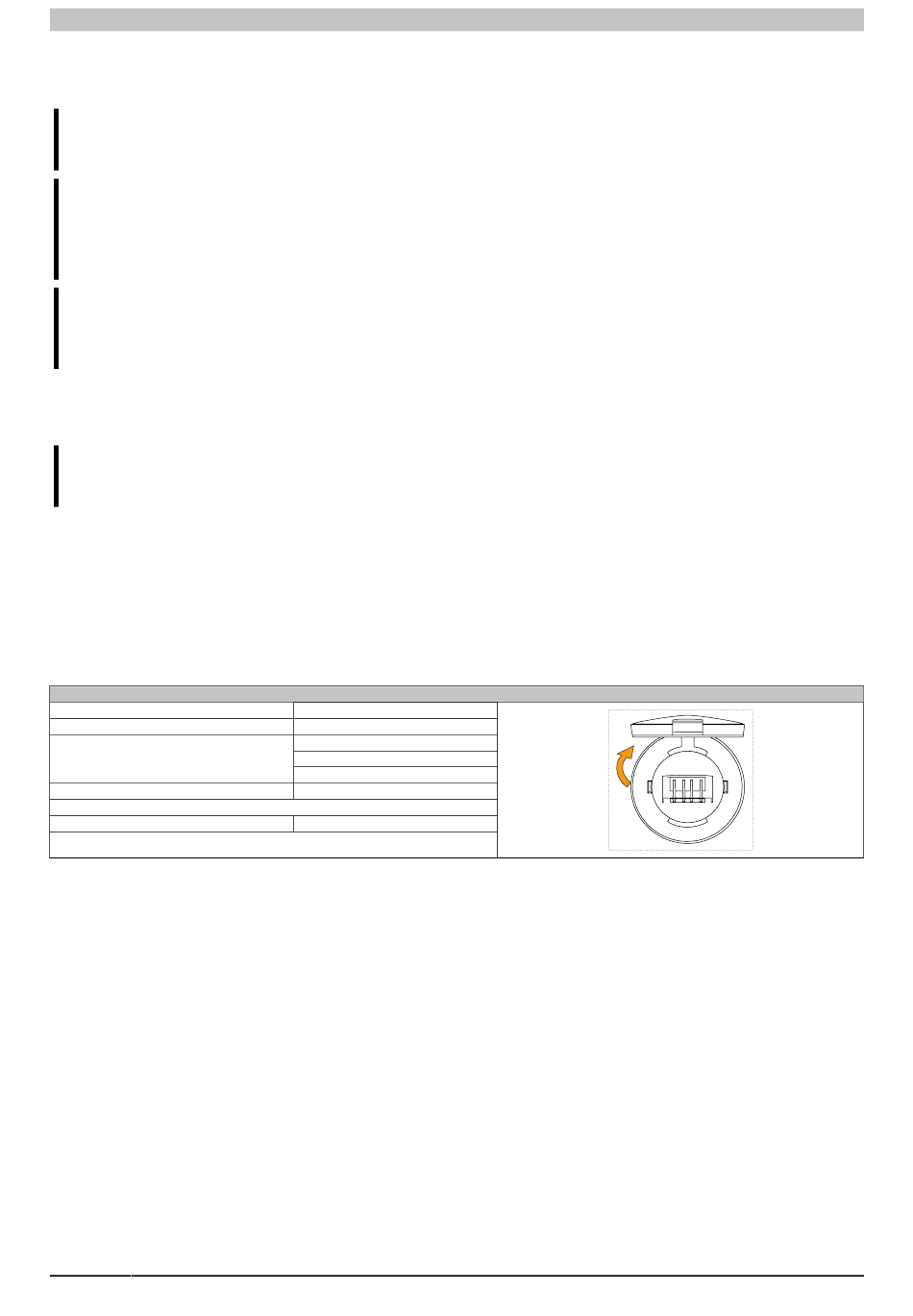

USB on mounting unit
The USB interface is available to the user for service purposes.
Information:
In the default configuration, the USB interface is the USB1 interface on the link module.
Depending on the transfer method (SDL or DVI operation), there are limitations regarding the transfer rate for
interfaces USB1 and USB2. For possible transfer methods, see section
Transfer method
SDL operation without USB cable
SDL operation with USB cable
Single-touch DVI operation
Multi-touch DVI operation
SDL3 operation
Standard
Variant
Transfer rate
Current-carrying capacity
2)
Cable length
USB 2.0
1) In SDL operation without USB cable (mode 1), the USB transfer rate is limited to USB 1.1.
In SDL3 operation: Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (30 Mbit/s)
In SDL4 operation: Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (150 Mbit/s)
2) The USB interface is protected by a maintenance-free "USB current-limiting switch" (max. 0.5 A).
114
USB type Max. cable length
USB 1.1 25 m
USB 2.0 5 m
USB 2.0 5 m
USB 2.0 5 m
USB 2.0 100 m
USB on mounting unit
USB 2.0
Type A, female
Low speed (1.5 Mbit/s)
Full speed (12 Mbit/s)
High speed (480 Mbit/s)
Max. 0.5 A
<3 m (without hub)
-
"Connection options" on page
1)
Automation Panel 5000 User's manual V2.11
21.
