Installation and wiring
5.3 Removing the mounting unit cover
1. Disconnect the power supply cable to the Automation Panel (disconnect the power cable!). Disconnect from
all sources and poles!
2. Carry out electrostatic discharge at the ground connection.
3. Remove the Torx screws (T25) indicated in the following figure. Insert a flat-blade screwdriver into the slot
from the side and remove the cover. Avoid causing irreparable damage to the gasket.
4. Replace the mounting unit cover with the 4 Torx screws removed earlier (tightening torque of the M5x12
screws: 2.5 Nm, for the M5x40 screws: 4.0 Nm). The cover must be installed correctly to ensure IP65 pro-
tection.
146

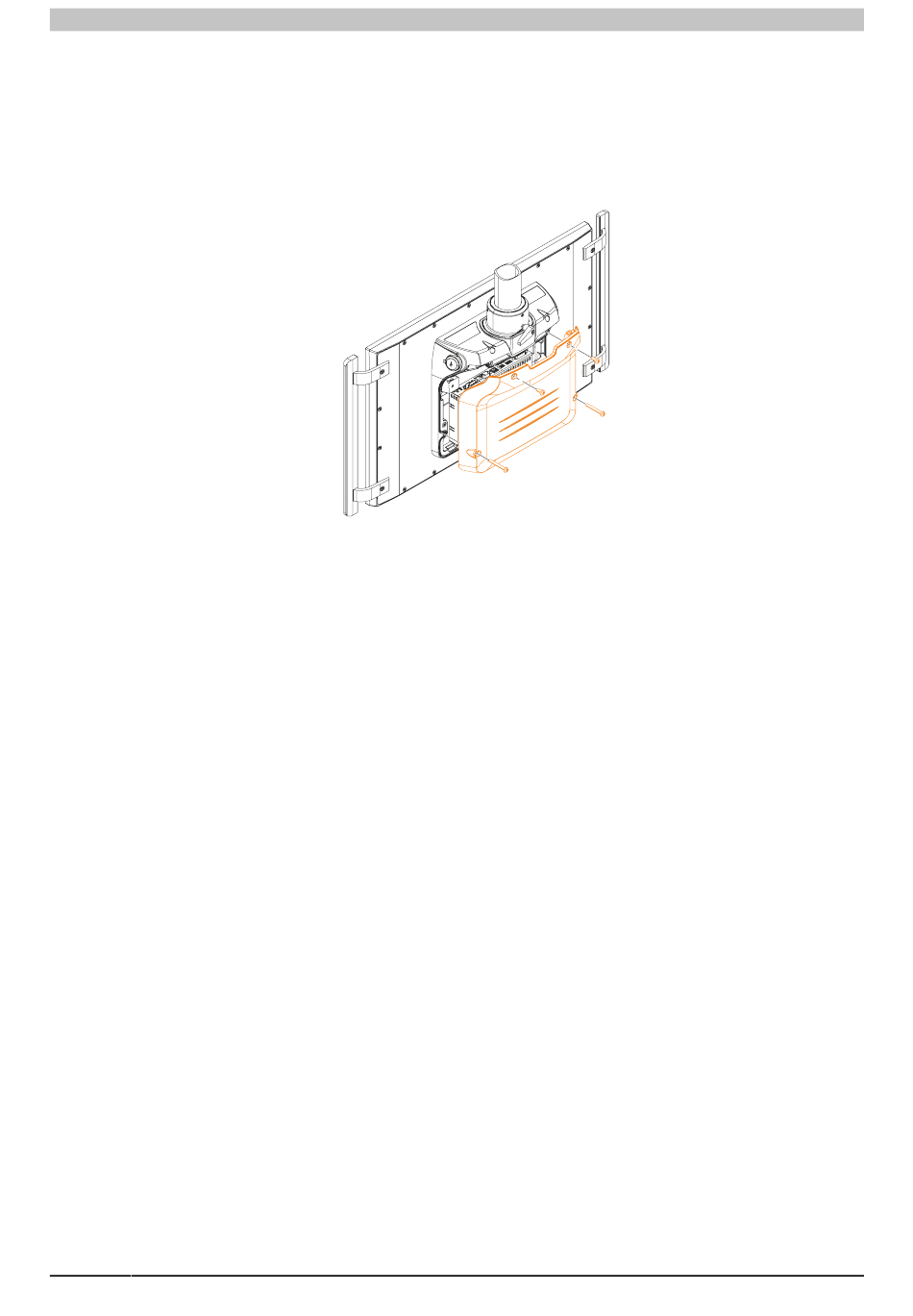

Figure 40: Removing the console cover
Automation Panel 5000 User's manual V2.11
