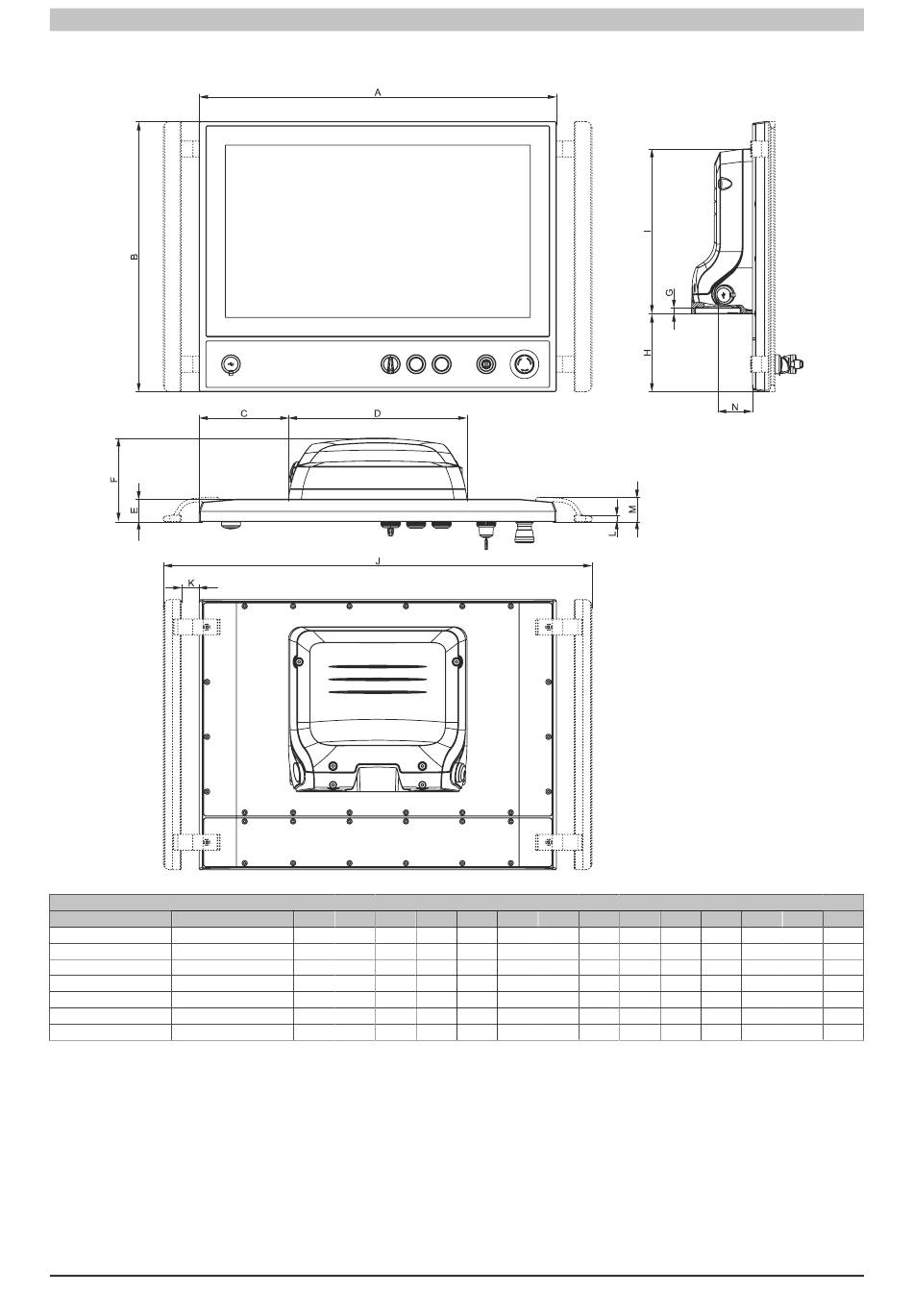

AP5230 with flange connection on bottom - Dimensions
Type Model number
15.6" multi-touch 5AP5230.156B-000
15.6" multi-touch 5AP5230.156C-000
18.5" multi-touch 5AP5230.185B-000
18.5" multi-touch 5AP5230.185C-000
21.5" multi-touch 5AP5230.215C-000
21.5" multi-touch 5AP5230.215I-000
24.0" multi-touch 5AP5230.240C-000
Automation Panel 5000 User's manual V2.11
Panels (with expansion option)
A B C D E
433 349 76.5 280 35
433 349 76.5 280 35
494 385.5 107 280 35
494 385.5 107 280 35
560.5 423.5 140.25 280 35
352 632 36 280 35
617.5 454.5 168.75 280 35
F G H I J
131 10 84.75 259 545
131 10 84.75 259 545
131 10 103 259 606
131 10 103 259 606
131 10 122 259 672.5
131 10 226.25 259 464
131 10 137.5 259 729.5
Technical data
K L M N
28 10 38.2 54.5
28 10 38.2 54.5
28 10 38.2 54.5
28 10 38.2 54.5
28 10 38.2 54.5
28 10 39.9 54.5
28 10 38.2 54.5
