4.1.3.2 Mounting orientations

Use the locking lever on the flange to set the angle of rotation of the Automation Panel 5000 between -150° and
+150° (variant with mounting unit 5ACCMA00.000x-000).
Caution!
After the angle of rotation has been set, the locking lever must be locked into position (approx. 5 Nm).
The screw in the locking lever is not permitted to be tightened. Fixing must be carried out exclusively
with the locking lever.

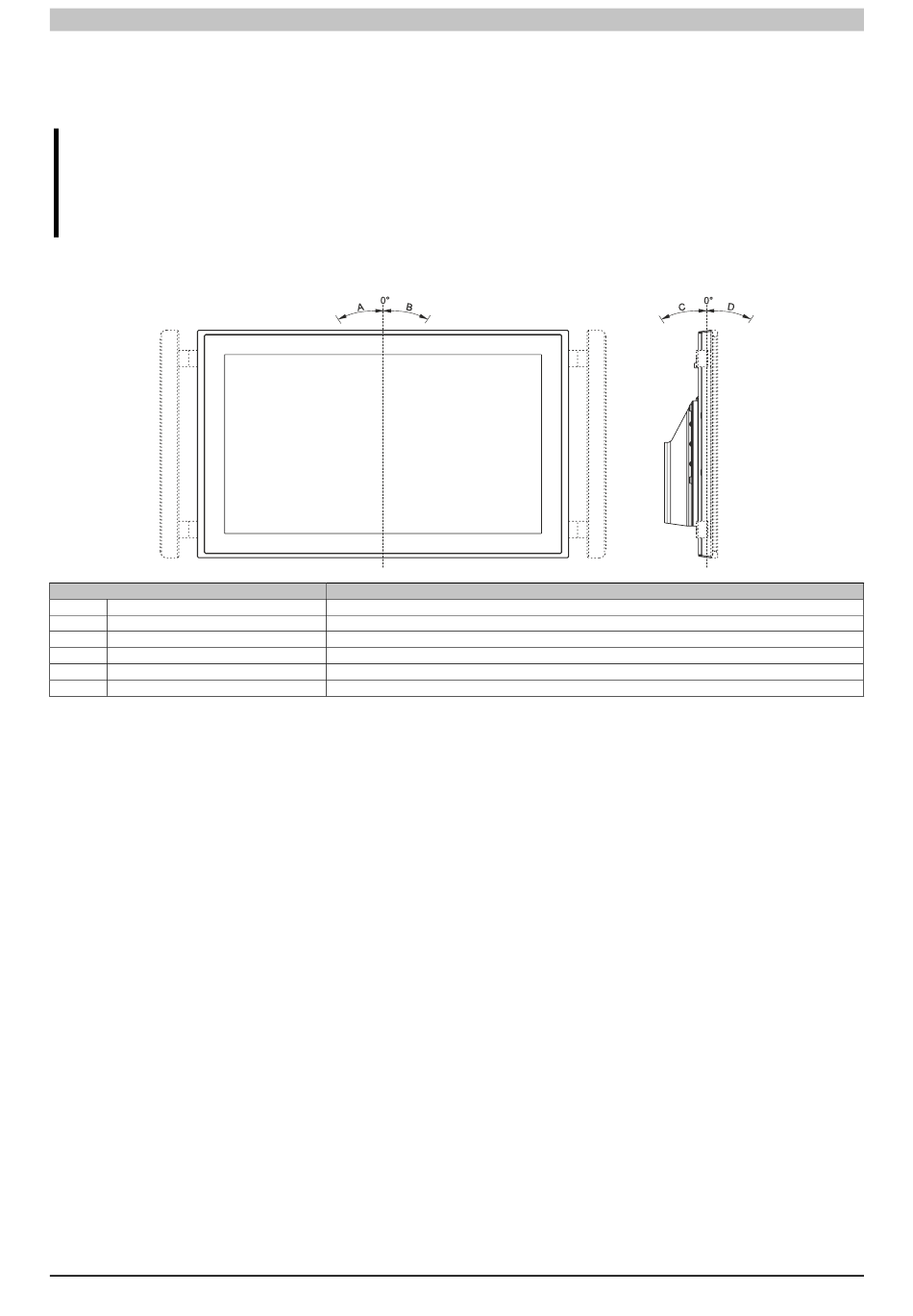

The following diagrams show the approved mounting orientations for AP5000 devices with VESA mounting unit
5ACCMA01.0100-000. These are only permitted to be installed as specified below.
Mounting orientation
A, B 0° to ±20°
A, B ±21° to ±45°
A, B ±46° to ±90°
C, D 0° to ±20°
C, D ±21° to ±45°
C, D ±46° to ±90°
Automation Panel 5000 User's manual V2.11
Ambient temperature limitation
None
5°C.
10°C.
None
5°C.
10°C.
Technical data
